TUF-2000F Ultrasonic Liquid Flow Meter DN50-700mm Fixed Clamp on flowmeter

Model:TUF-2000F
Brand:Graigar
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter
Label:flow meter , TUF-2000F , Ultrasonic Flowmeter
Price: US $369 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:04 Dec, 2021

Product Description

Feature

High Accuracy

1%

Wide measuring range

Several types transducer for selection, pipe size from Dn15mm to Dn6000mm

High Reliability

Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.

Strong Anti-interference

Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high

 voltage line etc.

Powerful Recording Function

Automatically record the following data:

1. The totalizer data of the last 512 days/128 months/10 years

2. The time and corresponding flow rate of the last 6 4 times of power on and off events

3. The working status of the last 32 days

Support Heat Measurement

Connect the temperature transducer ,can finish the heat/energy measurement



Item  Performance and Parameter
 Convertor  Principle  transit-time ultrasonic flowmeter
 Accuracy  Flow: over 1%-2%(battery-powered supply over ±2% ),Heat: over ±2%,Repeatability: over 0.2%
Operation Support 4 keyboards magnetic bar/simulation keyboard software
 Signal Output  1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
 1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
 1 way Relay output
 Signal Input  3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
 Connect the temperature transducer Pt100, can finish the heat/energy measurement
 Data interface  Insulate RS485 serial interface, upgrade the flew meter software by computer, support the MODBUS, METER-BUS etc.
 Other Function  Automatically remember the previous flew/energy data of 512 days,  128 months and 10 years
 Automatically remember the previous flew/energy data of 512 days working condition and check it
 Automatically remember the previous 32 times power on/off time and flow rate

 Special Cable  Twisted-pair cable, generally, the length under 50 meters;Select the RS485 communication. The transmission distance can over 1000m.
 Pipe Condition  Pipe Material  Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
 Pipe Diameter  15---6000mm
 Straight length pipe  Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
 Measuring Medium  Type of Liquid  Water (hot water, chilled water, city water, sea water, waste water, etc.);  Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);  Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; So ents and other liquids
 Temperature  Standard Transducer: -30--90℃; High-temperature transducer: -30--140℃
 Turbidity  No more than 10000ppm and less bubble
 Flow rate  0--±7 m/s
 Working Environment  Temperature  Main Unit: -20--60℃
 Flow transducer: -40--160℃;
Temperature transducer: according to the customer’s demands.
Humidity Main Unit: 85% RH; Flow Transducer: Ip67
Power Supply DC  24V or AC  85-264V
Power Consumption 1.5W

TS-2 : DN15-100mm  , temperature -40~90

TM-1: DN50~DN700mm,  temperature -40~90 ( Standard Transducer)

TL-1:  DN300~DN6000mm ,  temperature -40~90

TS-2-HT: DN15~DN100mm ,   temperature -40~160

TM-1-HT: DN50~DN1000mm,   temperature -40~160



TL-1-HT: DN300~DN6000mm, temperature -40~160

Edit by Mina


Product Image

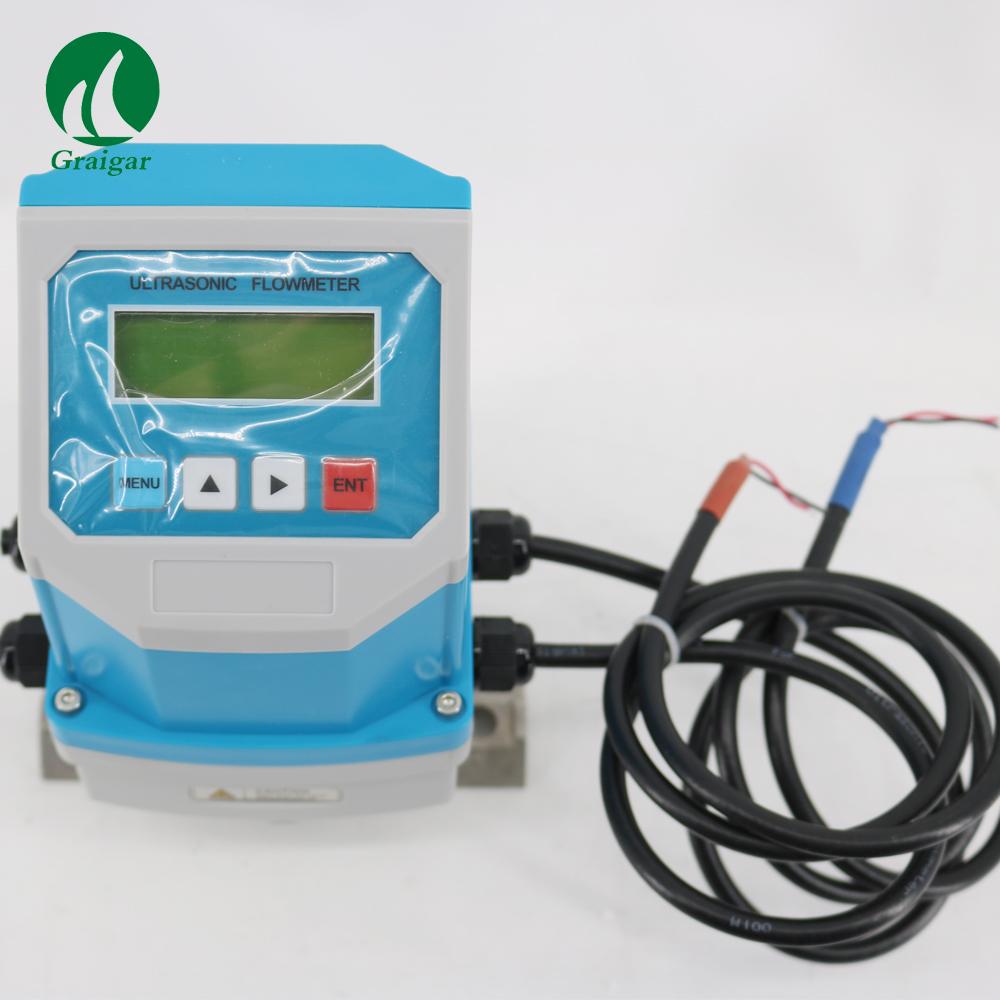

TUF-2000F Ultrasonic  Liquid  Flow Meter  DN50-700mm Fixed Clamp on flowmeter 1
