TUF-2000P Ultrasonic Liquid Flowmeter DN15mm-6000mm with Printing Function

Model:TUF-2000P
Brand:Graigar
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter
Label:Flow meter , Digital Flow Meter , TUF-2000P
Price: US $450 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:19 Sep, 2022

Product Description



TUF-2000P Ultrasonic Liquid Flowmeter Digital Flow Meter DN15mm-6000mm with Printing Function





TUF-2000P Portable Ultrasonic Flow Meter realizes the non-contact measurement.

It is ideal for flow surveys and closed-pipe application where non-invasive measurement of liquids is required.



[ Feature ]

High Accuracy measuring

Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%

Non-intrusive measuring

Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.

Wide measuring range

Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm

Chinese & English menu

Chinese & English display, easy to operate.

Built-in printer

Built-in mini thermal printer with instant and timing print function

Built-in data logger

Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications

Multi-signal input &output

Multiple signal interface easy for input and output signals



[ Main Feature ]





Items

Specifications

Main unit

2 line x 20 character LCD with backlight

Working temperature: -25--60℃

Mini thermal printer with 24 line character output

4x4+2 pushbutton keypad

RS-485 interface for networking

Signal input & output

1 channel 4-20mA output

1 channel OCT output

1 channel relay output

3 channel 4-20mA input

Medium

Water (hot water, chilled water, city water, sea water, waste water, etc.);

Sewage with small particle content;

Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);  Chemicals (alcohol, acids, etc.);

Plant effluent; Beverage,

liquid food; Ultra-pure liquids; Solvents and other liquids

Flow rate Range

0~±10m/s

Accuracy

Better than ±1%

Battery

Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation

Power Consumption

1.5W

Power supply

Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V

Weight & Dimensions

2.5kg ;  225*180*67mm:

Remarks

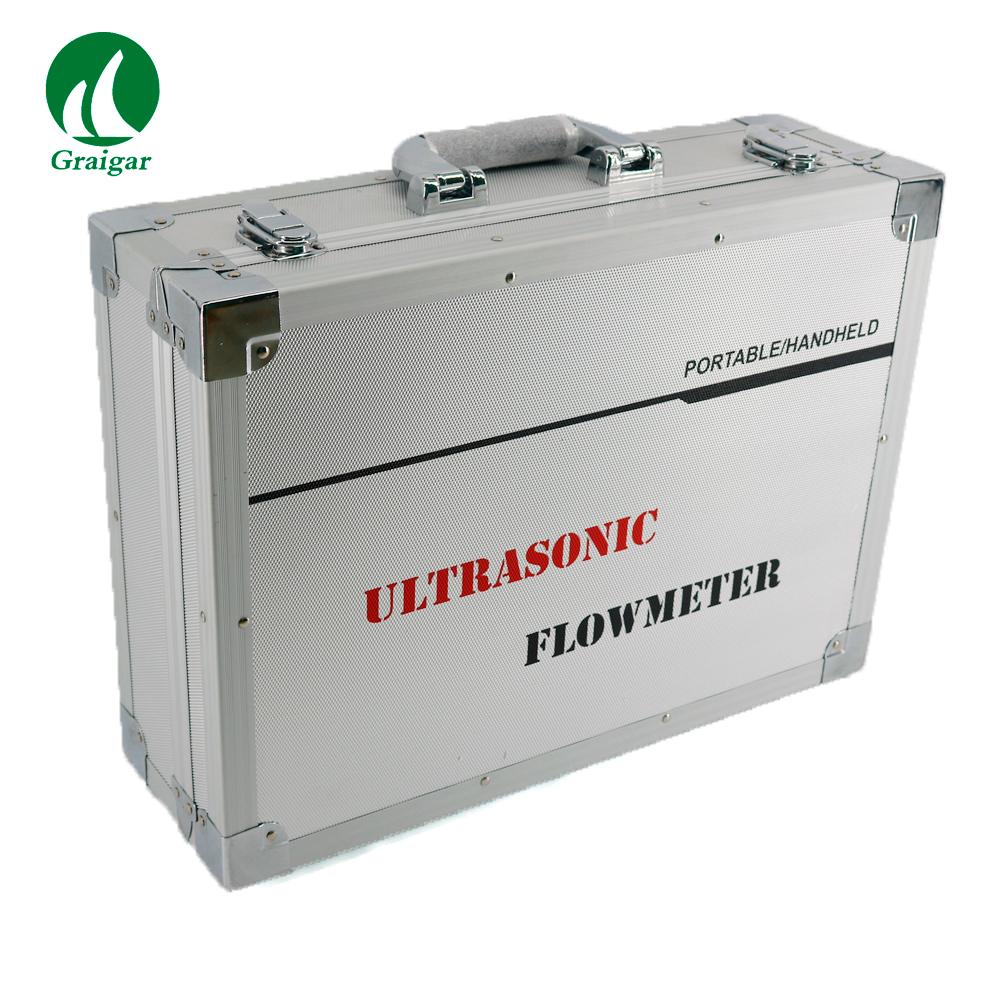

With a high strength carrying case suitable for normal and harsh environment
