Pad printer with pad-clean device P1-410CP

Model:P1-410CP
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , pad press
Price: US $3236 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:17 Oct, 2023

Product Description

One color pad printer with automatically pad-clean device //Structure

Working table

Standard working table with 3-size adjustment

Ink supply system

Closed -type system

Pad treatment  Automatic rubber pad chean device

Plate type

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , simultaneously pressing

One color pad printer//Usage and characters

Guide

  • Installing pad clean device to increase the pad printing quality;
  • With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
  • With coin aluminum structure ensure more stabilization and long life.
  • Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
  • Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

One color pad printer //Parameter

Technical parameters

P1-408CP

  • Max. steel plate: 100 ×200mm;
  • Ink cup size: Ф90mm;
  • Max. printing area :80×80 mm ;
  • Printable color quantity:1;
  • Max. printing speed: 1300 pcs/h。


P1-410CP

P1-412CP

  • Max. plate size: 100×250mm;
  • Ink cup diameter: Ф90mm;
  • Max. printing area: 80×130mm;
  • Max. printing speed: 1100pcs/h;
  • Printable color quantity:1
  • Max. plate size: 100×300mm;
  • Ink cup diameter: Ф90mm;
  • Max. printing area: 80×170mm;
  • Max. printing speed: 1000pcs/h;
  • Printable color quantity:1

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package size:0.970×0.900×1.480m;
  • Gross weight: 126KG;
  • CBM: 1.2921

H.S.Code

8443198000

Certificate

CE

One color pad printer //Advantage

Function

  • Automatically pad clean device for more high printing quality;
  • Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
  • T-slot structure, easy installation of fixtures and products;
  • Hand pick and place workpiece, operating more handy;
  • PLC program control, the movement is more accurate and reliable;
  • Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
  • Equipped with four counters, can effectively measure the number of products;
  • Structure using die-casting aluminum, lightweight and solid.
  • Independent Rubber pad up and down stroke and speed adjustment function;
  • Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
  • Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
  • Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
  • World famous pneumatic components to ensure the long service life of machine;
  • Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

Product Image

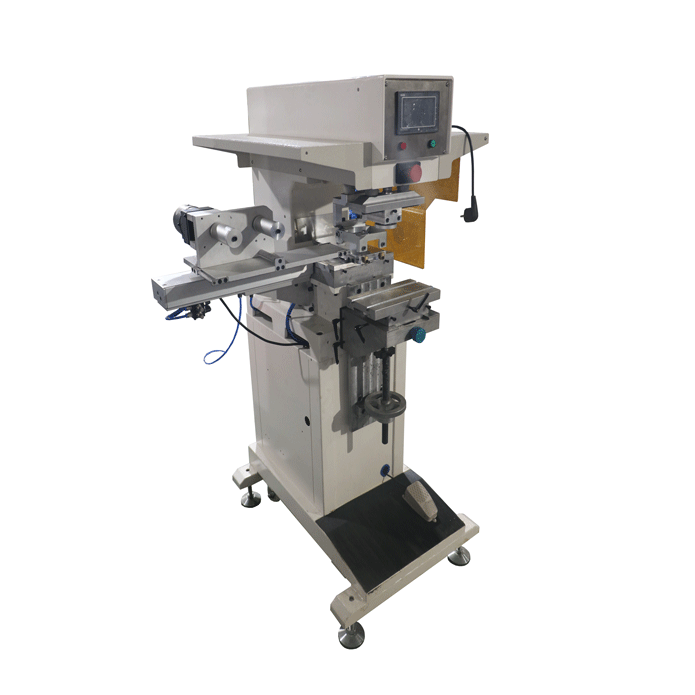

Pad printer with pad-clean device P1-410CP 1
Img 1

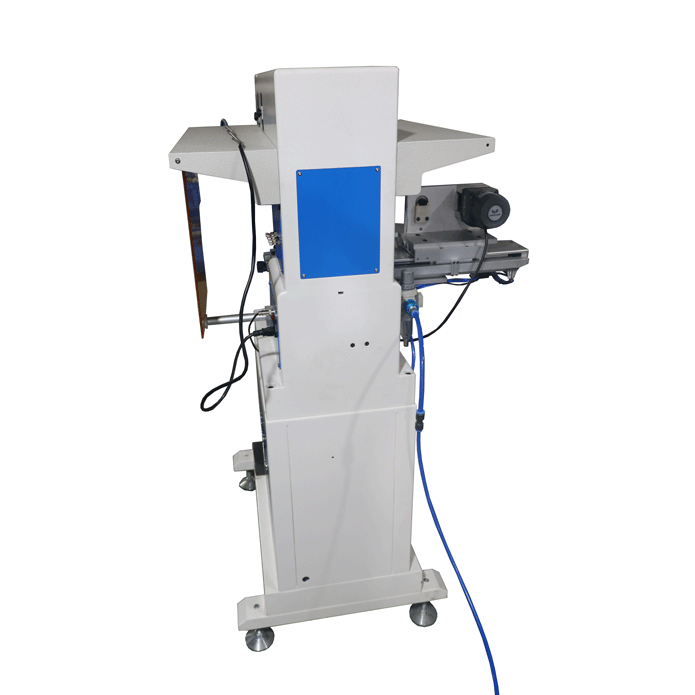

Pad printer with pad-clean device P1-410CP 2
Img 2
Pad printer with pad-clean device P1-410CP 3
Img 3
Pad printer with pad-clean device P1-410CP 4
Img 4
Pad printer with pad-clean device P1-410CP 5
Img 5
