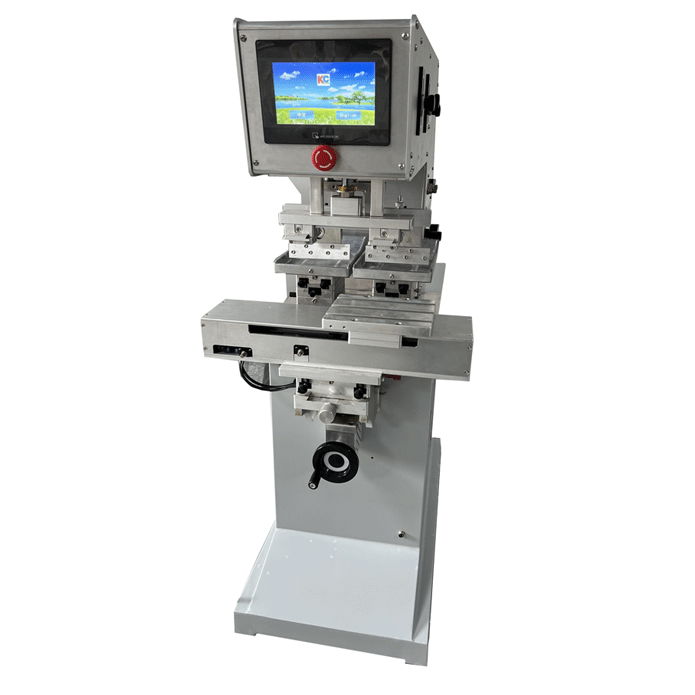

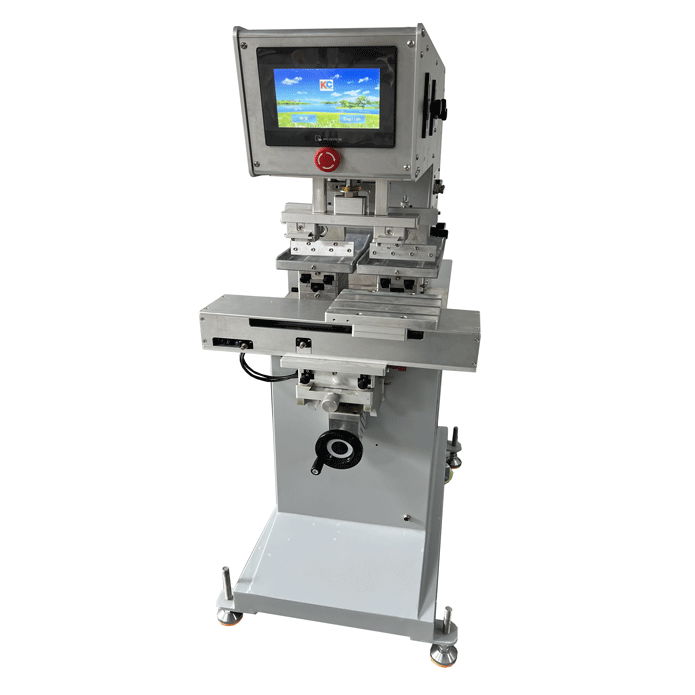

Two colors pad printer with shuttle //Structure

Working table

Two stations Shuttle-type working table

Shuttle stroke

200mm

Ink supply system

Open-type inkwell system

Plate type

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

 Two colors pad printer //Usage and characters

Guide

• Shuttle workbench, printing a higher precision, a fixture a product printing;
• Suitable for large product double pad printing;
• Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
• Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
• Automatically balanced scraping ink technology, scraping ink clean and easy to change;
• Shuttle stroke for 200 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
• Electromagnetic valve and cylinder with the German and Taiwan products

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with shuttle//Parameter

Technical parameters

P2-606

• Max. plate size: 150×150 mm；
• Max. worktable area: 170×200mm；
• Max. printing speed: 850pcs/h；
• Printable color :2;
• Max printing area:130×130mm；
• Shuttle stroke: 200mm.
• Height adjustment of table: 200mm.

• Max. Plate size: 150 X 250 mm ;
• Max. Worktable area : 160 X 200 mm ;
• Max. Printing area : 130×220mm ;
• Max printing speed : 700pcs/h ;
• Printable color :2;
• Stroke of table shuttle: 200mm.

• Max. plate size : 150 X 300 mm ;
• Max. worktable area : 160 X 200 mm ;
• Max. printing area : 130×270mm ;
• Max printing speed : 700pcs/h ;
• Printable color :2;
• Stroke of table shuttle: 200mm

Works supply

• 110V-220VPower supply；
• 5-7Bar Compress air；

Package list

• Package dimension:1000×670×1500mm
• Gross weight: 155kg
• CBM: 1005

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with shuttle//Advantage

Function

• Microcomputer program controlling operating technique ;
• Streamline design ensure dexterous Appearance impressions;
• Coin aluminum structure frame coated Gross-Green color paint;
• Shuttle working table installed to get more precision overprint;
• Independency pressure adjustment of pad press-printing and picking up ink;
• Opened inkwell to store and coating ink , easily adjust the character of pad ink.
• Automatism digital count function;
• Double colors pad printing with drying through blowing hot air:
• The function of blade only move front to back for mixing ink ;
• Automatics balance blade to remove the ink completely;
• Widen ink-tray installed to print more larger dimension.
