Plane And Round Heat Transfer Machine

Model:TH-700R
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Printing machine , transfer machine , heat press machine
Price: US $6280 / Set
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:17 Aug, 2022

Product Description

Description:

 The flat and round heat transfer machine worktables are driven by motors. With touch screen, PLC and dense screws.

 Heat transfer machine with beautiful elegant appearance, it is mainly used for premium toy, stationery, wood, premium makeup and commodity surface of decoration. Special for plastic like ABS, PP, PE, PS, AS, PVC, acrylic etc. There are shapes: plane, circular surface, surface, conical surface.

 Scope round heat transfer products such as: plastic cups, cosmetic bottles, glass bottles, bottle of transfer.

Features:

1. An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.

2. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3. Stamping pressure, temperature, hot pressing time is adjustable.

4. Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.

5. Work table can swing around a center of rotation of the workpiece for rolling without slipping.

6. Automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

7. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

8. The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9. The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

10. The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.

11. Equipped with emergency stop safety devices to protect the safety of the operator.

Parameters:


PLC Plane and Round Heat Transfer Machine

Max transfer area

650*380mm



Work Table size

450*700mm



Transfer roller length

   40mm

Heating power

  3000W

Stamping head adjustable stroke

≤70mm hot head outer diameter 100mm inner diameter of 80mm

Max stamping diameter

       φ300mm

Stamping temperature range of options

from room temperature to 280 degrees Celsius

Workpiece taper Range

5-20 degrees

Stamping pressure range of options

≤2500kgf (7bar)

The maximum printing speed

350pcs/hr

Swing cylinder stroke adjustment range

≤125mm



Power

220/380V 60/50Hz

Air consumption

165L/min

Dimensions

1530*950*1510mm



Weight

360kg

Package Dimensions

217*105*161cm



Package Weight

370kg





Product Image

Plane And Round Heat Transfer Machine  1
Img 1

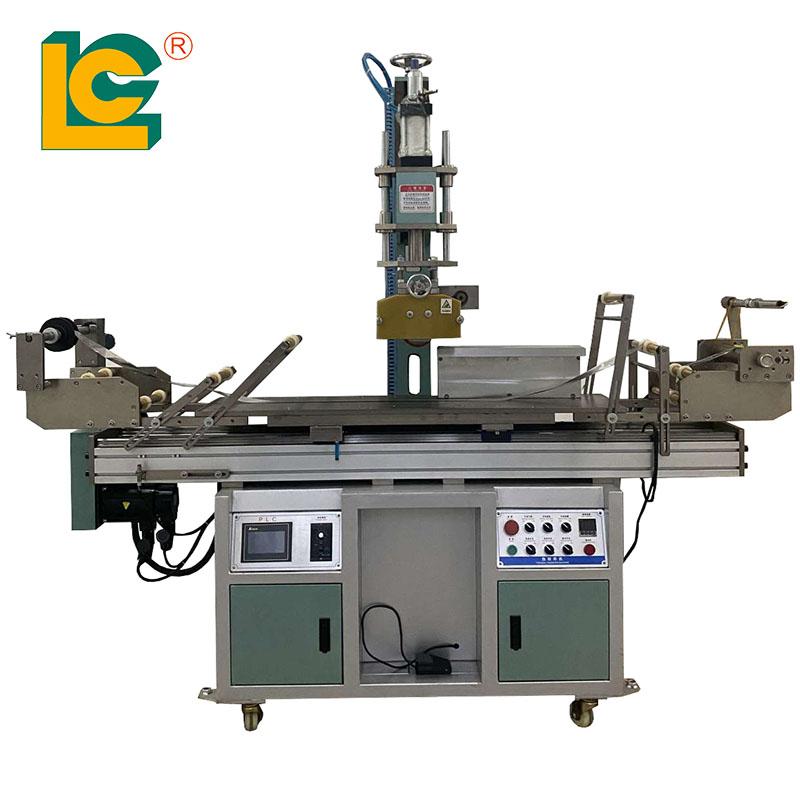

Plane And Round Heat Transfer Machine  2
Img 2
Plane And Round Heat Transfer Machine  3
Img 3
Plane And Round Heat Transfer Machine  4
Img 4
Plane And Round Heat Transfer Machine  5
Img 5
Plane And Round Heat Transfer Machine  6
Img 6
Plane And Round Heat Transfer Machine  7
Img 7
Plane And Round Heat Transfer Machine  8
Img 8
