Model: | YG SSF |
---|---|
Brand: | UNISUN |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Filters |
Label: | sintered filter , filter carbridge , filter cup |
Price: |
US $1.5
/ pc
|
Min. Order: | 1 pc |
customized Sintered Filter Elements / Filter Baskets and Cup Filter for different use

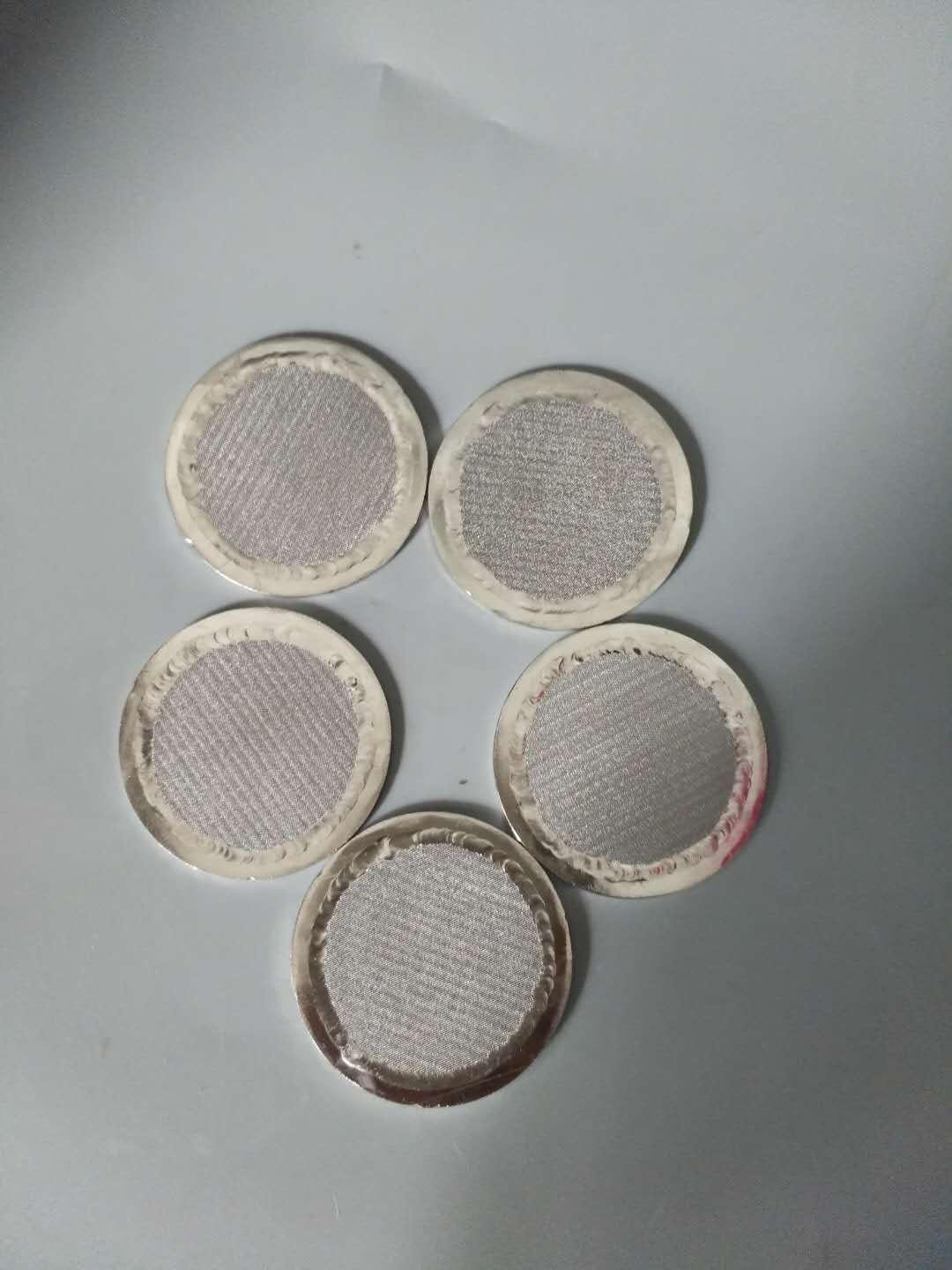

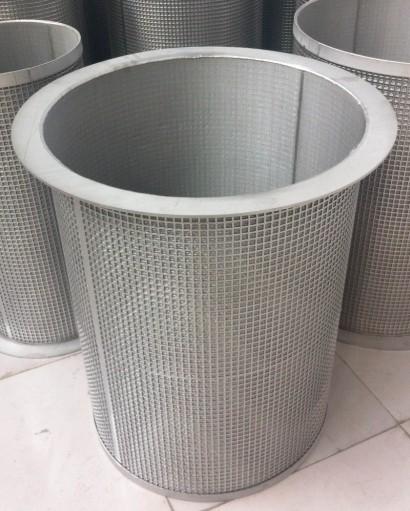

sintered wire cloth can be made into different shape filter elements, such as filter tube, cone-shape filter, filter baskets with handles or no handles, cartridge filters, disc filters, cup filters, cap filters, and filter plate.
They are all shaped by moulds through high temperature sintering process, with metallic capacities, such as noise reduction, hot resistance, heat conduction, and high strength. Due to the stainless steel materials, the filter elements has the features of easy to welding and corrosion resistance.
Sintered Filter Elements have different aperture, porosity and filter rating.
Characteristic:
1. High strength and good rigidity
With high mechanical strength and compressive strength, processing, welding and assembly performance is good, easy to use.
2. Uniformity and stability
For all the filtering accuracy, uniform and consistent filtration performance can be achieved, and the mesh does not change during use.
3. Use a wide range of environments
Can be used for -200 °C ~ 600 °C temperature environment and acid-base environment filtration.
4. Excellent cleaning
The countercurrent cleaning effect is good, can be used repeatedly, and the service life is long (can use countercurrent water, filtering, ultrasonic, melting, baking and other methods to clean)
Application:
We are making by order, so any layer can be provided.
Other details
Product name | customized Sintered Filter Elements / Filter Baskets and Cup Filter for different use |
Filter rating | 0.2-200um |
Brand | Unisun |
Material | SS201/202/304/316/304L/316L,brass,etc. |
Specification | 10--500mesh or according to require |
Thickness | 0.6--1.8mm |
Wire dia | 0.03--0.7mm |
Diameter | Can be customized |
Filter shape | Round,oblong,oval,etc |
temputure | -200 °C to 1000 °C |
Payment | T/T, LC etc |
Package |
inside with bubble wrapping paper, total packaged in wooden boxes, or carton box. Or according to customer |
Delivery Time | 15-20 days |
Package
Other type
