JACI MOULD for Commodity mould, Product range:strage box,containers mould,food box mould ,laundry basket mould ,drawer mould ,icebox mould ,kitchen wares mould ,houseware product mould ,dust bin mould .

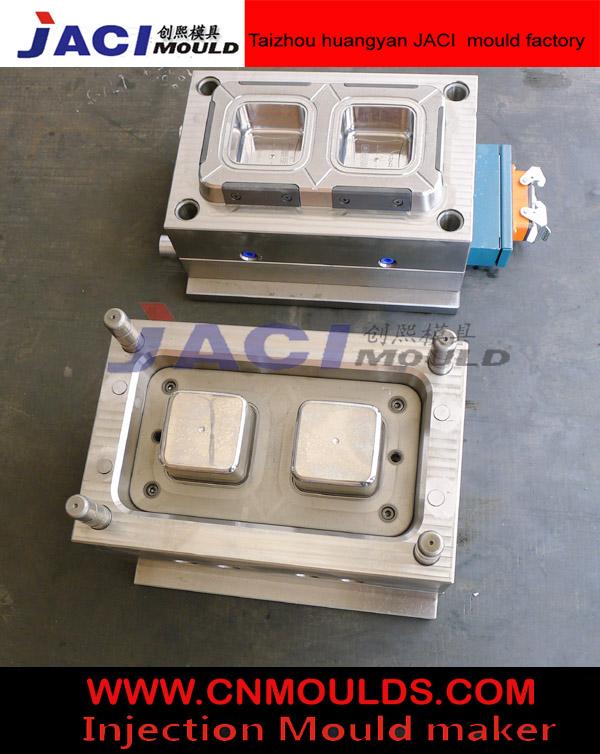

Product name: box mould
Mould cavity:2cavity
Mould size: 600*400*300mm
Suitable machine380T Haitian machine
Mould material:DIN1.2311
Mould base:S50C Made in China
Mould life:500k
Runner system:2points Yudo hot runner point gate
Ejection system:ejector block
Mould running: product pick up with robot
Injection cycle time:35seconds
Delivery time:50days
The country of mould'client:Israel
Suitable machine:1200T Haitian machine
Mould material:DIN1.2311
Mould base:S50C Made in China
Mould life:500k
Runner system:2points Yudo hot runner point gate
Ejection system:ejector block
Mould running: product pick up with robot
Injection cycle time:35seconds
Delivery time:50days
The country of mould'client:Israel
