| Model: | - |
|---|---|
| Brand: | JACI mould |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Mold |
| Label: | Crate Mould , Plastic Injection Cr , Taizhou Mould Maker |
| Price: |
US $5000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:07 Mar, 2018 |

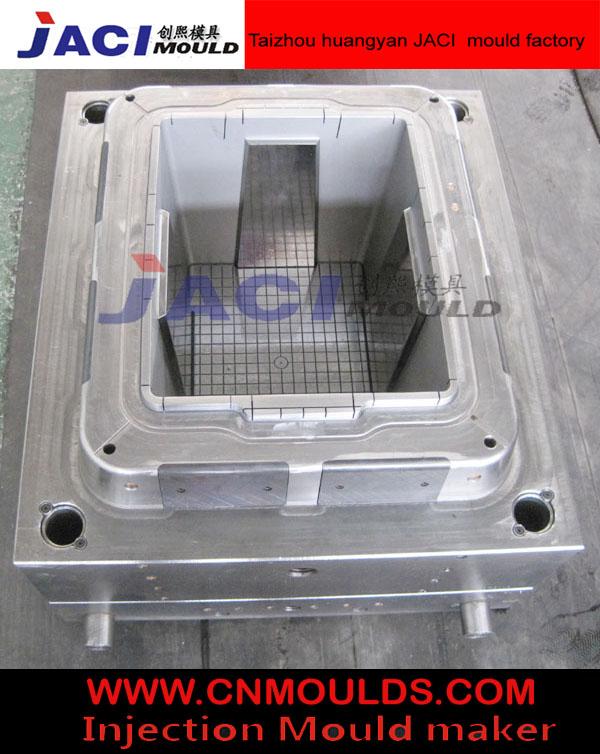

Product name: storage box mould
Product description:Seal proof systen design
Mould cavity:1cavity
Mould size:480*480*680mm
Suitable machine:380T haitian machine
Mould material:DIN1.2738,core top using Coper Berylium
Mould life:2M
Runner system:1points YUDU hot runner ， point gate
Ejection system:stripper plate
Mould running:Full automaticity
Mould features:
The application of Copper Beryllium leads to best cooling effect
Stroke switch controls ejection process precisely
Oil and water integrator is more convenient for application and operation
Copper guide bush, abrasion resistance and prolong the mould life
Injection cycle time:22seconds(high speed injection machine)
Delivery time:45days
The country of mould'client:South Africa
