Application

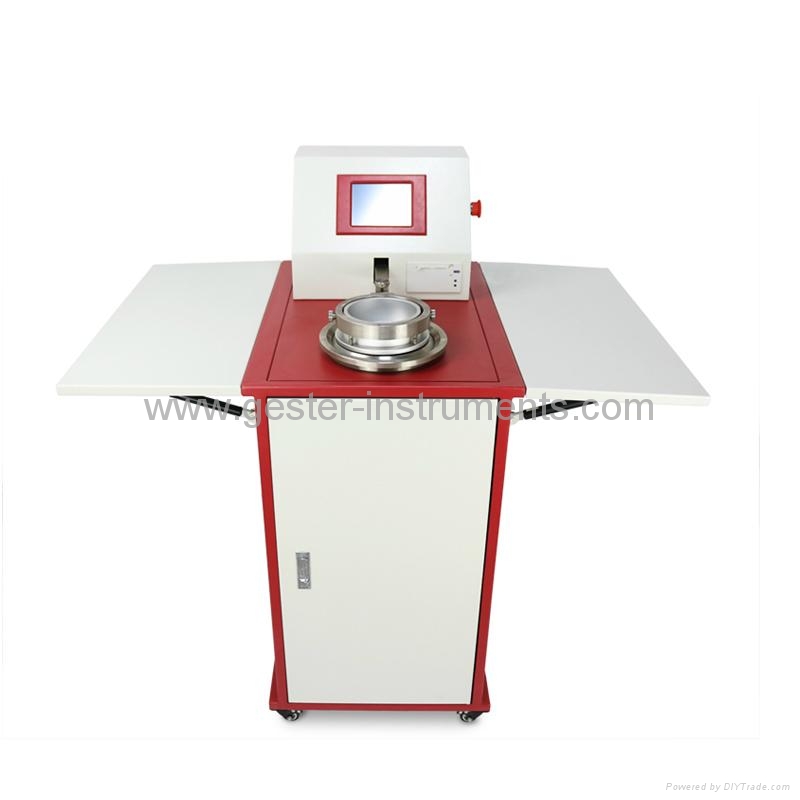

To test the air permeability of various woven fabrics,
knitted fabrics, non-woven fabrics, industrial filter
materials etc.

Feature

• High precision import pressure and pressure differential sensor to ensuring the accuracy of data.
• Microcomputer processing without manual calculation and the test result can displayed directly.
• Equipped with thermal printer to print the experiment result.
• Built-in 7 testing units: mm/s、m3/m2.min、cm3/cm2.s、m3/m2.h, cfm, L/dm2.min, L/m2.s
• Touch Screen Control as well as operating by connect to the computer
• Testing arm was pneumatic controlled and can press and put up automatically

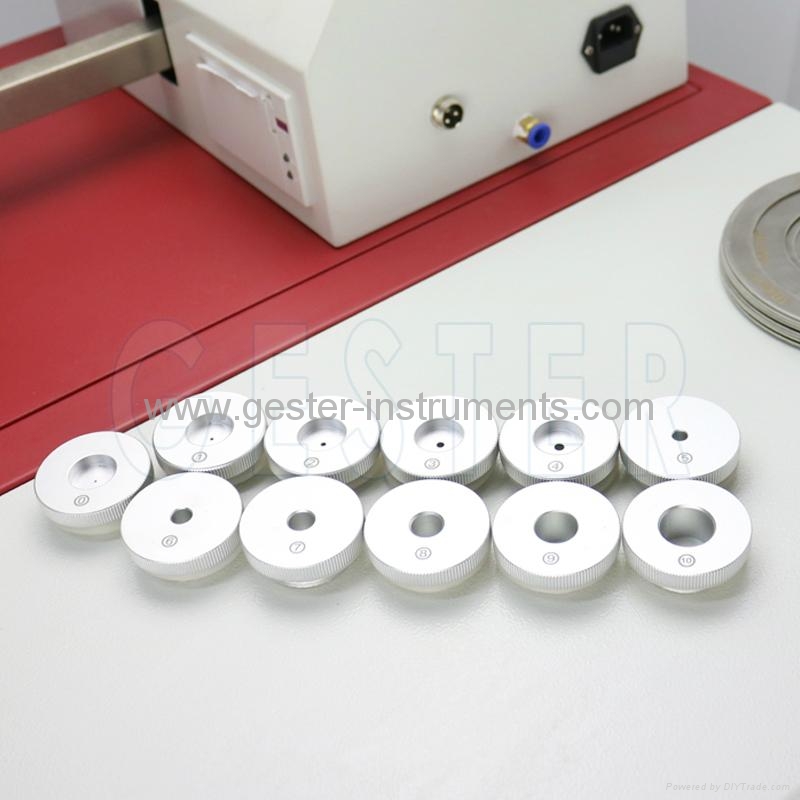

• Equipped with 11 nozzle with different calibers to meet different specimens.
• Change the nozzle manually.

Standards

GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JISL1096, AFNORG
07-111, EDANA140.1

Specification
