D1001A  5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

Optional Model:

D1001A-26/34, (Black Color, 125khz EM ID wiegand 26  and Wiegand 34 adjustable )

D1001A-M26/34,(Black color ,13.56mhz mf wiegand 26 and wiegand 34  adjustable)

Specification

Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature: -25º C to 75º C

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

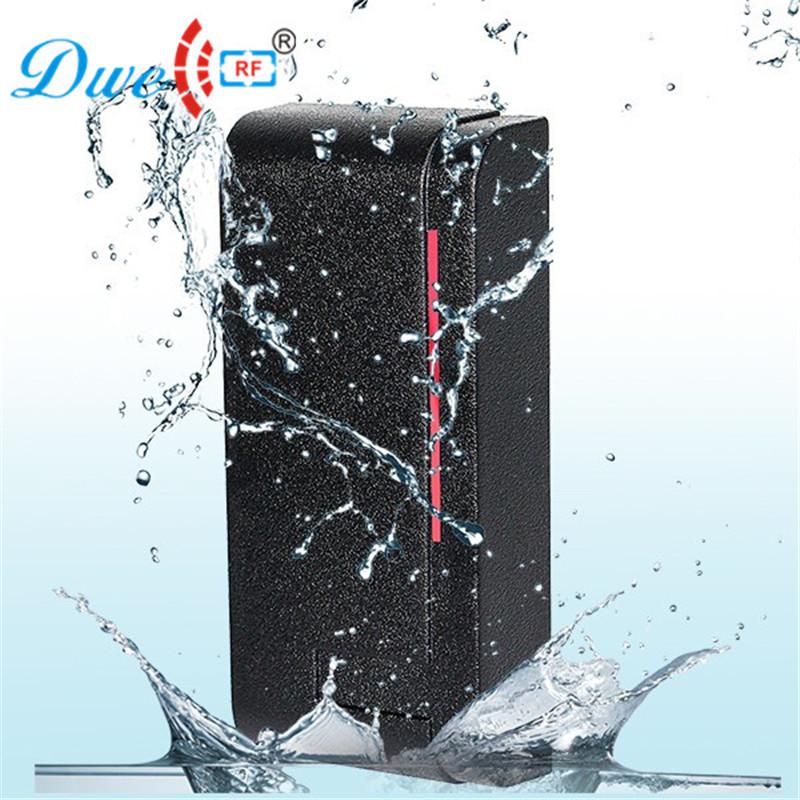

With Water-Proof Function

Audiovisual indication: When a registered card is presented to the reader, the red

LED flashes green and the beep sounds.

100*46*20(mm)

Package:

100pcs per carton. Carton Size: 43.5*56*23(cm)

Packing List:

1*RFID Reader

Installation Description

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

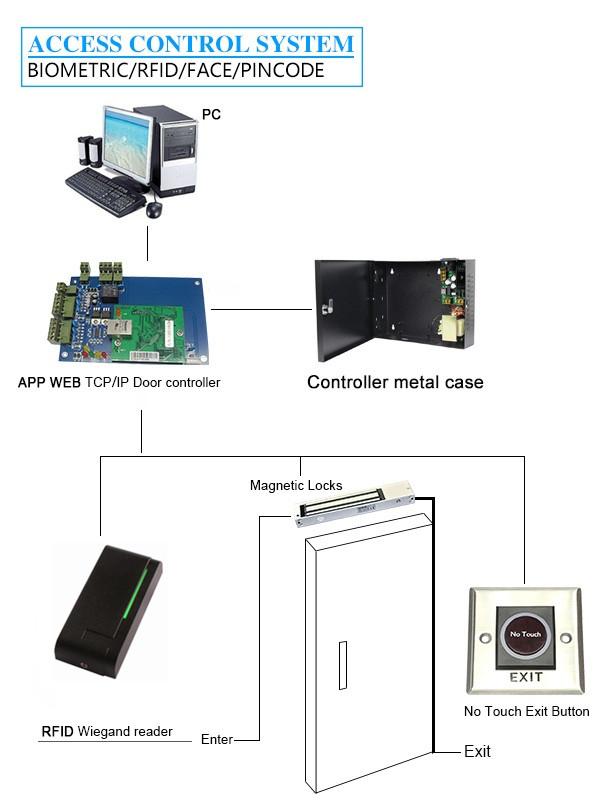

Wire Connection

Red DC 9V to 16V

Black GND

Green D0

White D1

Yellow BEEP

Blue   LED

Grey  Wiegand 26/Wiegand 34( defualt is Wiegand 26 bits, if you need weigand 34 function , connect Grey wire to GND)

Orange  Door Bell

Grown   Door Bell

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
