EM-ID or MF Rfid Reader D301

Model:D301
Brand:Dwell
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:proximity reader , RFID reader , mf rfid reader
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong
Live Chat:
点击这里给我发消息Last Online:20 Jun, 2018

Product Description

D301 EM-ID or MF Rfid Reader



Specification

*Wiegand 26bits/ Wiegand34bits, RS485 Standard Format Data Output

*Support ID (125 KHz),MF(13.56Mhz) Card

*Less than 0.2 second Response Speed

*Less than 0.5 seconds Proximity Time Distance:

*10cm Proximity Range

*-25℃ to 75℃ Ambient Temperature

*10%-90% Ambient Humidity

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 5V-16V Working Voltage. Standard Direct Current 12V

*70mA Working Current

*100 Meters Communication Distance

*Real Time Data Transfer

*Light Yellow

*PVC Case Material (Black Resin for Water-Proof Function)

*Size: 88*88*21(mm)

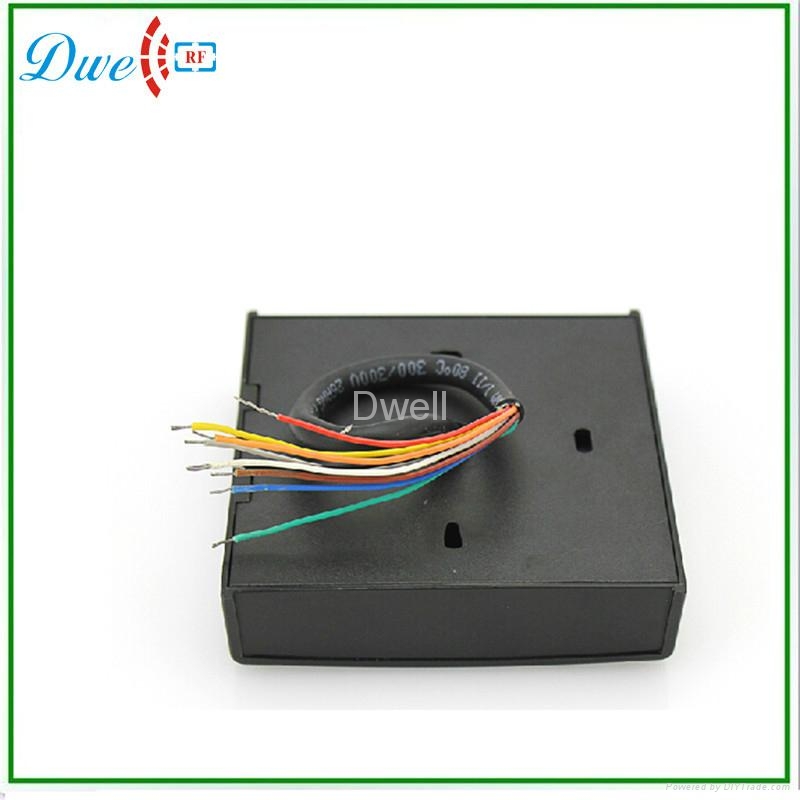

Wire Connection:

Red ------------------------------------ DC +12V

Black ----------------------------------------- GND

White -------------------------------------- DATA1

Green -------------------------------------- DATA0

Blue ----------------------------------- ----LED

Yellow -------------------------------------- BEEP


Payment Terms:tt/westion union/paypal/Escrow/cash

Product Image

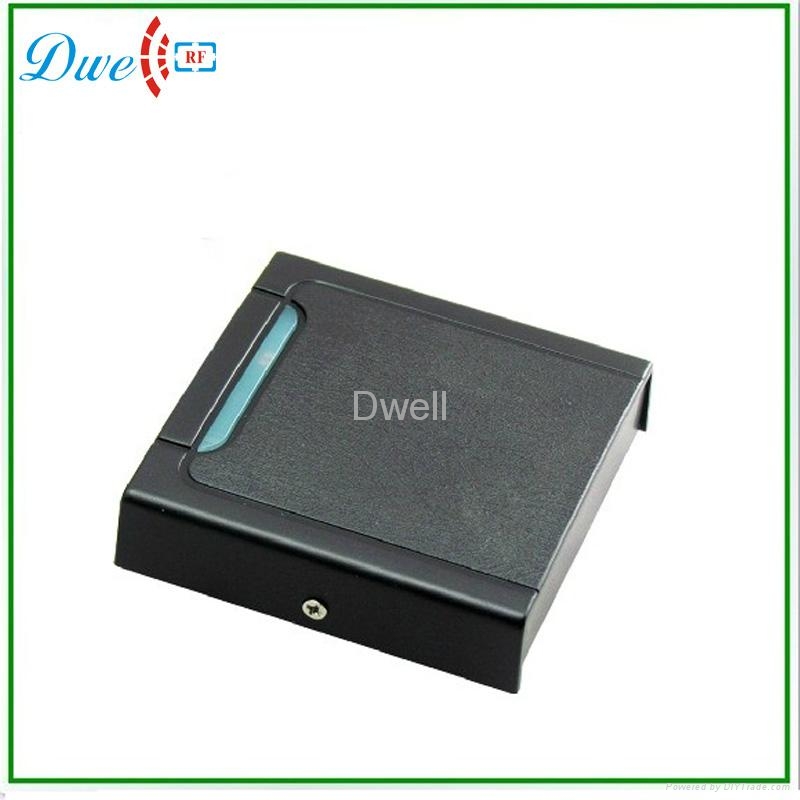

EM-ID or MF Rfid Reader D301 1
Img 1
EM-ID or MF Rfid Reader D301 2
Img 2

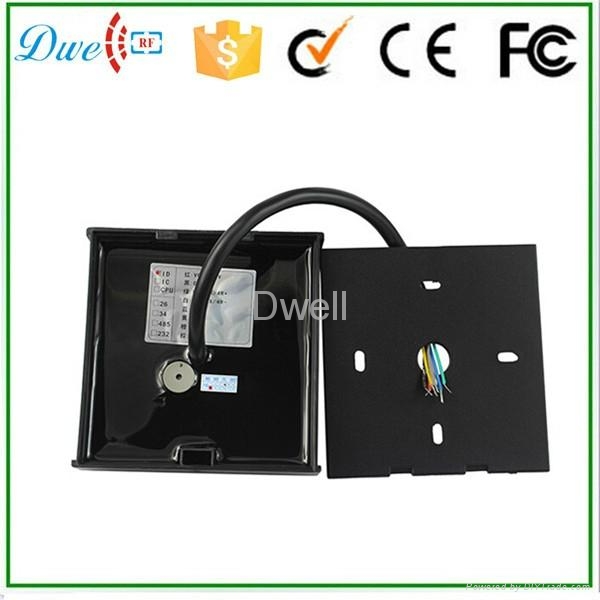

EM-ID or MF Rfid Reader D301 3
Img 3

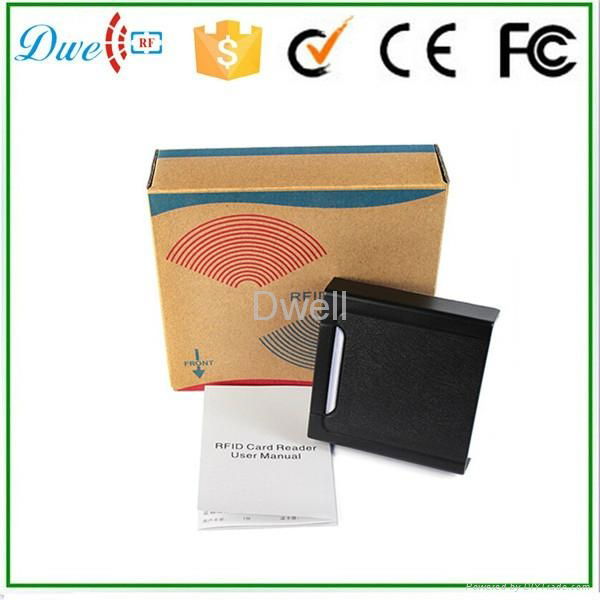

EM-ID or MF Rfid Reader D301 4
Img 4

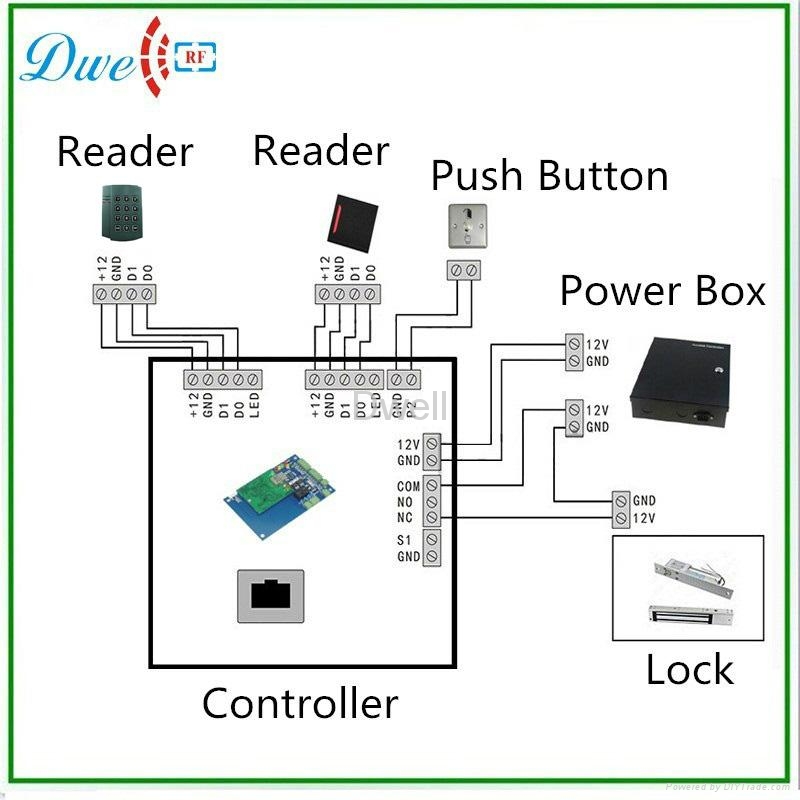

EM-ID or MF Rfid Reader D301 5
