125khz EM-ID or 13.56Mhz keypad reader D502A

Model:D502A
Brand:Dwell
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:keypad reader , pin reader , access control
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong S.A.R
Live Chat:
点击这里给我发消息Last Online:11 Aug, 2022

Product Description


D502A/B 5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol


Optional Model:

D502A-26, (Black Color, wiegand 26 interface,125khz )
D502A-34, (Black Color, wiegand 34 interface,125khz)
D502A-M26, (Black Color, wiegand 26 interface,13.56Mhz MF )
D502A-M34, (Black Color, wiegand 34 interface, 13.56Mhz MF)
D502B-26, (White Color, wiegand 26 interface,125khz )
D502B-34, (White Color, wiegand 34 interface,125khz)
D502B-M26, (White Color, wiegand 26 interface,13.56Mhz )
D502B-M34, (White Color, wiegand 34 interface, 13.56Mhz  )


Specification

Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature:-25ºC to 75ºC

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer


Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

100*100*21(mm)

Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)


Payment Terms:TT/Western union / paypal/Escrow/Cash

Product Image

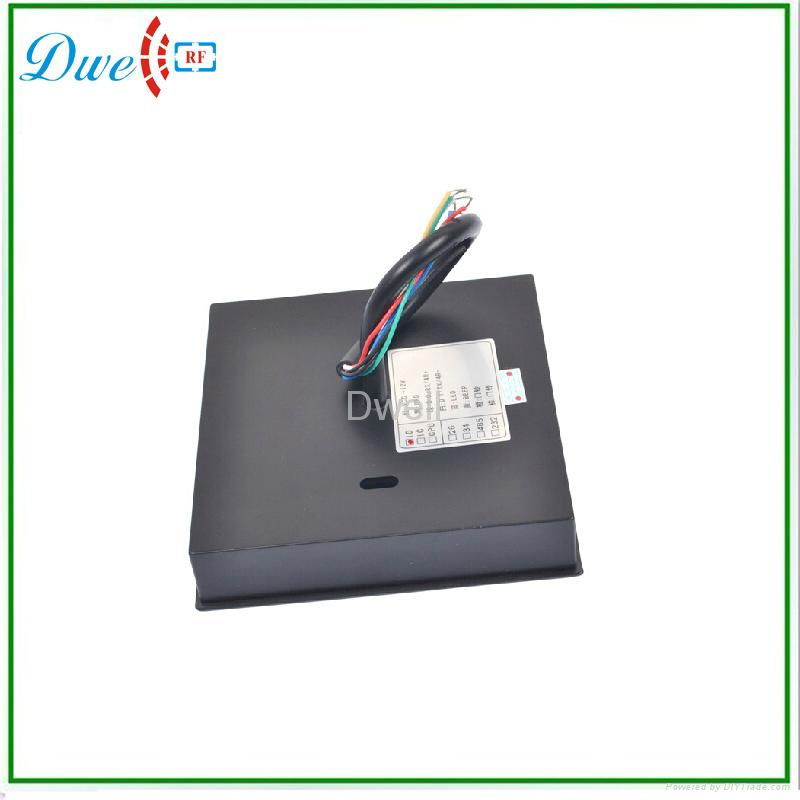

125khz EM-ID or 13.56Mhz  keypad reader D502A 1
Img 1
125khz EM-ID or 13.56Mhz  keypad reader D502A 2
Img 2
125khz EM-ID or 13.56Mhz  keypad reader D502A 3
Img 3
125khz EM-ID or 13.56Mhz  keypad reader D502A 4
Img 4
125khz EM-ID or 13.56Mhz  keypad reader D502A 5
Img 5
125khz EM-ID or 13.56Mhz  keypad reader D502A 6
Img 6
125khz EM-ID or 13.56Mhz  keypad reader D502A 7
Img 7
125khz EM-ID or 13.56Mhz  keypad reader D502A 8
Img 8
