Electric Straddle Stacker

Model:XEK
Brand:ZOWELL
Origin:Made In China
Category:Transportation / Logistics / Forklifts, Pallet Trucks
Label:forklift truck , material handling , straddle satcker
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description



Features of 1Ton \ 1.5Ton \ 2.0Ton Electric Straddle Stacker

1. Germany Mannstaedt forklift profile for mast building.

2. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.

3. Regenerative braking function

4. CURTIS electronic controller

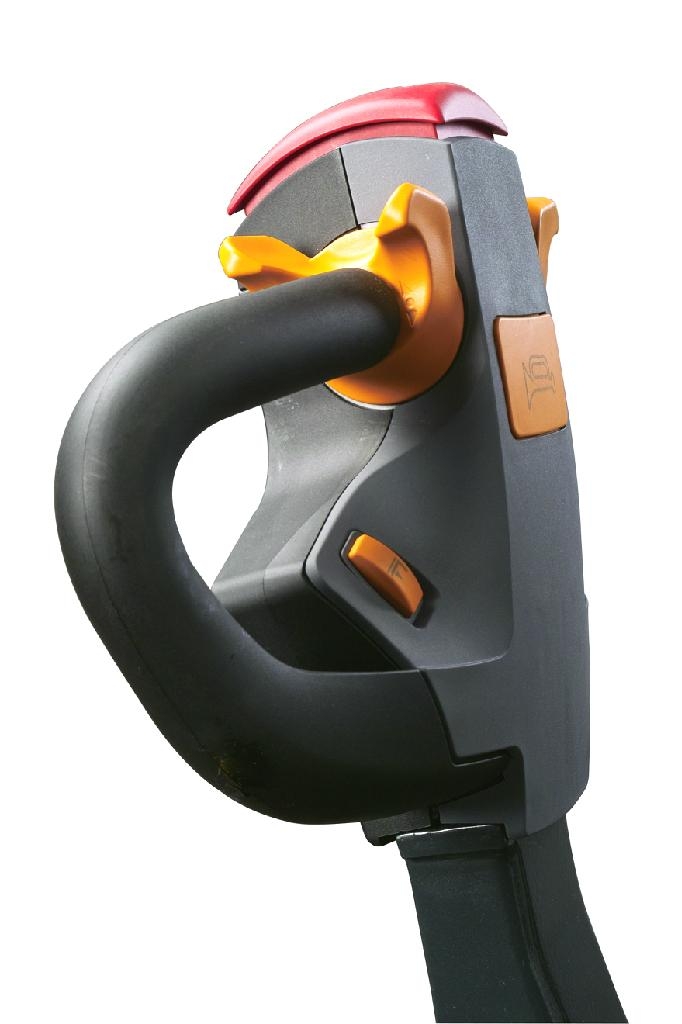

5. Germany Frei handle

6. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.

7. Emergency reversing device in the handle provides improved operating safety.

8. Emergency power disconnect switch.

9. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

10. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

11. The mast and the frame are dividable and exchangeable.



Technical Data of 1Ton \ 1.5Ton \ 2.0Ton Electric Straddle Stacker



Identification

Product model



XEK10A

XEK10B

XEK15A

XEK15B

XEK20A

XEK20B

Power supply



Electric

Electric

Electric

Electric

Electric

Electric

Operating type



Standing

Pedestrian

Standing

Pedestrian

Standing

Pedestrian

Load capacity

Q  Kg

1000

1000

1500

1500

2000

2000

Load center distance

C mm

600

600

600

600

600

600

Load distance

X mm

430

430

490

490

484

484

Wheelbase

Y mm

1280

1280

1340

1340

1372

1372

Weight

Weight(without battery)

Kg

700

680

781

761

1050

1030

Axle loading, loaded
drive end / load end

Kg

736/1164

728/1152

911/1620

903/1607

1164/2136

1157/2123

Axle loading,unloaded
drive end / load end

Kg

612/288

598/282

690/340

677/334

913/387

906/374

Wheel

Tyres



Polyurethane

Tyre size  drive end

mm

Φ250×80

Φ250×80

Φ250×80

Φ250×80

Φ230×75

Φ230×75

Type size  load end

mm

Φ80×70

Φ80×70

Φ80×70

Φ80×70

Φ80×70

Φ80×70

Balancing wheel size

mm

Φ125×50

Φ125×50

Φ125×50

Φ125×50

Φ150×60

Φ150×60

Wheels number (x=drive wheel)

drive end/load end



1x-2/4

1x-2/4

1x-2/4

1x-2/4

1x-2/4

1x-2/4

Tread width drive end

mm

690

690

690

690

800

800

Tread width load end

mm

1390

1390

1390

1390

1390

1390

Dimensions



Height data is on the bottom — Height data choices

Forks height, lowered

h5 mm

    35

    35

40

    40

    40

    40

Height of handle in drive position (Max/Min)

h6 mm

1350/985

1350/985

1350/985

1350/985

1370/985

1370/985

Overall length

L1 mm

1950

1890

2070

2010

2145

2085

Length to face of forks

L2 mm

797

737

925

865

956

896

Overall width

b1 mm

1510

1510

1270

1270

1510

1510

Inside width between two legs

b 2 mm

1270

1270

1510

1510

1270

1270

Fork dimensions

s/e/l mm

100/35/1070

100/35/1070

Forks width

b3 mm

200-800

Min. ground clearance

m  mm

30

30

30

30

30

30

Aisle width for pallets 800x1200 lengthways

Ast mm

2305

2220

2430

2340

2499

2394

Turning radius

Wa mm

1545

1460

1610

1520

1685

1580

Performance

Travel speed  loaded/unloaded

km/h

5.2/6

4/5

5.2/6

4/5

5.2/6

4/5

Lift speed  loaded/unloaded

mm/s

90/120

90/120

90/120

90/120

90/130

90/130

Lowering speed loaded/unloaded

mm/s

125/80

125/80

125/80

125/80

140/100

140/100

Max gradeability loaded/unloaded

%

5/8

5/8

5/8

5/8

5/8

5/8

Service brake



Electromagnetic

Electric Motor

Drive motor rating

kW

1.2(DC),1.5(AC)

1.2(DC),1.5(AC)

1.2(DC),1.5(AC)

Lift motor rating

kW

2.2/3.0

2.2/3.0

3.0

Battery voltage / nominal capacity

V/Ah

24/180(210)

24/210(240-280)

24/240(280)

Battery weight

Kg

210(230)

230(250-280)

250(280)

Others

Type of drive control



MOSFET Control

Noise level at operator’s ear

dB(A)

<70





Height Data Choices

Mast type

Lift

h3 (mm)

Height with mast closed  h1 (mm)

Free Lift

h2 (mm)

Height with mast Extended  h4 (mm)

XEK10/XEK15/XEK20

XEK10/XEK15

XEK20

XEK10/XEK15

XEK20

XEK10/XEK15

XEK20

Single

1600

1980

2055

1600

1600

1980

2055

Dual

2500

1750

1805

/

/

2956

3020

Dual

3000

2000

2055

/

/

3465

3520

Dual

3500

2250

2305

/

/

3965

4020

Dual

4000

2500

2555

/

/

4465

4500

Triple

4500

2055

2055

1490

1490

4979

5067

Triple

4800

2155

2155

1590

1590

5279

5367

Triple

5000

2215

2215

1670

1670

5479

5547

Triple

5500

2385

2375

1830

1850

5979

6027

Note: The maximal lifting height for XEK10 is 4.5m
