| Model: | XEP10 |
|---|---|
| Brand: | ZOWELL |
| Origin: | Made In China |
| Category: | Transportation / Logistics / Forklifts, Pallet Trucks |
| Label: | Electric Stacker , forklift truck , material handling |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:27 Nov, 2017 |

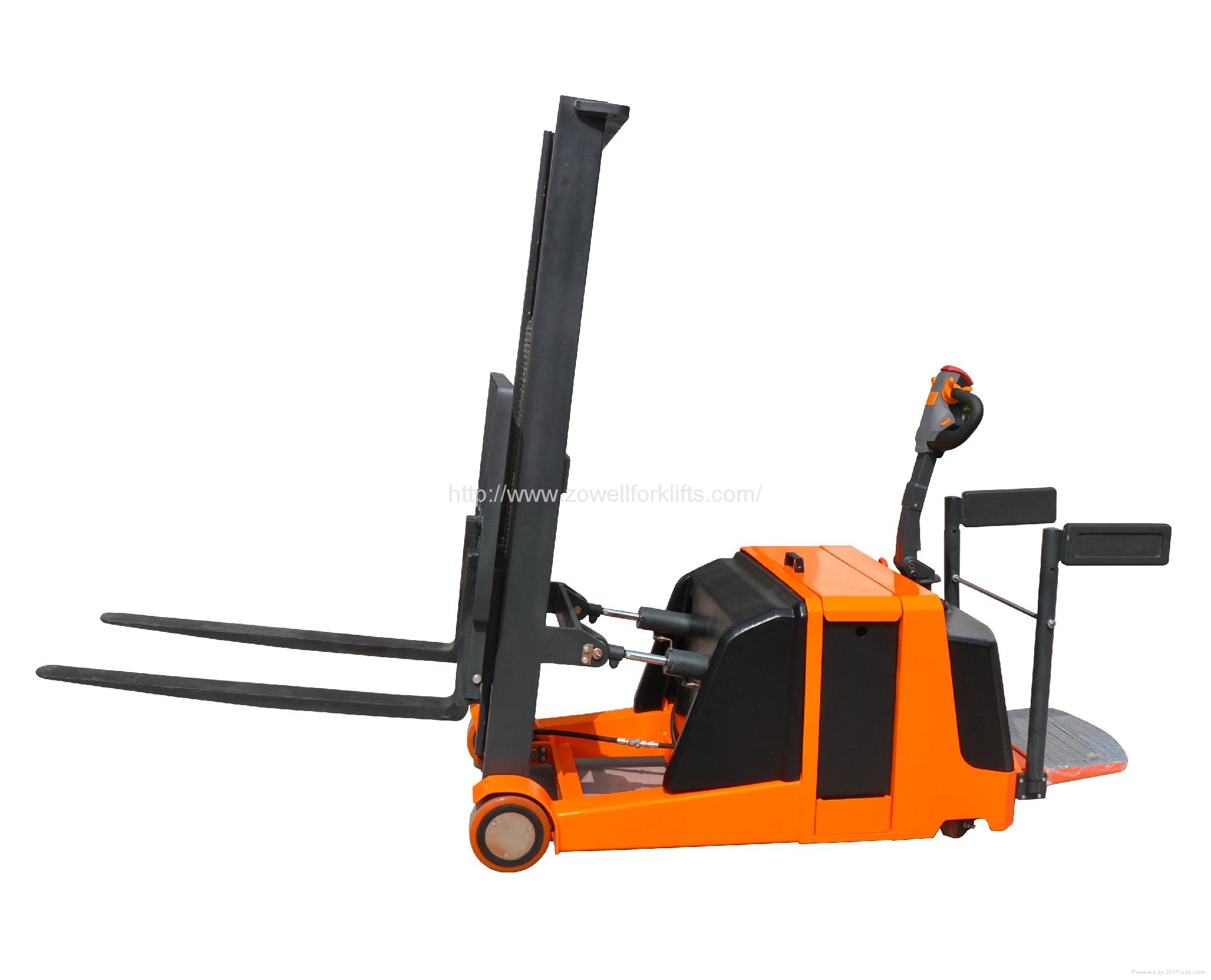

Features of 1Ton Counter Balance Stacker
1. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Battery side extraction: Battery can be removed from the side, making it very convenient to replace and maintain batteries.
6. Emergency reversing device in the handle provides improved operating safety.
7. Emergency power disconnect switch.
8. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
9. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
Technical Data of 1Ton Counter Balance Stacker
|
Identification |
Product model |
|
XEP10 |
|
Power supply |
|
Electric |
|
|
Operating type |
|
Pedestrian / standing |
|
|
Load capacity |
Q Kg |
1000 |
|
|
Load center distance |
C mm |
500 |
|
|
Load distance |
X mm |
180 |
|
|
Wheelbase |
Y mm |
1100 |
|
|
Weight (without battery) |
Kg |
1330 |
|
|
Wheel |
Tyres |
|
Polyurethane |
|
Tyre size drive end |
mm |
Φ250x80 |
|
|
Type size load end |
mm |
Φ210x85 |
|
|
Loaded wheels center distance |
mm |
775 |
|
|
Dimensions |
Height data is on the bottom — Height data choices |
||
|
Overall length |
L mm |
2400 |
|
|
Overall width |
W mm |
850 |
|
|
Forks height, lowered |
h1 mm |
35 |
|
|
Minimum ground clearance |
h5 mm |
50 |
|
|
Height of handle in drive position (Max/Min) |
h6 mm |
1245/670 |
|
|
Turning radius |
R mm |
1325 |
|
|
Performance |
Travel speed loaded/unloaded |
km/h |
4.8/5.6 |
|
Lift speed loaded/unloaded |
mm/s |
90/120 |
|
|
Lowering speed loaded/unloaded |
mm/s |
125/80 |
|
|
Max gradeability loaded/unloaded |
% |
5/8 |
|
|
Service brake |
|
Electromagnetic |
|
|
Electric Motor |
Drive motor rating |
kW |
1.2 |
|
Lift motor rating |
kW |
2.2 |
|
|
Battery voltage / nominal capacity |
V/Ah |
24/240 |
|
|
Battery weight |
Kg |
247 |
|
|
Others |
Type of drive control |
|
MOSFET Control |
|
Noise level at operator’s ear |
dB(A) |
<70 |
|
Height Data Choices:
|
1 |
Lowered mast height |
h1 mm |
1980 |
1700 |
1950 |
2100 |
|
2 |
Free lift |
h2 mm |
1023 |
115 |
115 |
115 |
|
3 |
Lift height |
h3 mm |
1600 |
2500 |
3000 |
3300 |
|
4 |
Extended mast height |
h4 mm |
2557 |
3430 |
3930 |
4230 |
