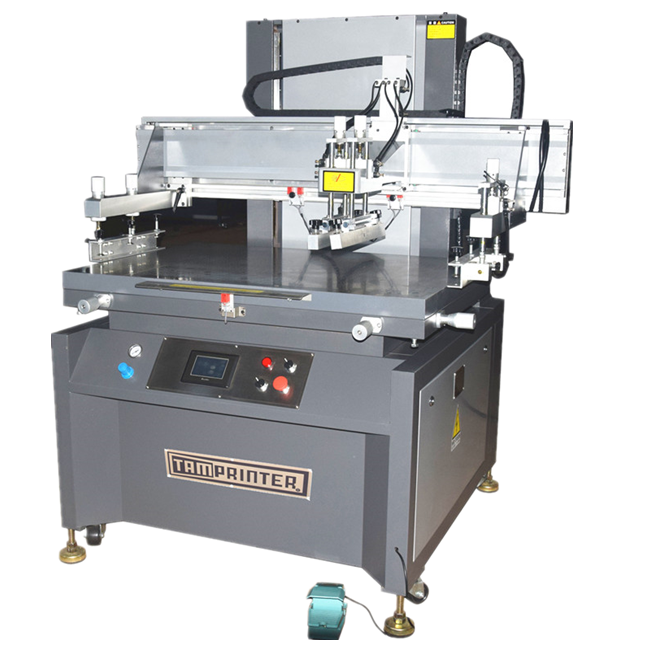

servo precision Vertical screen printing machine

Model:TM-3050A
Brand:Tamprinter
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:printing machine sup , precision printer , double servo printer
Price: -
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

TAMPRINTER PRINTING MACHINERY GROUP LIMITED

Biz MemberGuang Dong - China
Live Chat:
Last Online:19 Jun, 2021

Product Description

TM-3050A and TM-3050B is PLC(Programmable Logic Controller)+servo motor precision Vertical screen printer

TM-3050D Button panel screen printing machine with a single-chip control

video link:  http://v.youku.com/v_show/id_XMTI2ODc5NTkwMA==.html

Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing

Technical  parameter:

Model No.

TM-3050A

TM-3050B

TM-3050D

TM-5070A

TM-5070B

TM-5070D

TM-6090B

TM-6090D

TM-70100B

TM-70100D

Servo+PLC

X/Z  servo

X servo

Z motor

X/Z Common motor

X/Z  servo

X servo

Z motor

X/Z Common motor

X servo

Z motor

X/Z Common motor

X servo

Z motor

X/Z Common motor

Price

$7500

$6625



$10000

$9125



$9375



$9975



Print area

300X500mm

500X700mm

600X900mm

700X1000mm

Table size

400X600mm

600X800mm

700X1000mm

800X1100mm

Max frame

550X750mm

600X1000mm

800X1200mm

900X1350mm

Printing thickness

0~40mm

0~ 50mm

0~ 50mm

0~ 50mm

Overlay accuracy

0.01mm

0.015mm

0.02mm

0.02mm

Platform precision

About +/-0.04mm

About +/-0.06mm

About +/-0.075mm

About +/-0.075mm

Printing pressure

4.0-8.0 kgf/cm2

4.0-8.0 kgf/cm2

4.0-8.0 kgf/cm2

4.0-8.0 kgf/cm2

Air pressure

(mpa)

0.5~0.6(Mpa)

0.5~0.6(Mpa)

0.5~0.6(Mpa)

0.5~0.6(Mpa)

Air consumption

35L/min

35L/min

35L/min

35L/min

Printing speed

960pcs/h

1000pcs/h

900pcs/h

900pcs/h

Power

220V/2.5KW

220V/2.5KW

380v /2.5kw

380v /2.5kw

Dimensions (LXWXH)mm

980X820X1580mm

1260mmX900mmX1680mm

1500X1070X1750mm

1550X1200X1750mm

Weight

280kg

420kg

480kg

550kg

if add robot arm add $3000

Application:

Mobile phone cover, LED backlight, Tablet PC cover.



Features:

1. The screen printing powered by imported servo motor, printing more stable.

2. A variety of accessories by the customer freedom of choice, choose more flexible.

3. Hard alumina Taiwan version and more effective to prevent the glass scratches.

4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.


Additional Info.

Payment terms:           T/T, L/C ,Western Union

Packing:                      Plywood

Lead time:                   5 days after confirmed payment

Sku:                            10 sets

Standard certification: CE

Minimum Order:         1 set

Price term:                  CIF/FOB/CFR/FCA/EXW

hot keys: Glass screen printing machine




Payment Terms:TT/LC/ Western Union
