Screen Printing machines for Label & Sticker Printing

Model:TMP-100130A
Brand:tamprinter
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Large Screen Print , big screen printer , clamhell printer
Price: US $10000 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

TAMPRINTER PRINTING MACHINERY GROUP LIMITED

Biz MemberGuang Dong - China
Live Chat:
Last Online:19 Oct, 2021

Product Description

TMP-100130A Semi-automatic Oblique Arm Screen Printer
video link:


https://www.instagram.com/p/CNRUir1g5qb/?igshid=1brykrow6pmd2
http://youtu.be/d0zJxbDc-Js
big type printer with Automatic glitter powder spill machine test video
https://youtu.be/_efN9mhuo7Q
youku Video
http://v.youku.com/v_show/id_XNTUxOTc1OTgw.html
https://www.instagram.com/p/CJGR-3JrV8d/?igshid=165df0euae3yj
https://www.instagram.com/p/CJFX-mZr0X8/?igshid=4kej31g27o2k
https://www.instagram.com/p/CJFMWBVgubZ/?igshid=nhdmp8ow9lpc
https://www.instagram.com/p/CJFLwVig3mW/?igshid=1j2ix51wiiqqg



1. Technical parameter:



Type

TMP-100130A

Worktable area (mm)

1100X1400

Max printing area (mm)

1000X1300

Max screen fame size (mm)

1300X1600

Thickness of materials (mm)

20

Printing speed

400~900pcs/h

Air pressure (Mpa)

0.4~0.8

Air consumption (L/pcs)

13

Power

5KW

Max worktable height (mm)

880

Dimension (LXWXH)

2.38*1.95*1.6m

Weight

620kg

Rated voltage

380V/50Hz


2. Application:

   This series of flat screen printing machine is widely used in electronics industry (such as PCB, thin-film switch and so on), packaging industry (such as cigarette case, wine box, gift box and so on), paper board industry (such as trademark, calendar, oil painting, computer keyboard, new year picture, transfer print paper, adhesive sticker, credit card, plate board and so on).



3. Features:

(1). High precision line and synchronous printing transmission adopts motor drive, speed equality and can be adjusted, balanced speed, speed adjustable.

(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.

(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.

(4). Vacuum adsorption fixed printing pieces.

(5). The printing plate has up and down, left and right, before and after tuning device, which makes it  works accurate and convenient on board.

(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.

(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.





Hot Tags: Flat printing machine




Payment Terms:TT/LC/ Western Union

Product Image

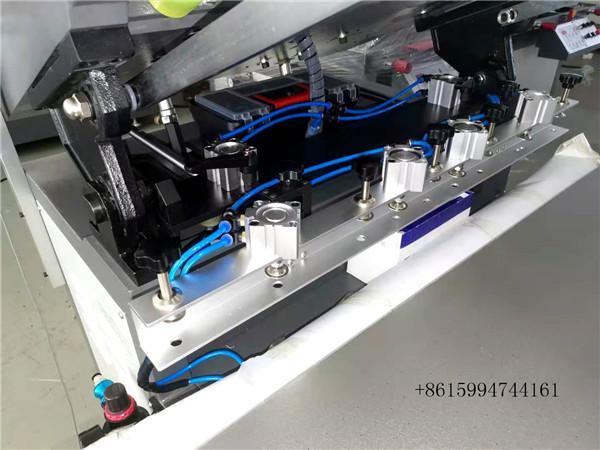

 Screen Printing machines for Label & Sticker Printing 1
