|Origin:||Made In China|
|Category:||Security & Protection / Surveillance Equipment|
|Label:||camera , security camera , surveillance camera|
|Min. Order:||1 pc|

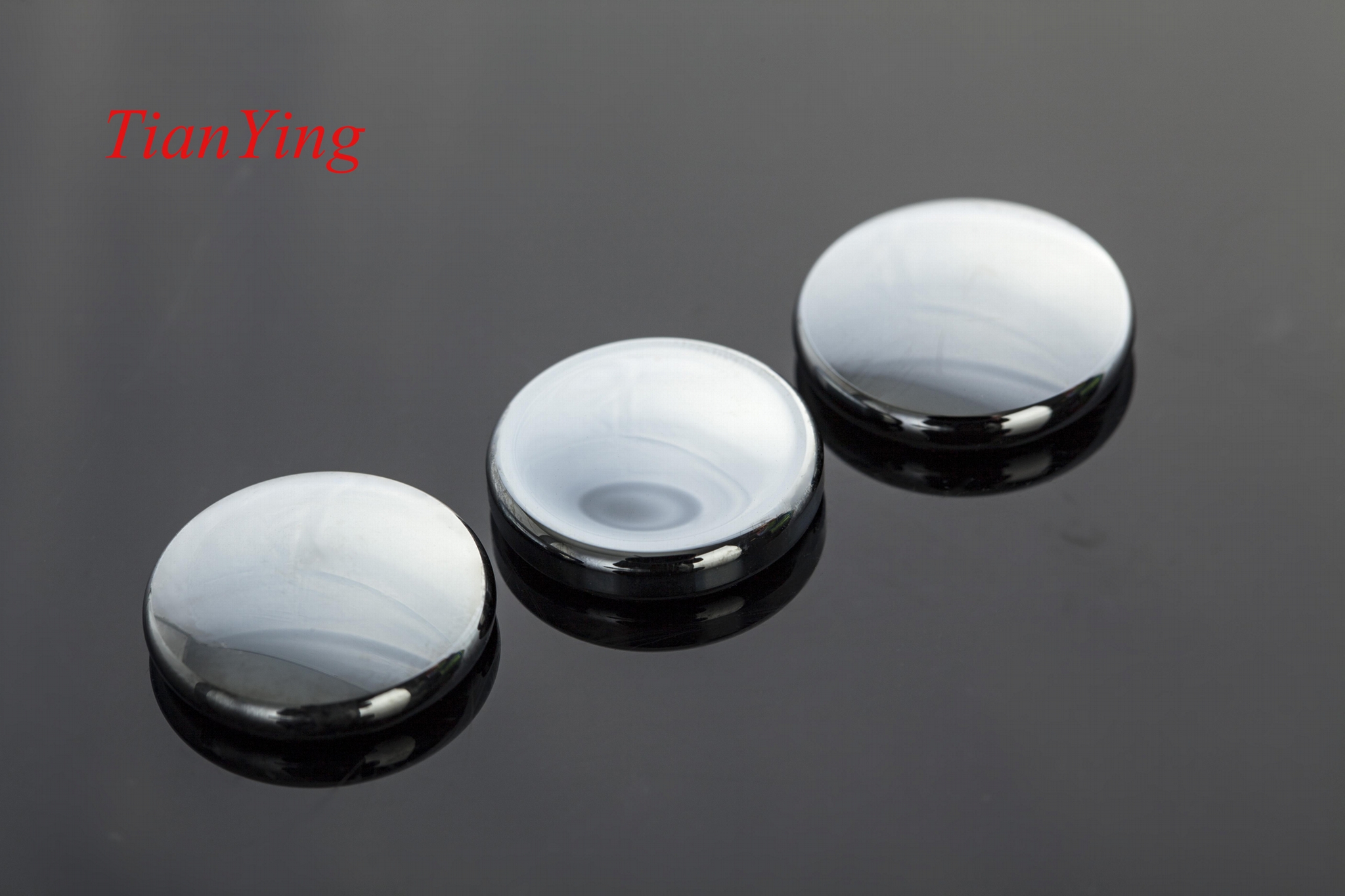

China TianYing HD300P tank 12km achromatic surveillance security camera is the world's leading long focal length high precision coaxial continuous optical zoom CCTV camera,the camera adopts achromatic lens design, especially in the aspect of long focal length, to eliminate the defects that have plagued optics for years. The definition of telephoto is more than twice that of traditional achromatic design.
This achromatic lens with a variety of AI intelligence technology: high precision automatic focus, 2 times defog, data transmission functions etc. Designed and manufactured according to the military grade, the coaxiality to achieve the measurement level, which is conducive to remote tracking target; It can adapt to high and low temperature military environment without heating, but has outstanding shockproof and anti-corrosion performance.
The camera is unprecedented lightweight design, compared to the traditional size of the lens volume cut in half, so as to facilitate integration into the electro optical system, this is in line with the electro optical system high-precision lightweight development direction.
1. Long range high accuracy measurement level coaxial continuous zoom lens.
2 .Defog definition reaches 2 times of color.
3. The focus does not shift for zoom process.
4. Super long focal color restore ability is color without loss.
5. Achromatic long focal definition is more than twice that of traditional achromatic design.
6. Achromatic design allows long focal edge image to be clean and complete.
7. Perfect circuit configuration, with fast automatic focus, lens preset and lens position output.
8. Long and short focal coplanar design.
1. Long range high accuracy measurement aiming.
2. Long range high accuracy weapon sight.
3. Long range high accuracy defense.
4. Long range high accuracy target tracking.
6. Long range aerial photo.
1, Why normal long focus CCTV camera can not see tank 10km? such as 400mm focus, 500mm focus etc.
Because long range have fog, especially the sea and the jungle, also normal CCTV camera defog is bad.
2, Why the 2MP camera image is better than many 12MP and 15MP camera?
Because the camera lens is achromatic and the camera have color restore ability is color without loss.
3, Why many 750mm focus/1000mm focus/ 1200mm focus CCTV surveillance camera is only used for 3km-5km laser rangefinder?
Because their optical axis precision is very bad, such as 2mrad accuracy is 2m for 1000m distance and 6m for 3000m distance.
then their camera can not shoot 3km vehicle, so their laser rangefinder task is only roughly measurement.
4, Why the 5MP camera price is much higher than normal CCTV camera?
Because the camera is coaxial zoom with achromatic, supper defog, shockproof and compact size, also image quality can compete with some SLR camera.
HD300P 2MP 300mm focus precision coaxial surveillance security camera specifications:
|Detect range||6km for human, 12km for 6m x 3m vehicle/boat|
|Recognize range||4km for human, 8km for 6m x 3m vehicle/boat|
|Effective Pixels||2 Megapixel, option 5 Megapixel|
|Resolution||1920 x 1080 pixels|
|Pixel Pitch||1/1.8 inch|
|Field of View,°||42.8° x 24.8° ~ 1.5° x 0.84°|
|Focal Length||10mm~300mm, 30x Optical Zoom.|
|Close-up distance, m||5m|
|64x optical zoom time + focus time||Approx 5 seconds.|
|Optical axis precision consistency||< 3pixes|
|Operating type||Auto focus, electro zoom and digital magnification|
|Input / Output|
|Power supply||DC12 600mA|
|Video output||Analog, HD-SDI, HDMI|
|Operating Temperature,°С||-40°C to +60°C|
|Storage Temperature||-50ºC to +70ºC|
|Dimensions, mm||Approx 220mm x 138mm x 108mm|
|Weight ,kg||Approx 2.5kg|
|Packing and Warranty|
|Standarding accessories packing||hard case, user's manual, video cable, power cable|
|Warranty||1 year warranty and free lifetime maintenance.|
|Note: *- Technical information is subject to change without notice. ** -Depending on the region of sale.|
