12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera

Model:ST750
Brand:TianYing
Origin:Made In China
Category:Security & Protection / Surveillance Equipment
Label:CCTV camera , 750mm CCTV Camera , CCTV
Price: US $5400 / pc
Min. Order:5 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

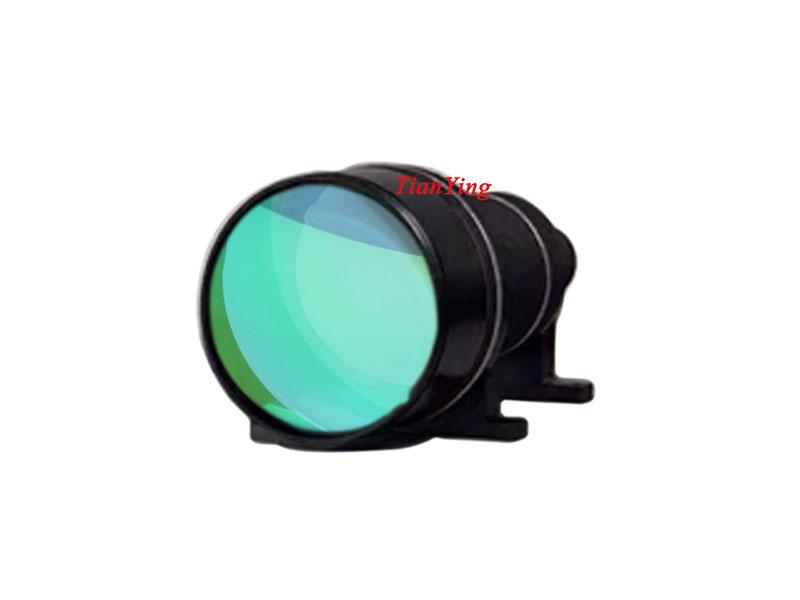

China TianYing ST750 zoom surveillance network CCTV camera features a compact 2MP 12.5~750mm pure optical zoom lens TV camera captures clear images and offers good reliability with affordable price.

The lens has advanced control modules and accurate practical circuits, such as electric rear focal adjustment, query and backaul zoom position, query and backaul focal length position, specify zoom position, specify focal length etc; combined with the reliable camera core, providing quite clear images.

The ST750 is thorough resolving human targets at over 12 kilometers, in addition, its features allow users to reject false and exaggerated propaganda.

12km man security surveillance 2MP 12.5~750mm zoom NIR CCTV Camera specifications:

Model ST750
Performance
Detect human Approx 12.6km
Recognize human Approx 7km
Sensor
Effective sensor size 1/1.8 inch (3.75 microns)
Effective Pixels 2 Megapixel
Resolution 1920 x 1080 pixels
Frame Rate 25Hz/30Hz.
Signal to noise ratio ≥50dB (AGC OFF), WDR ≥80dB
Electronic Shutter Speed 1/2~1/20,000s
Coding format H.265/H.264/MJPEG
Video bit rate 32Kbps ~ 10Mbps
Min. Illumination Color: 0.005Lux f1.5; B/W: 0.001Lux f1.5
Day/Night Auto/Manual
White balance auto/manual, indoor, outdoor, sodium lamp mode;
Image adjustment White Balance, gain, 3D NR, privacy masking, 3D positioning etc
Optics
Wavelength range 400nm ~ 950nm (0.4~0.7μm daylight, 0.7μm~0.95μm NIR)
Field of View (3.75um-LAN),° Approx 32.1° x 18.4° ~ 0.55° x 0.31°
Focal Length 12.5mm~750mm continuous optical zoom.
Aperture F3.8~ F9.2
Close-up distance, m Approx 5m (can be 1m)
Specify focal length Support
Rear focal adjustment Electric
Data backhaul  Zoom position, focus position, specify focal length position etc
Optics defog Support
Lens control Electric zoom, electric/auto focus, electric/auto optical filter
Input / Output
Power supply DC12 1A
Video output RJ45 H.265 Main Profile / H.264 High profile / M-JPEG, BNC
Audio interface 1 x  audio input, 1 x  audio output
Alarm interface 1 x alarm input, 1 x alarm output -  Alarm linkage
Network interface 1x RJ-45 10M/100M
Networking
Network Protocol ONVIF, HTTP, RTSP, RTP, TCP, UDP etc
Compatible browser Supports android and IOS smartphone access.
Storage Capabilities TF SD card, up to 128G
Preview maximum number of users 10pcs- Main Profile, 6pcs-Substream
Image Control
Control interface J30J-9ZKP- RS422/RS485
Environmental Adaptability
Operating Temperature(no heater) -25°C to +65°C
Working humidity ≤ 95%
Impact resistance and shock-proof (G) Meet relevant standard
Physical
Dimensions without house Approx 385mm x 130.5mm x 114.5mm
Weight without house Approx 4.65kg
Packing and Warranty
Standarding accessories packing hard case, user's manual, video cable, power cable
Warranty 1 year warranty and free lifetime maintenance.
Note: *- Technical information is subject to change without notice. ** -Depending on the region of sale.

*** - Option add normal house and sealing house.

Embed HTML Code:

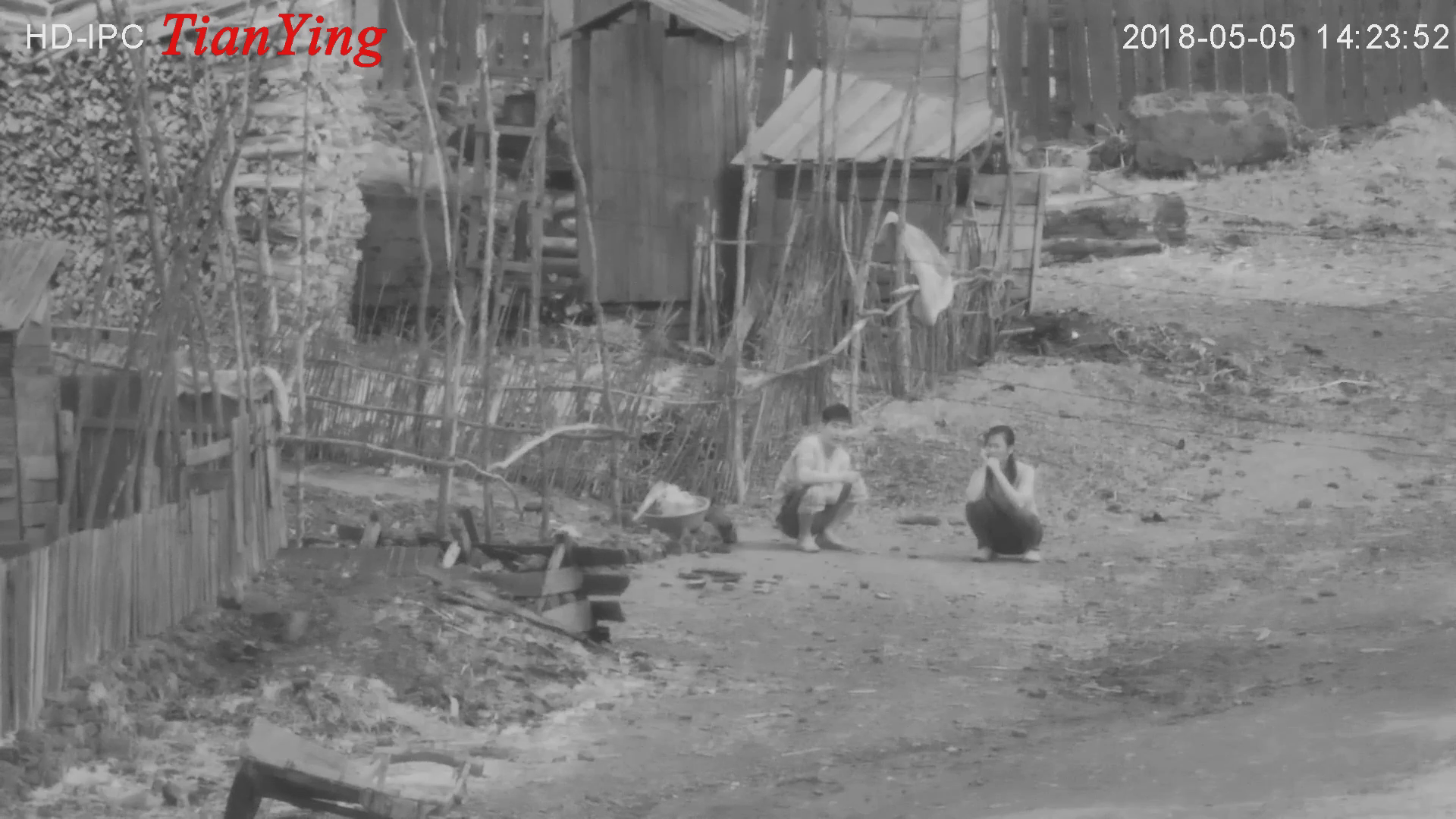

ST750 12km man surveillance 2MP 12.5~750mm zoom CCTV Camera effect

HD800 2MP 12.5mm~800mm coaxial zoom no chromatic aberration CCTV camera see 6km rock and light pole with NIR SWIR

HD800 2MP 12.5mm~800mm coaxial zoom no chromatic aberration NIR CCTV camera see 40km lighthouse(42km) on the islands, we have done simultaneous field tests, many 1000mm and 1200mm focal length lens plus 2x extender CCTV cameras can not see this island with the disance, including famous brands, then do not mention the lighthouse too, only their price is cheap.

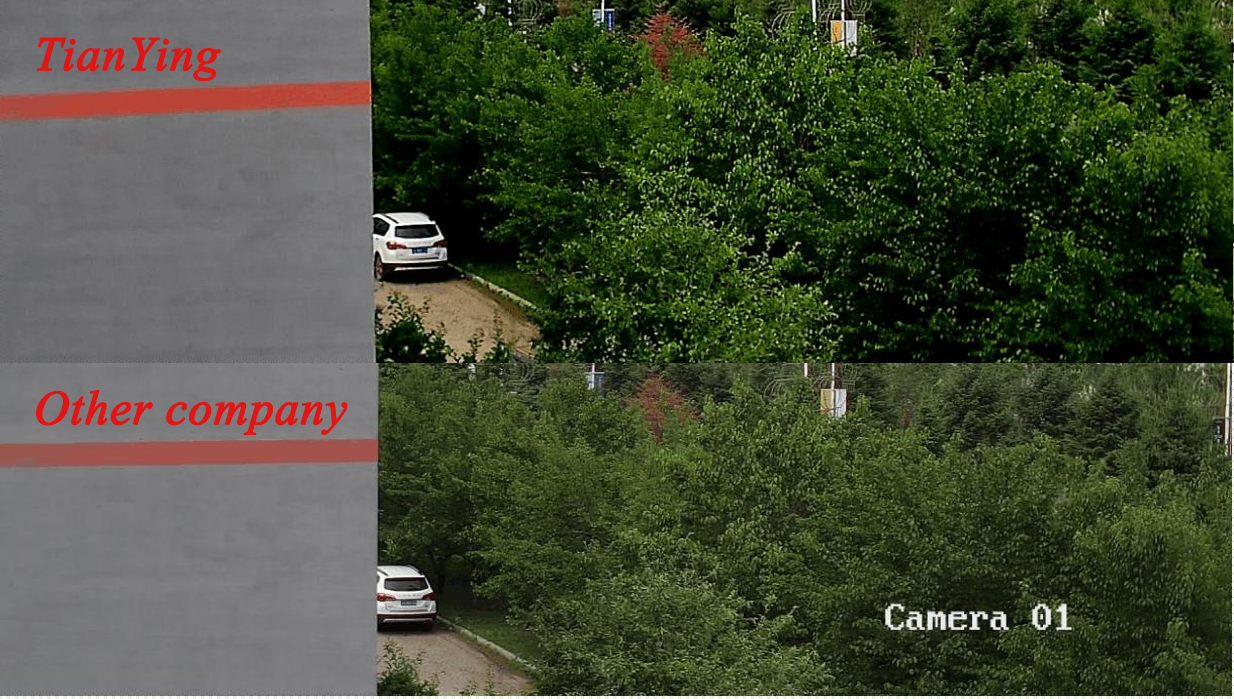

Hig accurate coaxial zoom defog surveillance security CCTV camera align target with NIR

Product Image

12km man surveillance 2MP 12.5~750mm zoom CCTV Camera
Img 1
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 2
Img 2
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 3
Img 3
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 4
Img 4
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 5
Img 5
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 6
Img 6
12km man 2MP 12.5~750mm zoom Spotter NIR CCTV Camera 7
Img 7
