Double glass equipment

Model:lbz1600p
Brand:china zym
Origin:Made In China
Category:Industrial Supplies / Glass & Ceramics Machine
Label:glass equipment , insualtglass machine , insulating glass
Price: US $10000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Jinan Zhaoyang Machine Co.,Ltd

Free MemberShan Dong - China
Live Chat:点击这里给我发消息Last Online:14 Aug, 2018

Product Description

LBZ2500P automatic hollow glass plate pressing production line

Main technical parameters

It is the largest production specification: 2500 * 3000mm ( 2500 * 3500 )

The minimum production specification: 300 * 500mm

The glass thickness: 3 - 12mm

The hollow glass thickness: up to 50mm

The glass cleaning speed: 0 - 8m / min

The transmission speed: 8 - 48m / min

The brush: 4pair

* 380V 38KW 50Hz: 3P electric power

The shape and size: 21000 * 2500 * 3600mm

Characteristic.

1 fully automatic hollow glass production lines ( can produce LOW-E and special-shaped hollow glass )

2 cleaning machine using all 4 on LOW-E glass special brush, avoid film damage

Full automatic control system of 3 PLC, touch screen man-machine interface

4 digital control brush, water pump, blower start-up time, tabletting time

5 the pressure plate adopts the screw rod transmission, high precision

Automatic recognition of LOW-E 6 coated glass and glass film dimensions, can clean the on-line and off-line LOW-E glass

7 can produce size sheet of insulating glass curtain wall

8 production of three layers of glass ( double hollow )

9 with automatic aluminum frame positioning system

The 10 is to prevent incorrect operation control system

11 with second glass automatic follow-up system


Product Image

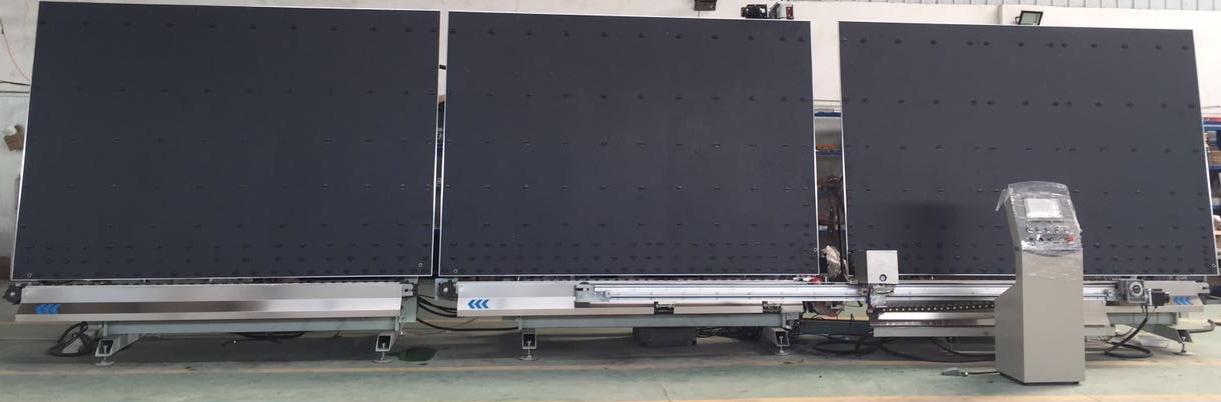

Double  glass equipment 1
Img 1
Double  glass equipment 2
Img 2
Double  glass equipment 3
Img 3
Double  glass equipment 4
Img 4
Double  glass equipment 5
Img 5
