PVC blue casing, the blue PVC casing, blue hose

Model:qx-20111018006
Brand:quanxin
Origin:Made In China
Category:Electronics & Electricity / Insulation Material
Label:Transparent hose , hose , PVC tube
Price: ¥2000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

DONGGUAN QUANXIN INSULATION MATERIALS CO.,LTD

Biz MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:27 Apr, 2023

View all products. (53)

Product Description

PVCTUBE
General Purpose insulating non-faammable tube, are suitable for insulation purpose of terminal lugs, small electrical parts, lead wires of terminal lugs, and transformers etc, product can meet UL 224 105℃ standard.
　Specification
 Size
No.
（mm)Inside Diameter
(mm)
Wall-thickness
(mm)
Wall-thickness range
5/8
15.9
0.7
±0.18
9/16
14.3
0.7
±0.15
1/22
12.7
0.57
±0.15
7/16
11.1
0.57
±0.15
3/8
9.53
0.57
±0.15
5/16
7.92
0.57
±0.15
0#
8.38
0.45
±0.15
1#
7.47
0.45
±0.15
2#
6.68
0.45
±0.15
3#
5.94
0.45
±0.15
4#
5.28
0.45
±0.15
5#
4.72
0.45
±0.15
6#
4.22
0.45
±0.15
7#
3.76
0.45
±0.15
8#
3.38
0.45
±0.15
9#
3.00
0.45
±0.15
10#
2.69
0.35
±0.15
11#
2.41
0.35
±0.1
12#
2.16
0.35
±0.1
13#
1.93
0.35
±0.1
14#
1.68
0.35
±0.1
15#
1.50
0.35
±0.1
16#
1.34
0.35
±0.1
17#
1.19
0.35
±0.1
18#
1.07
0.35
±0.1
19#
0.96
0.35
±0.1
20#
0.86
0.35
±0.1
21#
0.79
0.35
±0.1
(NOTE) Inside Diameter ±5%


Payment Terms:tt

Product Image

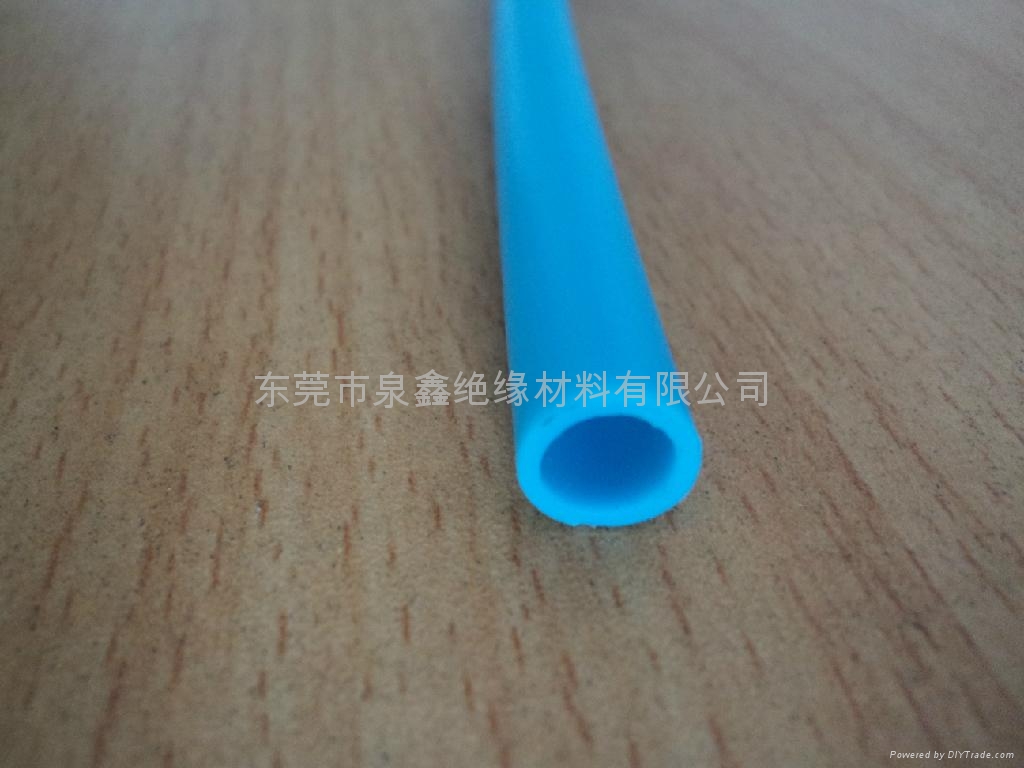

PVC blue casing, the blue PVC casing, blue hose 1
Img 1

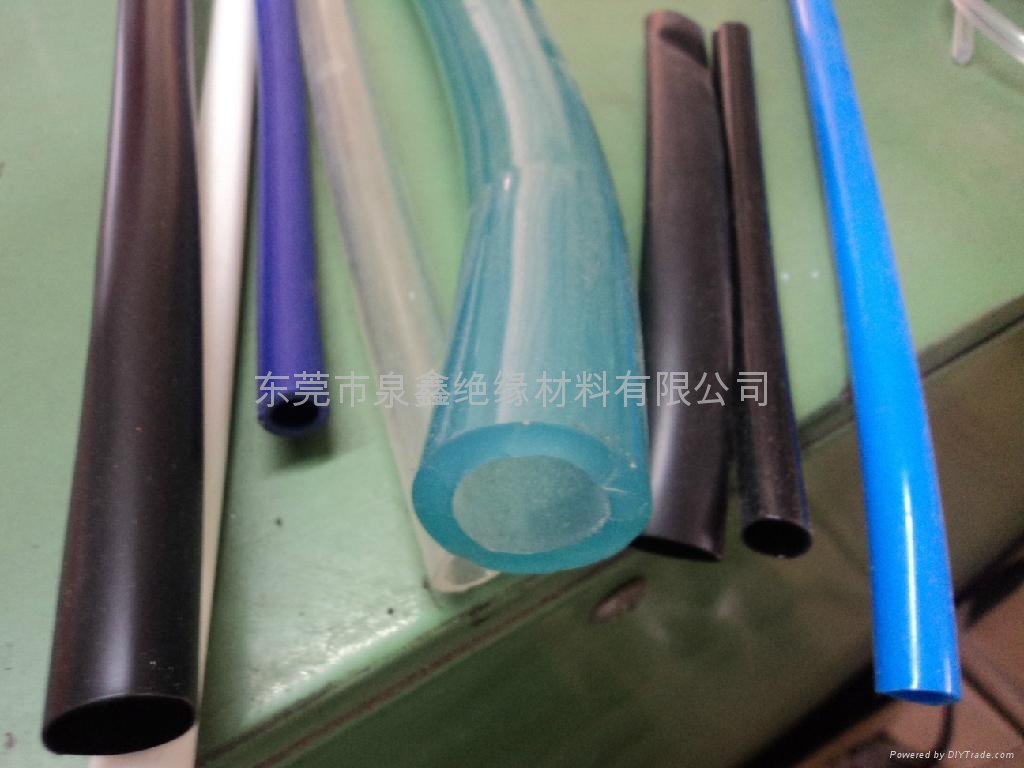

PVC blue casing, the blue PVC casing, blue hose 2
Img 2
PVC blue casing, the blue PVC casing, blue hose 3
Img 3
PVC blue casing, the blue PVC casing, blue hose 4
Img 4
