PVC transparent casing, the transparent PVC casing, transparent rubber hoses

Model:qx-20111018001
Brand:quanxin
Origin:Made In China
Category:Electronics & Electricity / Insulation Material
Label:Transparent hose , hose , PVC tube
Price: ¥2000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

DONGGUAN QUANXIN INSULATION MATERIALS CO.,LTD

Biz MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:17 Mar, 2020

Product Description

PVC does not shrink difficult to burn the casing is widely used in electric wire connectors, electronic parts, toys, motor and transformers wiring insulation protection in, accord with UL224 105 ℃ standards. Also can produce PP, PE, EVA, PC, PV and other material casing.   Specification
Item Specification Requirements
(℃)Continnuous Operating Temperature -40~105
(Mpe)Tensile Strength ≥10.4
(%)Ultimate Elongation ≥100
 Aging In Circulating Air Oven (136.0±1.0)℃,7 days at 136.0±1.0℃
 After aging (Mpe)Tensile Strength ≥7.28
(%)Ultimate Elongation ≥70
(V)Potential Rating 300V,600V
(Ω)Volume Resisivity ≥1010
(V)Dielecric Rating ≥2500(60S) ≥2500(60S), no breakdown
 Corrosion of Bare Copper No corrosion
Head Shock  No craking
Cold Bend  No craking
 Maximum Longitudinal Change ±5%
 Size
No.inches (mm)Inside Diameter (mm)
Wall-thickness
(mm)
Wall-thickness range
5/8 15.9 0.7 ±0.18
9/16 14.3 0.7 ±0.15
1/22 12.7 0.57 ±0.15
7/16 11.1 0.57 ±0.15
3/8 9.53 0.57 ±0.15
5/16 7.92 0.57 ±0.15
0# 8.38 0.45 ±0.15
1# 7.47 0.45 ±0.15
2# 6.68 0.45 ±0.15
3# 5.94 0.45 ±0.15
4# 5.28 0.45 ±0.15
5# 4.72 0.45 ±0.15
6# 4.22 0.45 ±0.15
7# 3.76 0.45 ±0.15
8# 3.38 0.45 ±0.15
9# 3.00 0.45 ±0.15
10# 2.69 0.35 ±0.15
11# 2.41 0.35 ±0.1
12# 2.16 0.35 ±0.1
13# 1.93 0.35 ±0.1
14# 1.68 0.35 ±0.1
15# 1.50 0.35 ±0.1
16# 1.34 0.35 ±0.1
17# 1.19 0.35 ±0.1
18# 1.07 0.35 ±0.1
19# 0.96 0.35 ±0.1
20# 0.86 0.35 ±0.1
21# 0.79 0.35 ±0.1
(NOT) :Inside Diameter ±5%




Payment Terms:tt

Product Image

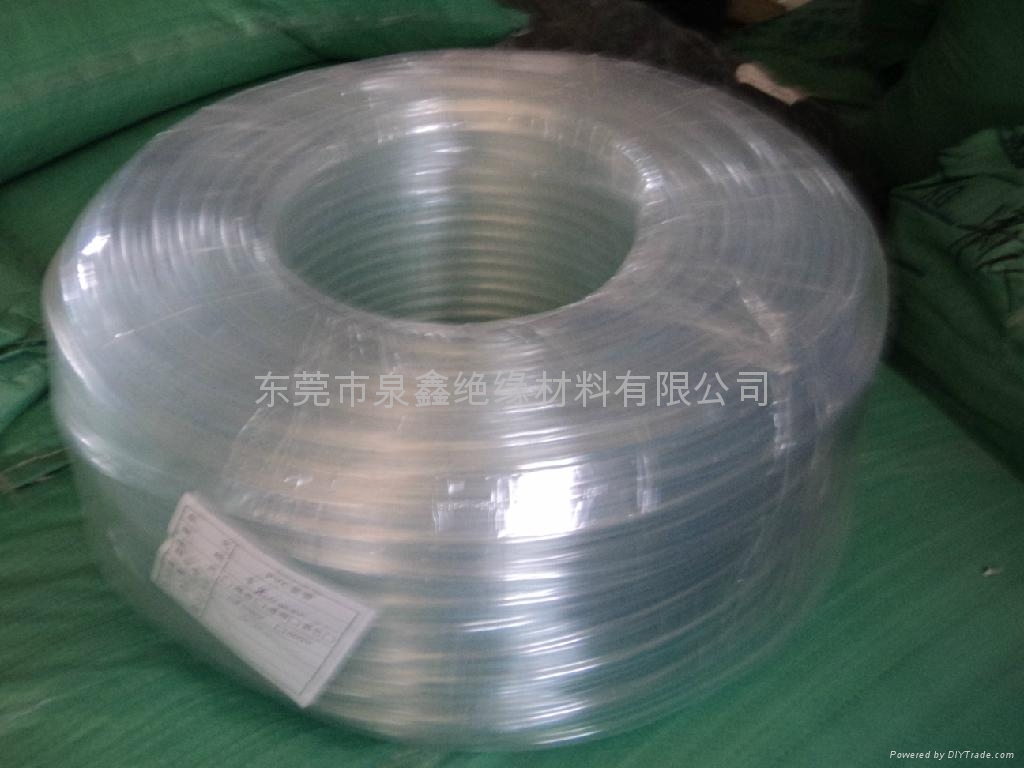

PVC transparent casing, the transparent PVC casing, transparent rubber hoses 1
Img 1

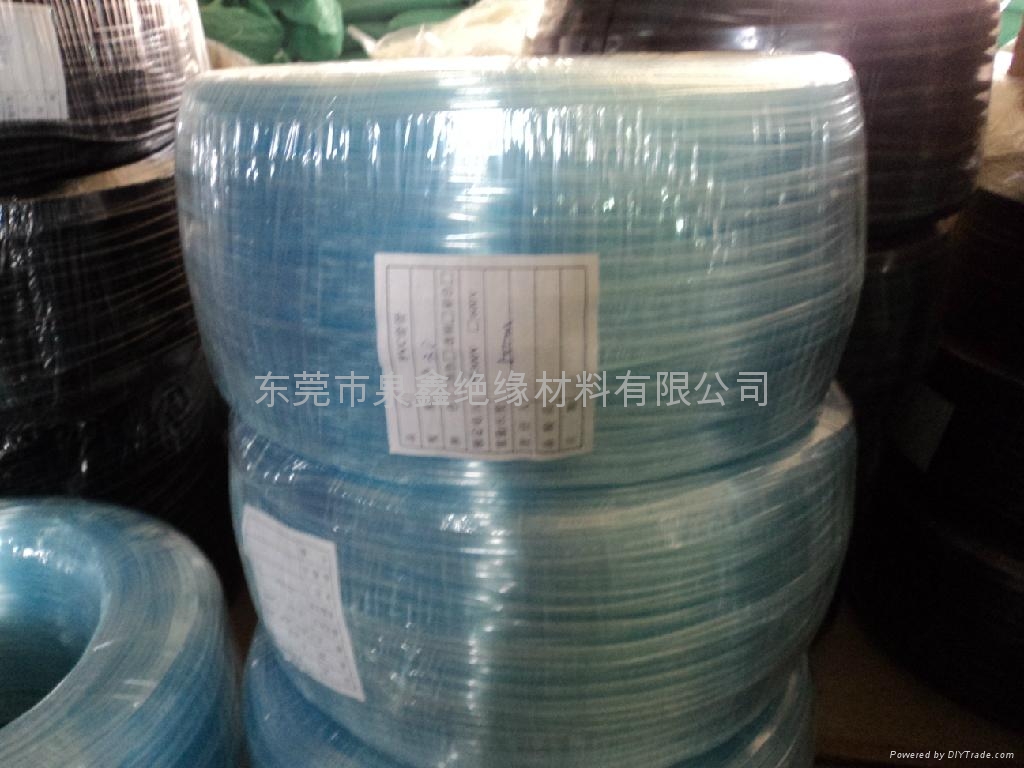

PVC transparent casing, the transparent PVC casing, transparent rubber hoses 2
Img 2
PVC transparent casing, the transparent PVC casing, transparent rubber hoses 3
Img 3
PVC transparent casing, the transparent PVC casing, transparent rubber hoses 4
Img 4
PVC transparent casing, the transparent PVC casing, transparent rubber hoses 5
Img 5
