| Model: | BNC-C-JY3-178B |
|---|---|
| Brand: | Futai |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | microwave connector , rf coaxial connector , BNC male connector |
| Price: |
-
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:12 Apr, 2024 |
The BNC connectors are for low power,quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad.They are widely used connect of the RF coaxial-cables in electronic equipment and instuments.Characteristic impedance 50Ω,75Ω.
We can produce the connector according to your drawing or requirement.

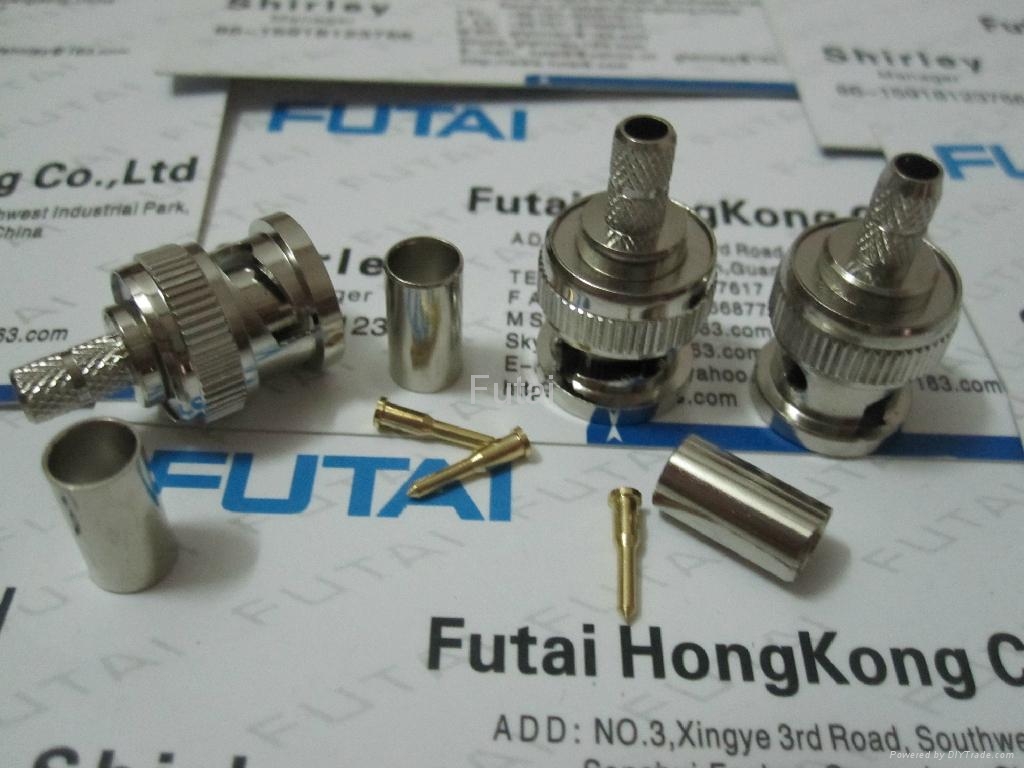

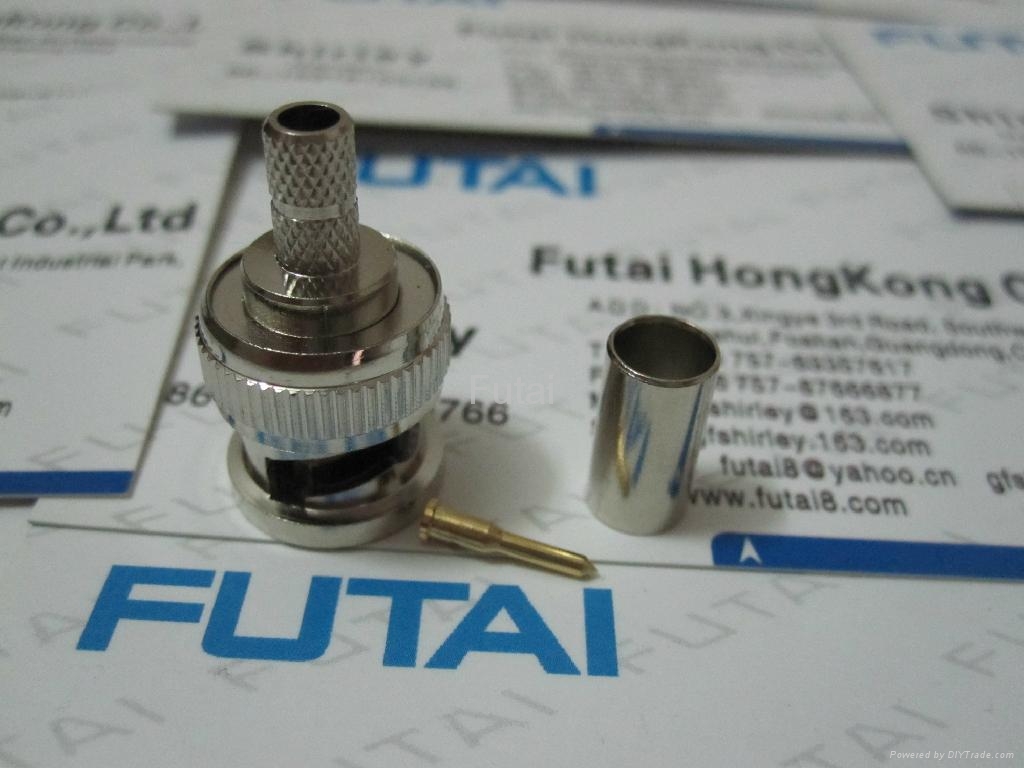

BNC Male Straight Crimp RF Coaxial Connector
|
Model |
FT-Connector-178B |
|
|
Major Technical Characteristics |
||
|
Type |
BNC-C-JY3-178B |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC~4GHz |
|
|
Center conductor retention force |
≥0.57 N |
|
|
Insertion Loss |
≤0.20dB/3GHz |
|
|
Insulation resistance |
≥5000MΩ |
|
|
Voltage Standing Wave Ratio |
Straight ≤1.22/3GHz |
|
|
Right angle ≤1.30/3GHz |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Cable |
RG174/RG316 |
|
|
Material & Plating |
||
|
Body |
Brass |
Nickle plated |
|
Pin contact |
Brass |
Gold plated |
|
Resilient contact |
Tin bronze |
Nickel plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber |
|

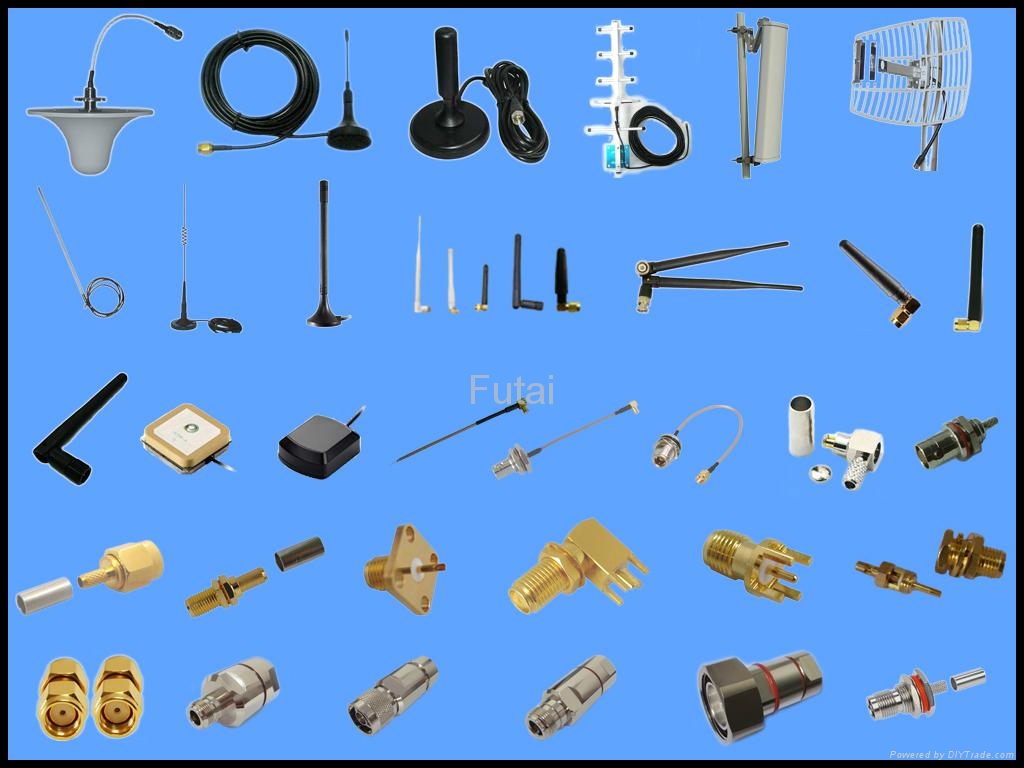

Our Company Other Products:
Futai HK Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
We are welcoming you to ask sample for testing ,welcome to our company website to do business. http://www.futai8.com http://futaihk.en.alibaba.com
| Payment Terms: | TT/Western Union |
|---|---|
