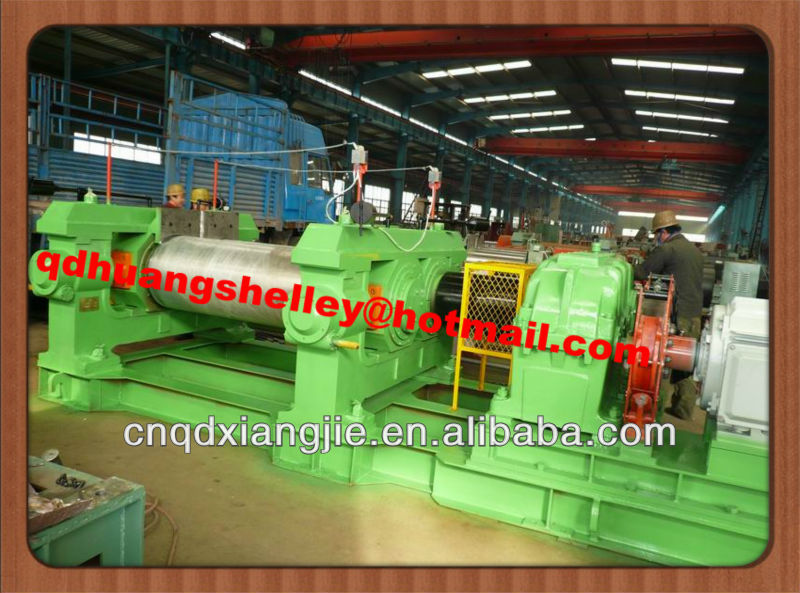

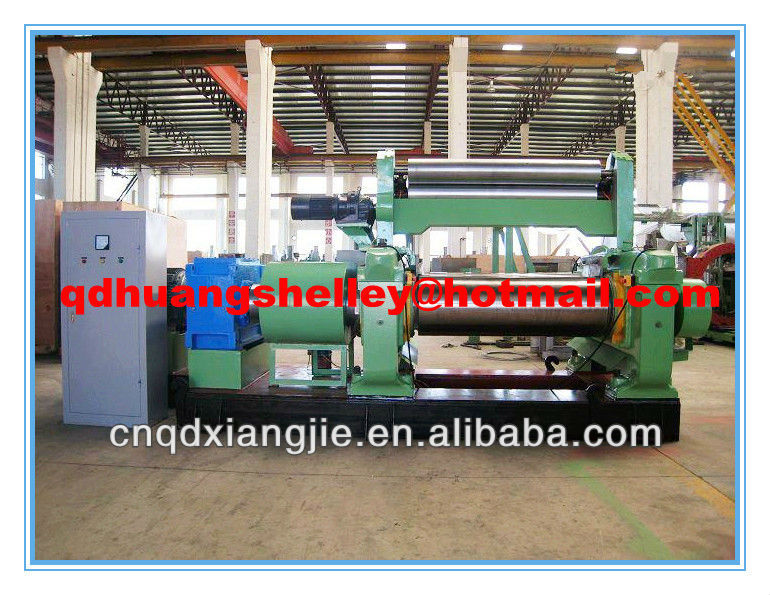

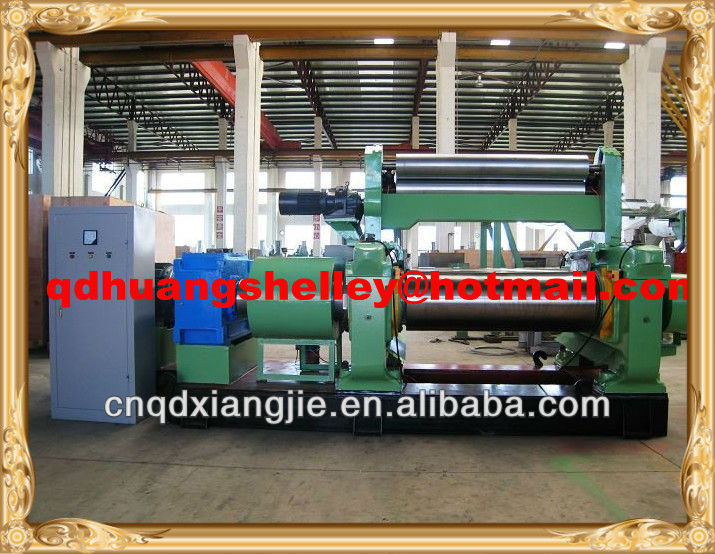

XK-400 Mixing Mill Machine
Product Description
The feature of rubber open mixing mill.
1.The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the main components from being damaged.
3. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5. The base frame is a whole framework, which is convenient for installation.
6. Stock bender for direct rubber sheet and knife to cut as your need to assemble.
7. Auto-lubrication sysytem for greese or oil and match bearing bush.
The parameter of rubber mixing mill
| Parameters/version | XK-160 | XK-250 | XK-400 | XK-450 | XK-560 |
| Roll diameter | 160 | 250 | 400 | 450 | 560 |
| Roll length | 320 | 620 | 1000 | 1200 | 1530 |
| Front roll surface speed(m/min) | 8.89 | 15.3 | 18.65 | 24.32 | 27.72 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.2 |
| Max. nip | 4 | 8 | 10 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 35-50 |
| Power(kw) | 5.5 | 18.5 | 37 | 55 | 90 |
| Size( l*w*h) (mm) | 1160*920*1370 | 3120*1322*1500 | 4350*1850*1780 | 5670*2390*1670 | 5845*2284*1978 |
| Weight(kg) | 1000 | 4000 | 7600 | 12000 | 23000 |
