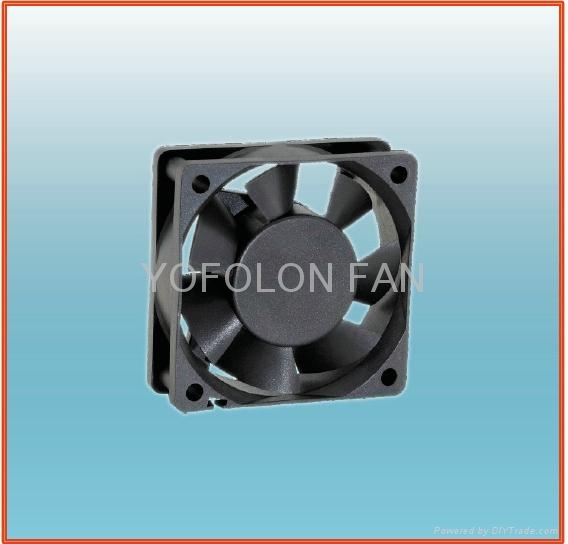

60x60x20mm 12V DC Brushless Fan

Model:	DC6020S12H
Brand:	YOFOLON
Origin:	Made In China
Category:	Computers & AV Digital / Computer Components / Cooling Fan & Heatsinks
Label:	dc cooling fan , dc fan , dc axial fan
Price:	US $0.6 / pc
Min. Order:	100 pc

Inquire Now

Member Information

Shenzhen Yofolon Electronic Co., LTD

Free MemberGuang Dong - China

Last Online:19 Apr, 2016

Product Description

MODEL:DC6020S/B12H
Size: 60X60X10mm
Frame: Plastic
Impeller: Plastic P. B. T.
Voltage: 12V.24V
Current: 0.09-0.16A
Power: 1.08-1.65W
Speed: 3600-5000RPM
Air flow: 11.4-21.5CFM
Pressure: 1.6-3.65(mmH2O)
Noise: 27-29.8dBA
Bear type: Sleeve, ball are available
Weight: 49G
Motor: Brushless DC, auto restart Impedance & polarity protected
Operation temperature: -20° C~80° C
Insulation Resistance: 10M At 500VDC between lead and frame
Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA
Operation Humidity: 20%~85%
Working voltage: Rated voltage± 15%
Life at 25oC: Ball bearing 50, 000hr and sleeve bearing 30, 000hr

Trademark:YOFOLON OR OEM

Packing:200PCS/Carton Carton Size: 42X32X26cm

Standard:CE ROHS SGS ISO9001

Origin:Shenzhen China

HS Code:8514599050

Production Capacity:5000PCS Per Day

Product Image

Img 1

Img 2
