50x50x10mm DC Brushless Fan 12V 24V 50mm dc fan

Model:DC5010S12H
Brand:YOFOLON
Origin:Made In China
Category:Computers & AV Digital / Computer Components / Cooling Fan & Heatsinks
Label:dc cooling fan , dc fan 12V , dc axial fan
Price: US $0.52 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Yofolon Electronic Co., LTD

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:10 Mar, 2015

Product Description

MODEL:DC5010S/B12H
Size: 50X50X10mm
Frame: Plastic
Impeller: Plastic P. B. T.
Voltage: 5V, 12V, 24V
Current: 0.04-0.22A
Power: 0.90-1.44W
Speed: 4300-6000RPM
Air flow: 9.0-13.5CFM
Pressure: 2.0-3.9(mmH2O)
Noise: 30.3-33.5dBA
Bear type: Sleeve, ball are available
Weight: 20G
Motor: Brushless DC, auto restart Impedance & polarity protected
Operation temperature: -20° C~80° C
Insulation Resistance: 10M At 500VDC between lead and frame
Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA
Operation Humidity: 20%~85%
Working voltage: Rated voltage± 15%
Life at 25oC: Ball bearing 50, 000hr and sleeve bearing 30, 000hr

Trademark:YOFOLON OR OEM

Packing:380PCS/Carton Carton Size: 32X30X25cm

Standard:CE ROHS SGS ISO9001

Origin:Shenzhen China

HS Code:8514599050

Production Capacity:5000PCS Per Day




Product Image

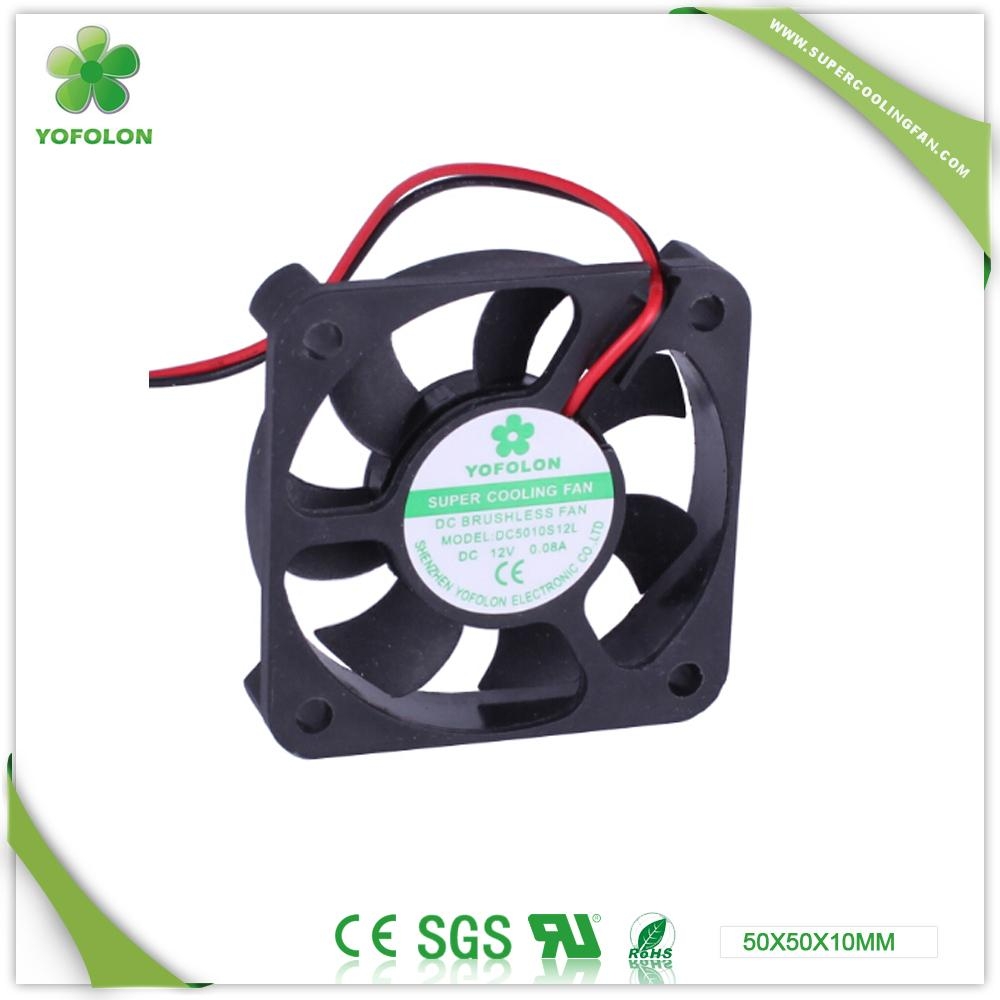

50x50x10mm DC Brushless Fan 12V 24V 50mm dc fan  1
Img 1
50x50x10mm DC Brushless Fan 12V 24V 50mm dc fan  2
Img 2
50x50x10mm DC Brushless Fan 12V 24V 50mm dc fan  3
Img 3
