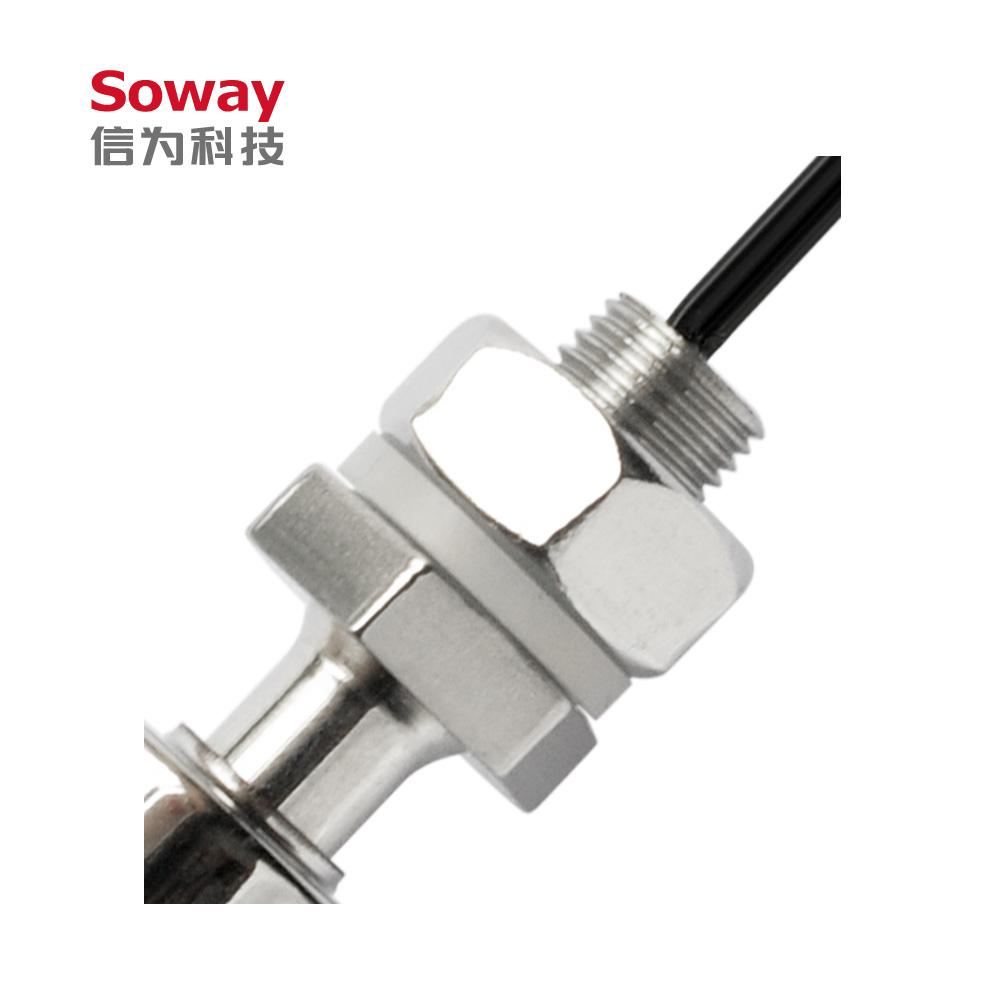

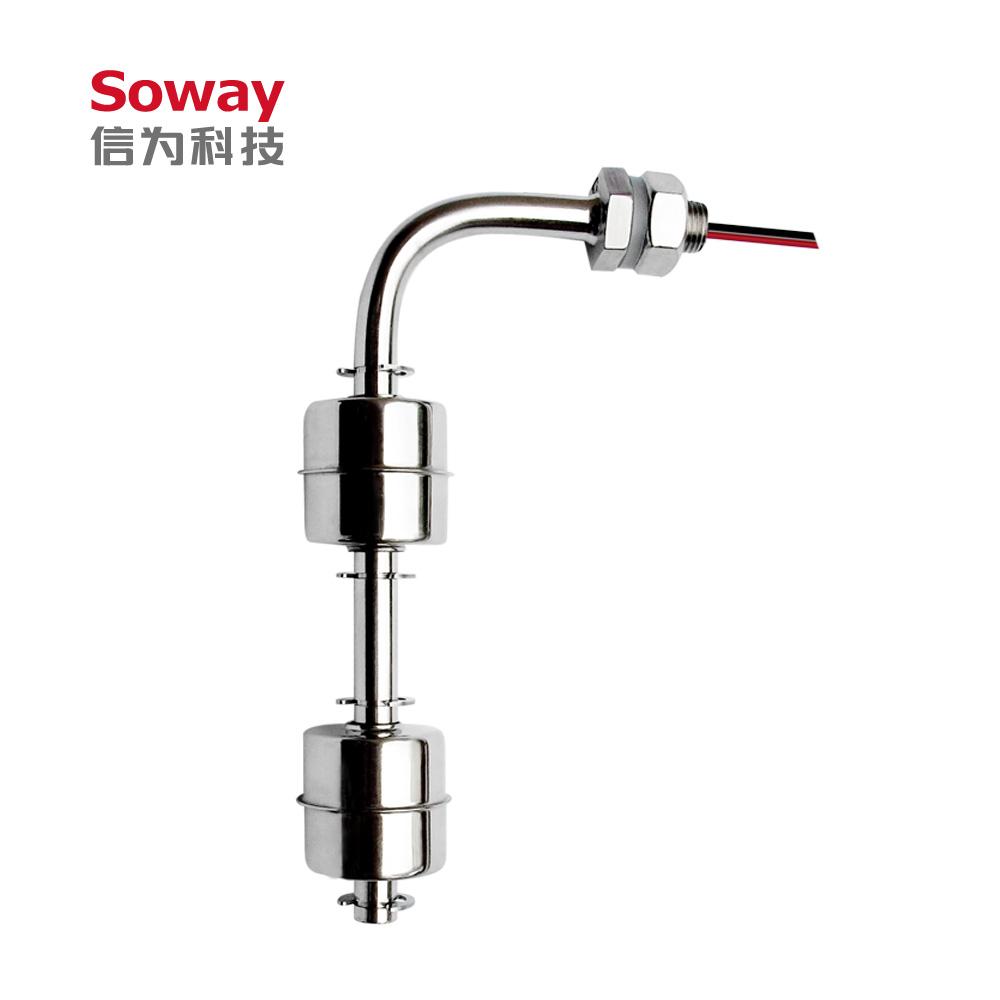

SF131 Series float level switches

Introduction

    Magnetic float-level switch principle is the float which link to rod equipped with a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field , thus triggered the reed switch which inner the rod working.Widely used in liquid level measurement, liquid level alarm and level security control field.

Features

• No standby power requirement
• Customer can defined activated range and connection
• enclosure material: stainless steel 304 or 316
• High stability, high reliability, high consistency

Applications

• Level control, level measurement Home appliance level detection
• Water cooler, coffee machine, water dispenser, humidifier, etc
• Container level detection

Dimensions and Operation Demonstration

Connection&Outlet&Electrical Parameter

Ordering Guide

Example:  SF13101–45–K1H1–M8P-S02
Vertical installation type stainless steel enclosure level sensor, rob length 45mm, switch output , normally open type, 1 group output, installation Thread M8, standard PVC cable, FBS102 float.
