| Model: | HOCM |
|---|---|
| Brand: | soway |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Sense Organ |
| Label: | flow measurement , Mass Flow meter , flow fuel sensor |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:19 Apr, 2024 |
Product Description
Abstracts

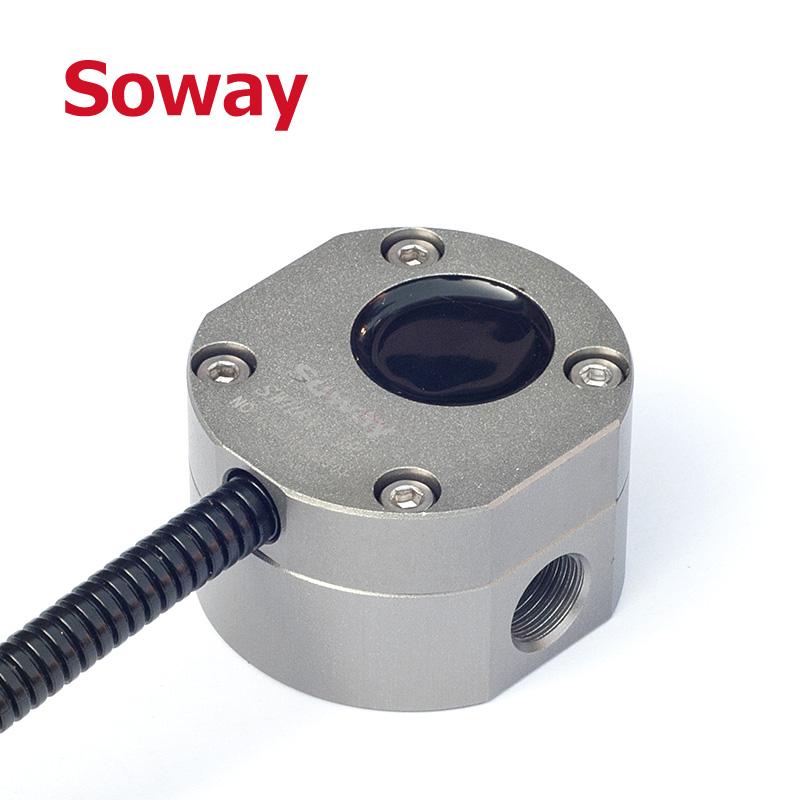

Fuel consumption instrument is using the positive displacement principle to dynamic monitoring vehicle fuel consumption, its measurement accuracy is not affected by bumpy road, display or totalizer Optional, comp leted set of flow meter could record the instantaneous flow and cumulative flow, total time etc., if connected with GPS, widely used in transport vehicle fuel consumption monitoring field.
Features
⚫Small size, light weight, good qu ake resistance.
⚫Accessories: varied mounting kits for different application
⚫High precision fuel consumption, calibration-free.
⚫Output：RS232，RS485，pulse signal.
⚫1.42 mL per pulse signal.
Application Fields
⚫Vehicle fuel consumption monitoring.
⚫Generator set fuel consumption.
Dimensions
Specification
|
Parameter |
Minimum value |
Maximum value |
Unit |
Test condition |
|
Supply Power |
3.8 |
24.0 |
VDC |
/ |
|
Output signal |
Open collector square wave pulse |
RS232 |
RS485 |
|
|
Signal load |
20.0 |
mA |
/ |
|
|
Model No |
HOCM 01 |
|
Material |
Aluminium alloy |
|
Area classification |
Exia IICT6 Ga |
|
Measure range |
(15-450) L/H |
|
Flow resolution |
1.42mL |
|
Measurement precision |
±1.0% |
|
Repeatability |
<±0.25% |
|
Max pressure |
3Mpa |
|
Working temperature |
-20~+80℃ |
|
Installation |
Vertical installation |
|
Viscosity range |
3~3000 CST |
Packing & Delivery
Each pieces put into po bag, then to a paper box, then 50 pieces into a master carton. The master carton will put on the storage rack and stored in our warehouse before delivery.
