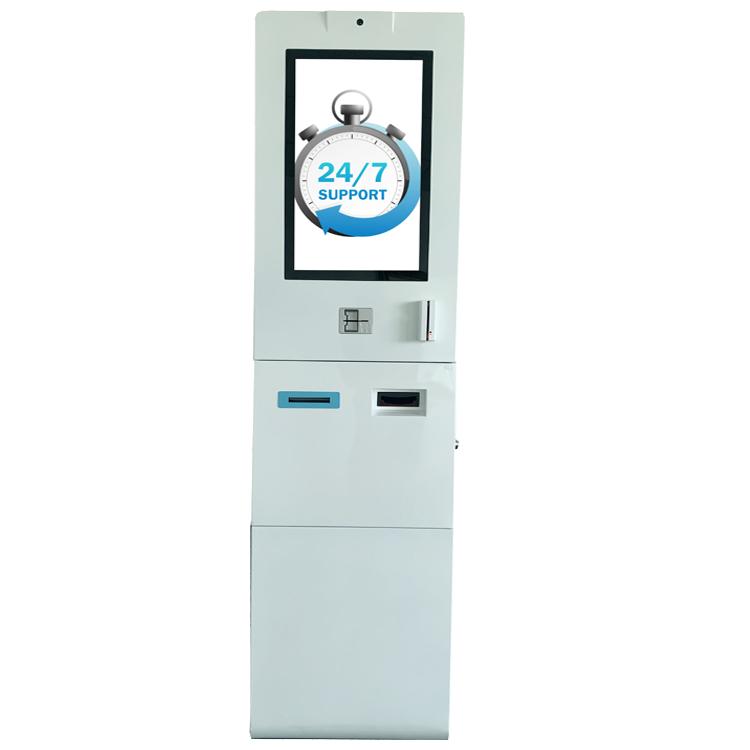

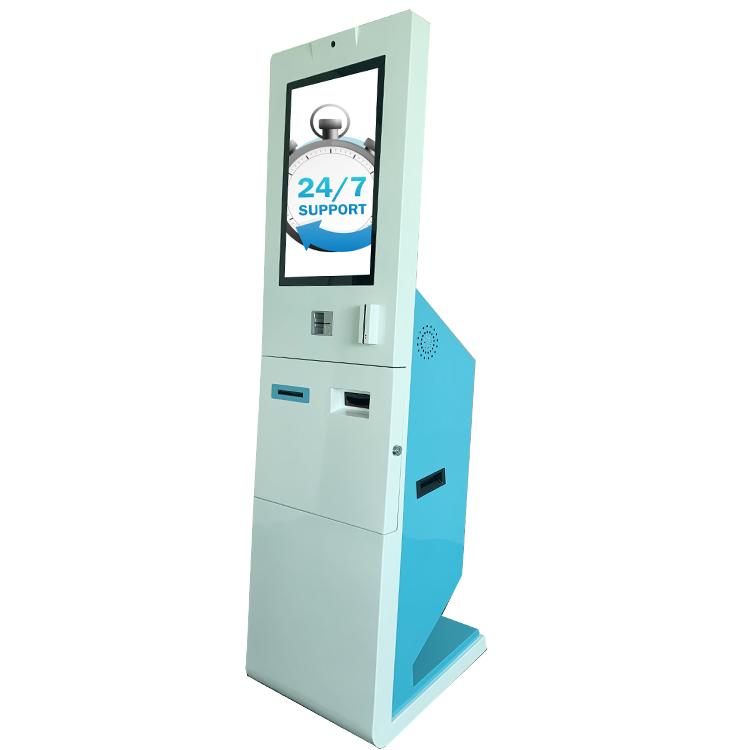

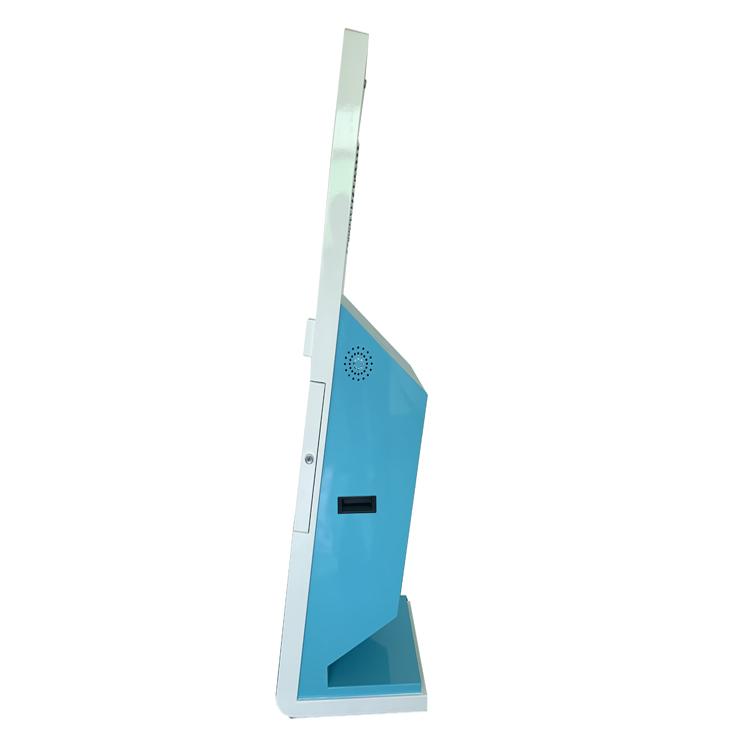

Interactive kiosk with touch screen
Usually you can install it for government service, Telecommunication service, Retail, Travel, Transportation, Hotel, University. It also offers service of inquiry, data collection and so on. More information as below. We can design many kiosks according to your requirement.
1. 19''durable steel floor stand kiosk cabinet
2. 19''100% new Grade A+ LED monitor
3. 19‘’water proof, anti dust, anti-vandal touch scree
4. Powerful Embedded PC, integrated in a steel box
5. operating system , internet access
Note: the above components could be order seperately, you are welcome to order monitor only, or cabinet only. More information, please feel free to contact me.
1) Touch Panel
a. Infrared touch panel
b. Resolution: 4096*4096
c. Deviation of Error: ±<1.0%
d. Surface Hardness: Mohs' hardness rating of 7
e. Hitting Life Expectancy: 50,000,000 cycle times
g. Support software: Windows, Linux, Android...
2) 19 inch LED monitor (100% new LG or Samsung monitor, Grade A+ monitor)
a. Resolution: 1280x1024
b. Brightness: 300cd/2
c. Contrast ration: 1000: 1
d. Contact Bounce: 5ms
e. Ratio: 4:3 or 16 : 9
f. lifelong: more than 50 000 hours
3) Powerful Computer
a. CPU: Intel J1900 2.0ghz CPU
b. low power and stable industrial mainboard
c. Storage: 120GB SSD, HDD(optional)
d. RAM: Kingmax DDRIII 4GB(optional)
e. Ports: USB ports, RS-232 ports, ports for mouse
f. load speaker, cooling fan, power supply...
4) Floor stand kiosk Frame:
a. 1.2mm~1.5mm cold rolled steel, durable, 2.0mm CRS available.
b. build in power control panel, and hi-fi-speaker.
c. RJ45 interface for internet access
The following devices are available:
1. Metal keyboard with touch pad or traceball, digital keyboard with 16 keys
2. Bluetooth connection, 3G modem, GPRS, Wifi
3 . Card Reader: RFID card reader, Non touch card reader, IC card reader, Magnetci card swipe
4. Metal keyboard with touch pad, digital keyboard available.
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test at least 24 hours for each kiosk.
There are 5 layers total for kiosk, the first one is antistatic film, the 2nd is foam, the 3rd is carton box, and last one is wooden case for exporting.
1. One year warranty for the whole machine.
2. You are welcome to contact us via online contact information any time you like, we will back to you as soon as we can.
|Price Terms:||Exw price
|Payment Terms:||TT/LC/Western Union
|Packing:||Wooden case for exporting
|Lead Time:||Usually 15 working days after deposit received
