| Model: | ST1000 |
|---|---|
| Brand: | TianYing |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | zoom CCTV camera , spotter CCTV , CCTV camera |
| Price: |
US $15000
/ pc
|
| Min. Order: | 3 pc |
| Last Online:16 May, 2025 |
China TianYing ST1000 AI surveillance CCTV camera features a compact 4MP 14~1000mm pure optical zoom lens TV camera captures quite clear images and offers good reliability with affordable price.
The camera has multiple image enhancement, intelligent behavior analysis, intelligent detection alarm etc function, accurate practical control circuits can adjust rear focal length, specify focal length etc, combined with the reliable image stabilization camera core, that get the appropriate 2688 x 1520 resolution image effect.

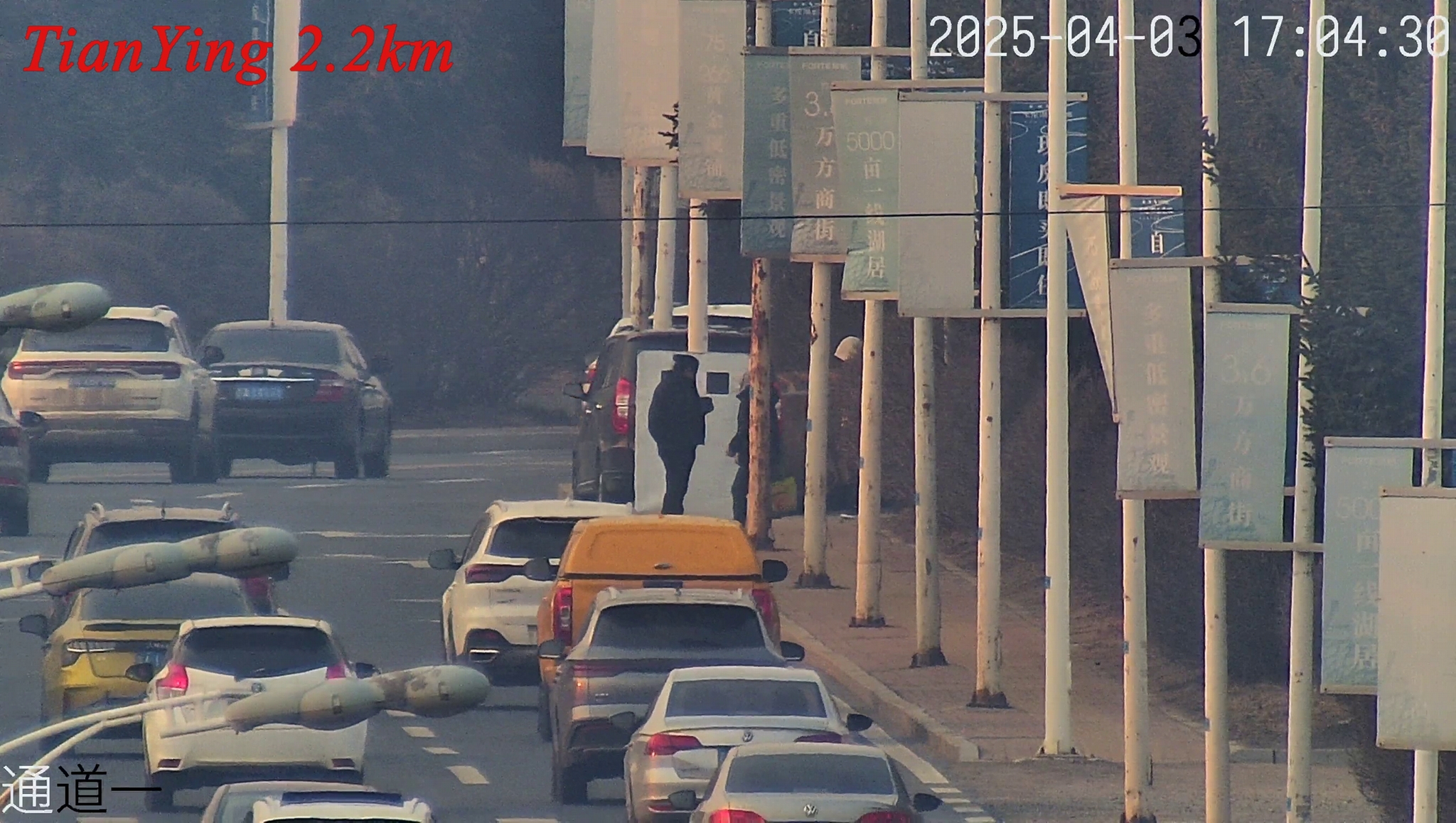

The ST1000-4MP is read the driving license plate 2200 meters and identify the person's face 2200m with quite clear iamge, in addition, its features allow users to reject false and exaggerated propaganda.
2.2km read the driving license plate security 4MP 14~1000mm zoom CCTV Camera specifications:
| Model | ST1000 | |
| Performance | ||
| Detection range | Approx 14km for human | |
| Approx 26km for 6m x 3m vehicle/boat | ||
| Recognition range | Approx 9km for human | |
| Approx 17km for 6m x 3m vehicle/boat | ||
| Identify the person's face | Approx 2.2km | |
| Read the driving license plate | Approx 2.2km | |
| Camera | ||
| Image Sensor | 1/1.8 inch (2.9 microns) CMOS, 4MP 2688X1520 | |
| Min. Illumination | Color: 0.0005Lux; B/W: 0.0001Lux; | |
| Electronic delayed shutter | Suporrt | |
| Frame Rate | 50Hz/60Hz. | |
| Signal to noise ratio | ≥55dB (AGC OFF) | |
| Day/Night Switch | Automatic ICR filter switching | |
| Optics | ||
| Wavelength range | 400nm ~ 950nm (0.4~0.95μm): | |
| 0.4~0.7μm visible, | ||
| 0.7~0.95μm NIR, | ||
| Field of View ° | 31.9° x 18° ~ 0.44° x 0.25° | |
| Focal Length | 14mm~1000mm continuous optical zoom. | |
| Aperture | F6~F9 | |
| Close-up distance, m | Approx 5m (can be 1m) | |
| Focus | Auto, manual | |
| Image | ||
| Image Settings | Brightness, contrast, saturation, sharpness, chroma, adjustable via browser | |
| Back light compensation (BLC) | support, customizable area | |
| Strong light suppression | support, eclipse function | |
| Exposure mode | automatic exposure/manual exposure/anti-drag/Low light priority/high light priority/aperture priority/shutter priority/lock mode | |
| Day/Night Switch mode | Auto, manual, photoresistor, image algorithm, timing, serial trigger | |
| 3D Noise Reduction | Support | |
| Picture overlay | support BMP 24-bit image overlay, can customize the area | |
| Permeability | automatism, area selection | |
| Region of Interest (ROI) | supporting three bit streams | |
| Wide Dynamic Range(WDR) | Automatic/manual, manual level is adjustable | |
| Electronic image stabilization (EIS) | support, sabilization level can be adjusted | |
| Electronic defog | automatic, manual, manual mode defog level can be adjusted | |
| Optics defog | Support | |
| Serial command | Support rear focal adjustment, specify focal length etc function | |
| AI detection and alarm | Support area intrusion, cross-border detection, behavior analysis, sound detection and other alarms | |
| AI recognition | Can accurately identify human figures, vehicles and other targets | |
| Code | ||
| Coding format | H.265 / H.264，H.265+/H.264+ | |
| Video bit rate | 32kbps~32Mbps | |
| Audio compression standard | G.711A/G.711U/G.726/AAC | |
| Audio compression bit rate | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) | |
| Networking | ||
| Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
| Programming interface | ONVIF/GB28181 protocol, support SDK and third-party platform access | |
| Compatible browser | Explorer 6 or later | |
| Storage function | Micro SD/SDHC /SDXC card (256 GB), Disconnected local storage, NAS(NFS,SMB, and CIFS) supported | |
| Remote monitoring | support mobile APP remote view real-time picture, playback video, receive alarm information | |
| Input / Output | ||
| Power supply | DC 12V, max 10W. | |
| Video output | HDMI/SDI/CVBS/RJ45 are output at the same time | |
| Audio interface | 1 x 3.5mm JACK audio input, 1 x 3.5mm JACK audio output | |
| Alarm interface | 2 x alarm input, 2 x alarm output | |
| Control interface | 1pc RS485, 1pc RS232 | |
| Environmental Adaptability | ||
| Operating Temperature | -40°C to +60°C, | |
| Working humidity | ≤ 95% | |
| Physical | ||
| Dimensions | Approx 11250 cubic centimeters with house | |
| Weight with house | ≤ 5.5kg | |
| Packing and Warranty | ||
| Standarding accessories packing | hard case, user's manual, video cable, power cable | |
| Warranty | 1 year warranty and free lifetime maintenance. | |
| Note: *- Technical information is subject to change without notice. ** -Depending on the region of sale.
*** - Option add normal house and sealing house. |
||
