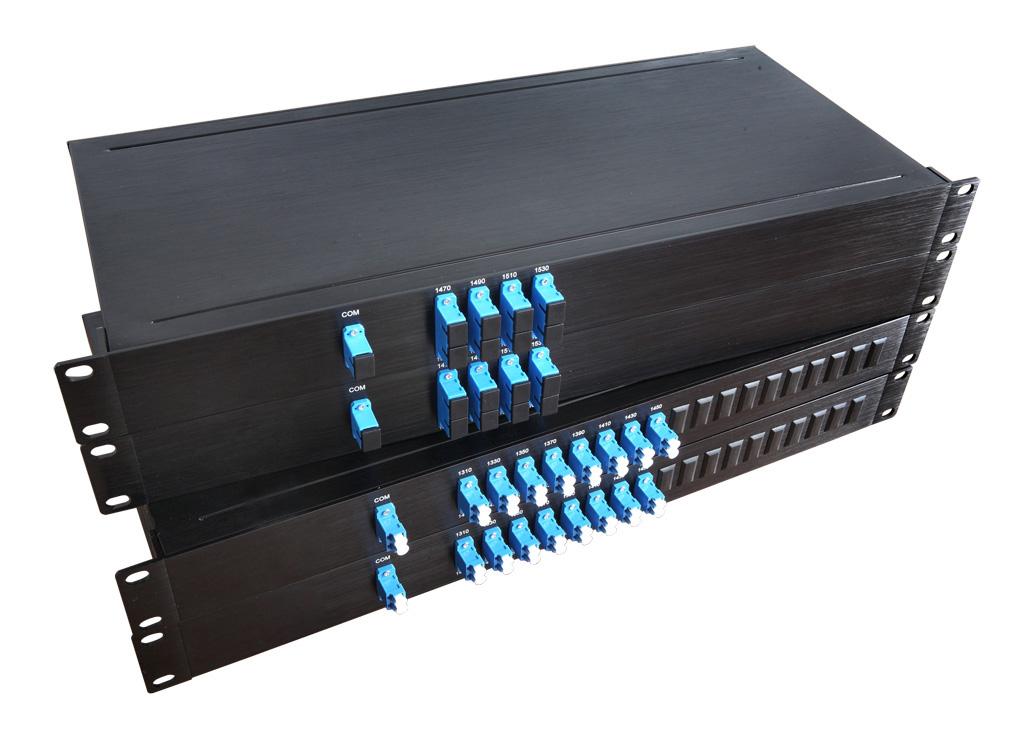

| Model: | CWDM |
|---|---|
| Brand: | GEZHI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | CWDM , DWDM , multiplexer |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:13 Nov, 2017 |
· Low insertion Loss
· wide pass band
· High channel Isolation
· High stability ability
· Epoxy free on optical path
· Access Net work
Applications
· Line Monitoring
· WDM Network
·Telecommunication
·Cellular Application
·Fiber Optical amplifier
·Access Network
Prameter 4 Channel 8Channel 16Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm 1270 ~ 1610
Center Wavelength Accuracy(nm) ±0.5
Channel Spacing (nm) 20
Channel passband (-0.5dB bandwidth) (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤4.5
Channel Unifority dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) <0.3
Adjacent N/A >30 N/A >30 N/A >30
Isolation (dB) Non-adjacent N/A >40 N/A >40 N/A >40
Insertion Loss Temperature Sensitivity (dB/a ) <0.005
Wavelength Temperature Shifting (nm/a ) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Disersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Operating Temperature (a ) -5 ~ +75
Storage Temperature (a -40 ~ +85
Package Dimension (nm) L100xW80xH10 L142xW102xH14.5
