YIHUA 852D+(Diaphragm pump) Hot air rework station

Model:YIHUA 852D+
Brand:YIHUA
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:soldering station , solder station , desoldering station
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Guangzhou Yihua Electronic Equipment Co., Ltd.

Free MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:11 May, 2017

Product Description

*YH-852D+ (Diaphragm pump) Hot air rework station  Handpiece



Power consumption



600W

Gun temperature range

100-450oC

 Soldering Iron Temperature range

200-450oC

Gun type

Diaphragm pump

Air flow:28L/MIN

 Soldering Iron type

Black handle

Gun heater material

Nickel alloys

Soldering Iron heater material

Common heater

Gun heater resistance

90Ω

Soldering Iron heater resistance

15Ω





*what difference for brushless fan and diaphragm pump?
diaphragm pump the air are focus , airflow are 24~28L/min. brushess fan the air are soft ,airfolw are 120L/min.



Model NO.

 Inner box

Dimension(cm)

Outer box

Dimension(cm)

QTY

Product weight

YH-852D+  (Diaphram pump)

32*27*19.8

56*34*60

6PCS

4.27kg



  Remark: Specifications and design subject to change without notice

*MAIN FUNCTION

1.SAMSUNG microcomputer control,warming-up quickly.

2.. Adjust the air flow and temperature control rotation.

3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.

4.Would replace the part if the resistance value is incorrect.

5.When the temperature is less than 70C, can stop rotation automatically.

6.Intelligent system that could alarm , Fault detection automatically

7.High-quality resistance good for long service life

8. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

9.Intelligent detection and cool airflow features.

10.Green lines and high-quality silicone body heat good for extend life and save power.



Whats in the box :
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzels
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units




It is  retails price. A lot quantity pls inquiry us,we will offer the compete price and best shipping fee.

Please email us with any questions, our hard-working staff will answer every email in no time!


Product Image

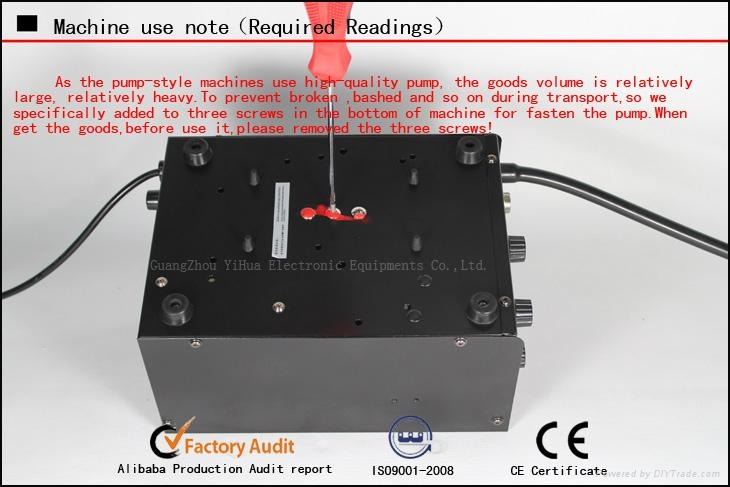

YIHUA 852D+(Diaphragm pump) Hot air rework station 1
Img 1

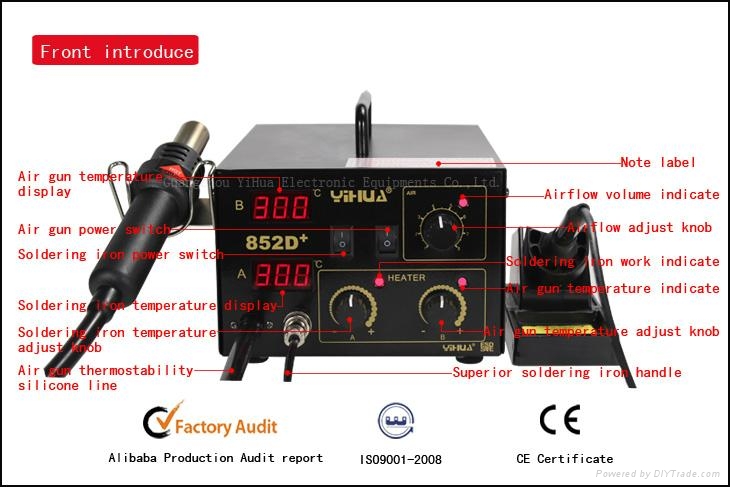

YIHUA 852D+(Diaphragm pump) Hot air rework station 2
Img 2

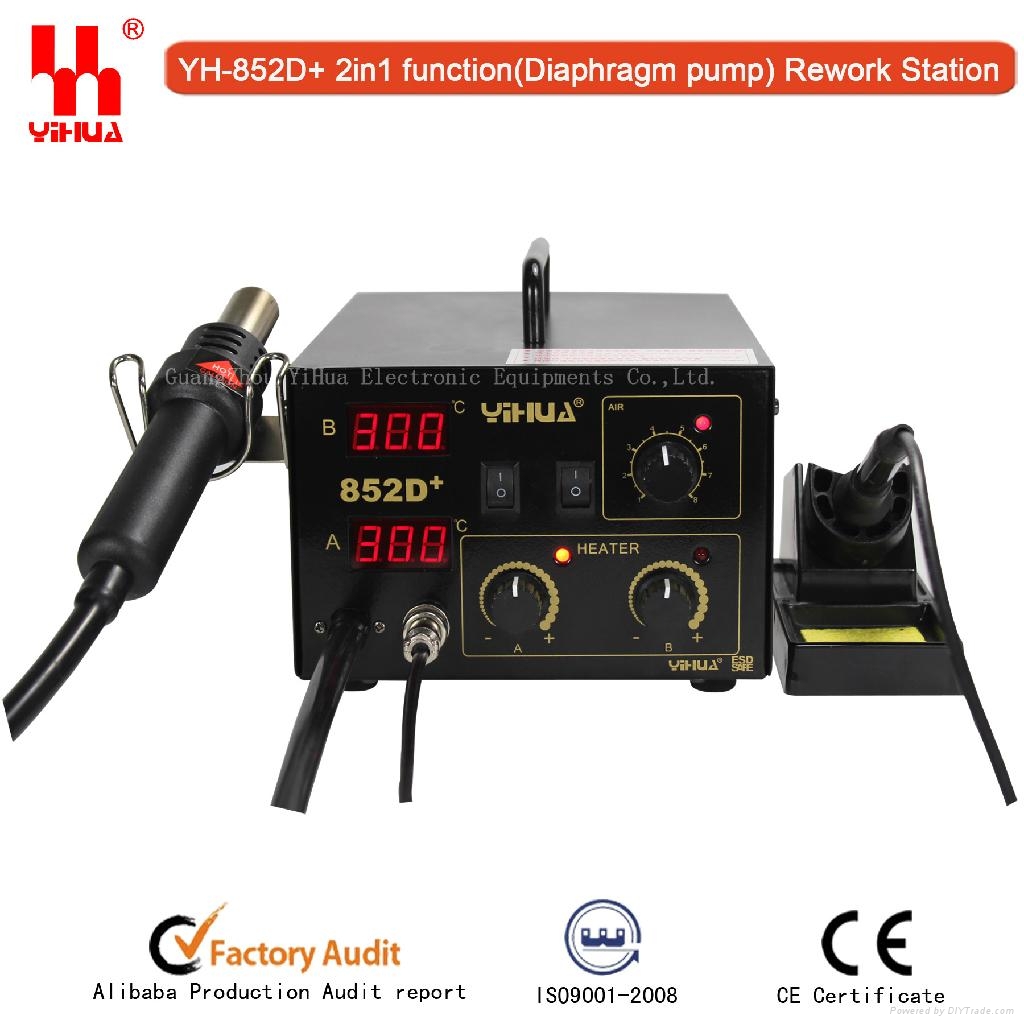

YIHUA 852D+(Diaphragm pump) Hot air rework station 3
Img 3

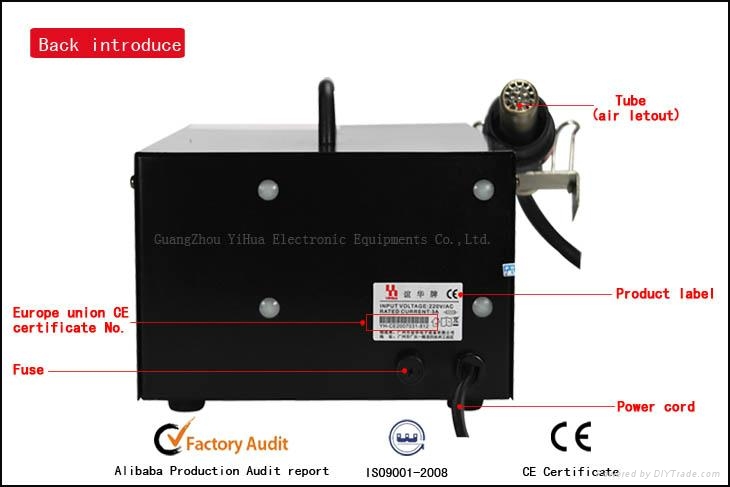

YIHUA 852D+(Diaphragm pump) Hot air rework station 4
Img 4

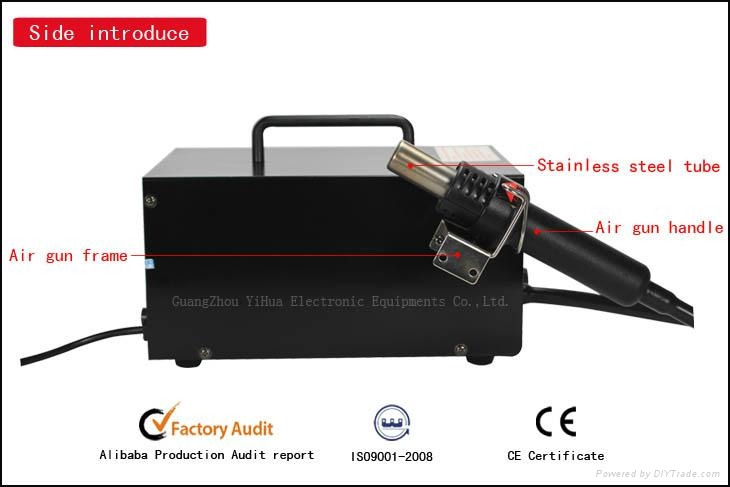

YIHUA 852D+(Diaphragm pump) Hot air rework station 5
Img 5
