| Model: | - |
|---|---|
| Brand: | YIHUA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | soldering station , rework station , de-soldering station |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:11 May, 2017 |

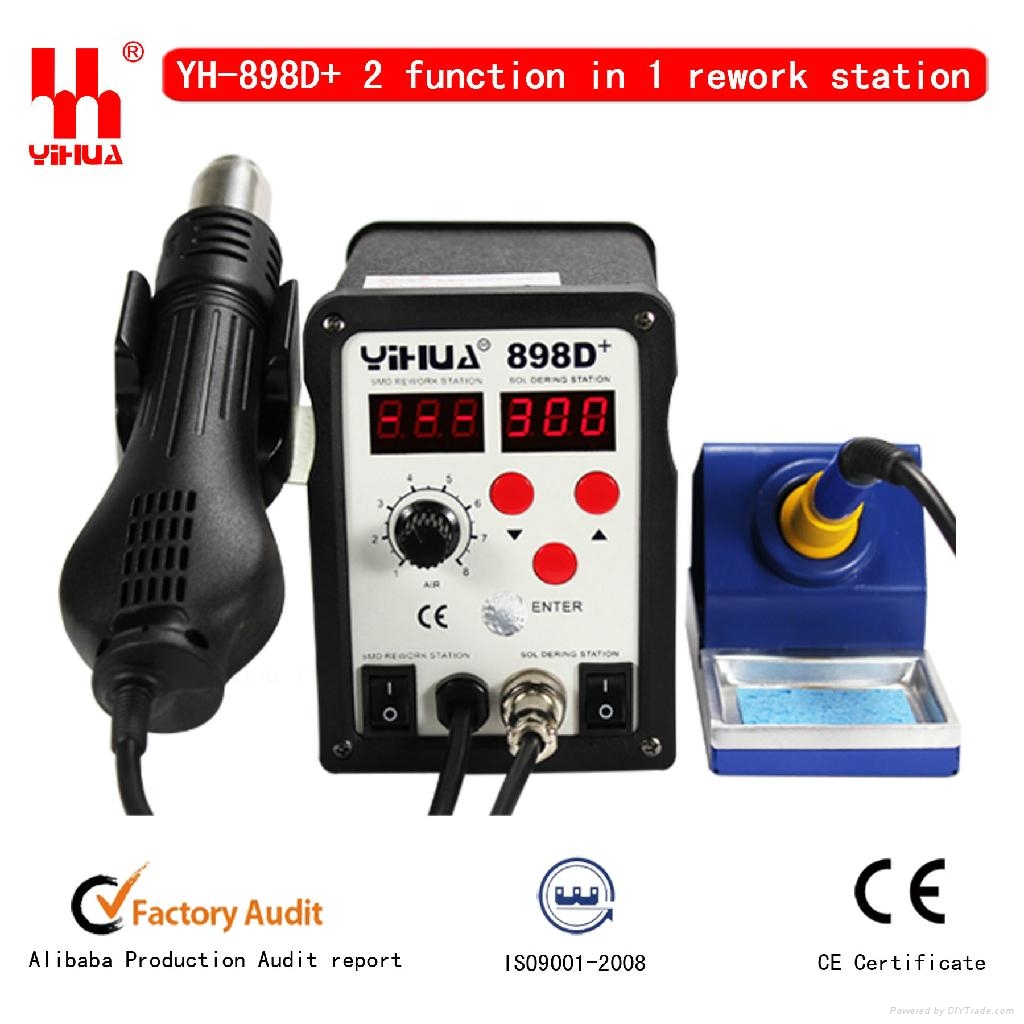

YIHUA 898D+ SMD rework station Handpiece
|
Power consumption
|
720W Air flow:120L/MIN |
||
|
Gun temperature range |
100-450oC |
Soldering Iron Temperature range |
200-450oC |
|
Gun type |
brushless fan |
Soldering Iron type |
Blue handle |
|
Gun heater material |
Ferro-Alloys |
Soldering Iron heater material |
HAKKO heater |
|
Gun heater resistance |
74Ω |
Soldering Iron heater resistance |
3.5~4.1Ω |
|
Model NO. |
Inner box Dimension(cm) |
Outer box Dimension(cm) |
QTY |
Product weight |
|
YH-898D+ |
26*16.5*14.8 |
54*35*31 |
8pcs |
3.5kg |
Remark: Specifications and design subject to change without notice

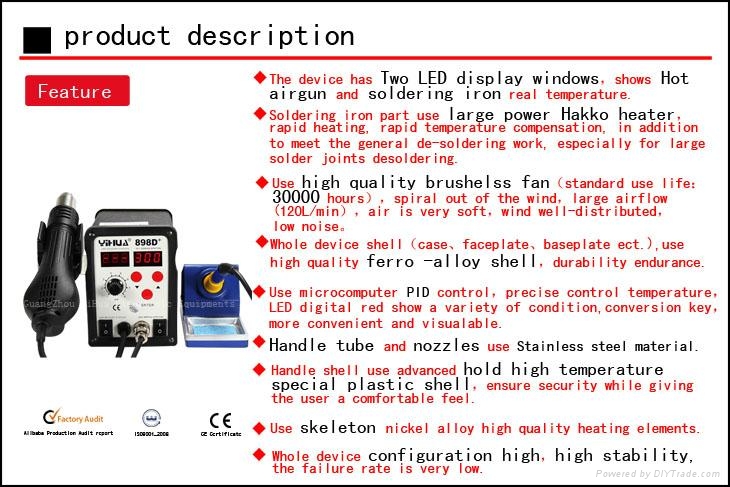

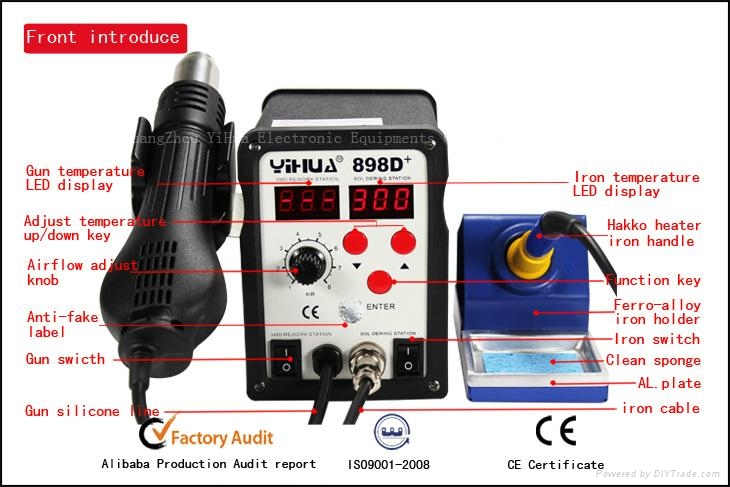

1.Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the air flow and temperature control rotatin.
4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70C, can stop rotation automatically.
7. Intelligent system that could alarm , Fault detection automatically.
8.This product is ESD-protected.
9.High-quality resistance good for long service life
10. Shell using alloy material, elegant appearance.
11. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
12. Intelligent detection and cool airflow features.
13.Green lines and high-quality silicone body heat good for extend life and save power.
Whats in the box :
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzle (Bayonet stainless steel nozzle)
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units
And we have black appearance and blue appearance for your choice
