Expanded Graphite Packing

Model:ZR-200H
Brand:SINSTON
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Sealing & Gaskets
Label:graphitepacking , nomexfiberpacking , gfopacking
Price: ¥18 / pc
Min. Order:10000 pc
Inquire Now Add to Basket

Member Information

Detail

Cixi Sinston Sealing Material Factory

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:10 May, 2021

Product Description

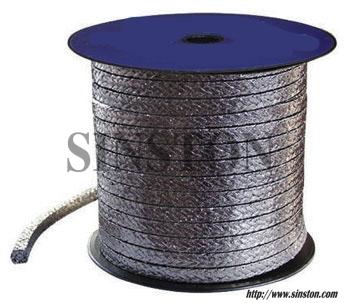

SINSTON ZR-200H  Expanded Graphite Packing

Description: Braided from low-sulphur expanded graphite yarns, which are reinforced by cotton fiber. It has a very low friction, does not damage shafts or stems. It shows good thermal and chemical resistance and high elasticity.

SINSTON ZR-200Z--Flexible Packing with Corrosion Inhibitor

Corrosion inhibitor acts as a sacrificial anode to protect the va e stem and the stuffing box.

Other reinforcement materials are also available.
Glass fiber--------High strength, lower cost
Carbon fiber------Less weight loss

APPLICATION :

SINSTON ZR-200H & SINSTON ZR-200Z is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in va es, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital.

Precaution: in oxidizing environment.

Recommendation: Use preferably with SINSTON  ZR-455 high carbon fiber anti-extrusion packing rings.

SERVICE LIMITS:



Rotating

Reciprocating

Va es

Pressure

20 Bar

100Bar

300Bar-

Shaft speed

20m/s

2m/s

2m/s

Density

1.0~1.3g/cm3 (+5% for ZR-200Z)

Temperature

-220~+5000C(+5500C with steam)

PH range

0~14

FORMS OF SUPPLY:

in coils of 2 to 5 kg, other package on request.


Product Image

Expanded Graphite Packing 1
Img 1
Expanded Graphite Packing 2
Img 2
Expanded Graphite Packing 3
Img 3
Expanded Graphite Packing 4
Img 4
Expanded Graphite Packing 5
Img 5
Expanded Graphite Packing 6
Img 6
