PTFE enveloped Non-asbestos gasket

Model:ZR-G140
Brand:SINSTON
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Sealing & Gaskets
Label:PTFE gasket , PTFE sheet , PTFE packing
Price: ¥10 / pc
Min. Order:20 pc
Inquire Now Add to Basket

Member Information

Detail

Cixi Sinston Sealing Material Factory

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:07 May, 2021

Product Description

SINSTON ZR-G140 PTFE Enveloped Gasket







Type & Structure
No. Cross secrtion Description
A V Type,
PTFE dise slit in center from outside
B U Type,
PTFE type heat sealed at one joint
C L Type,
PTFE sheet machine cut to envelope form

Service Range
Material of Jacket Cross section Temperature
( °C )
Pressure
( Mpa)
Asbestos Joint Sheet 150 1
Non-asbestos Joint Sheet 200 2
Asbestos Joint Sheet between layers of Asbestos millboard 220 2.5
Non-asbestos Joint Sheet between layers of Non-asbestos millboard 220 2.5


Product Image

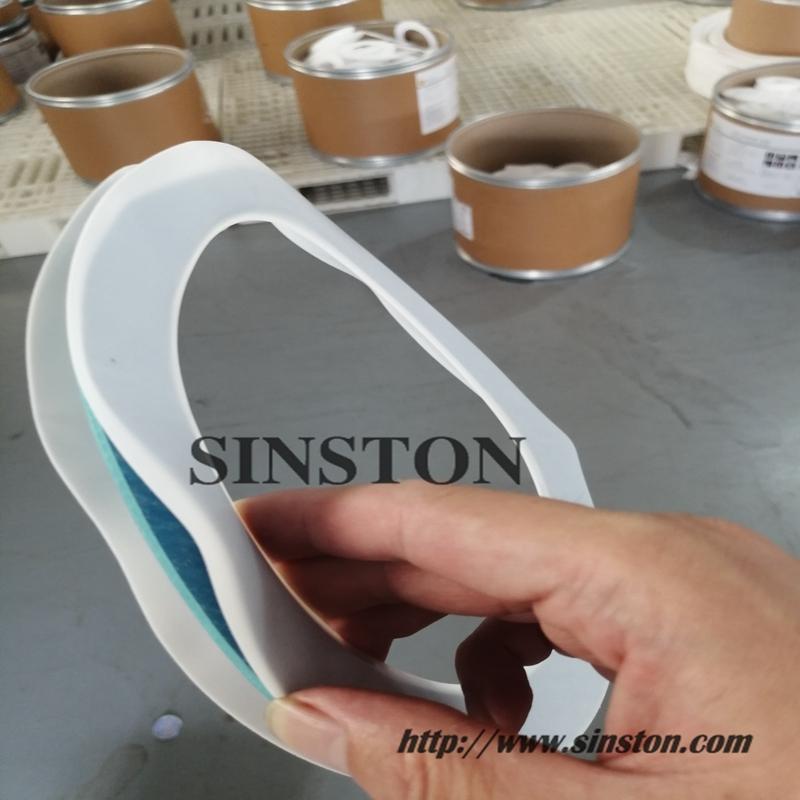

PTFE enveloped Non-asbestos gasket 1
Img 1

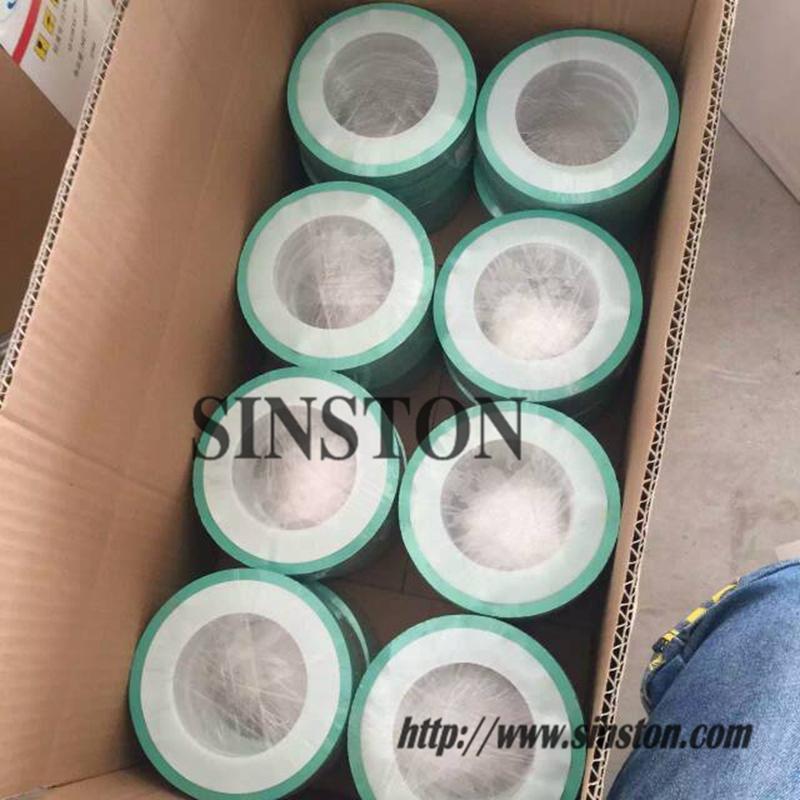

PTFE enveloped Non-asbestos gasket 2
Img 2

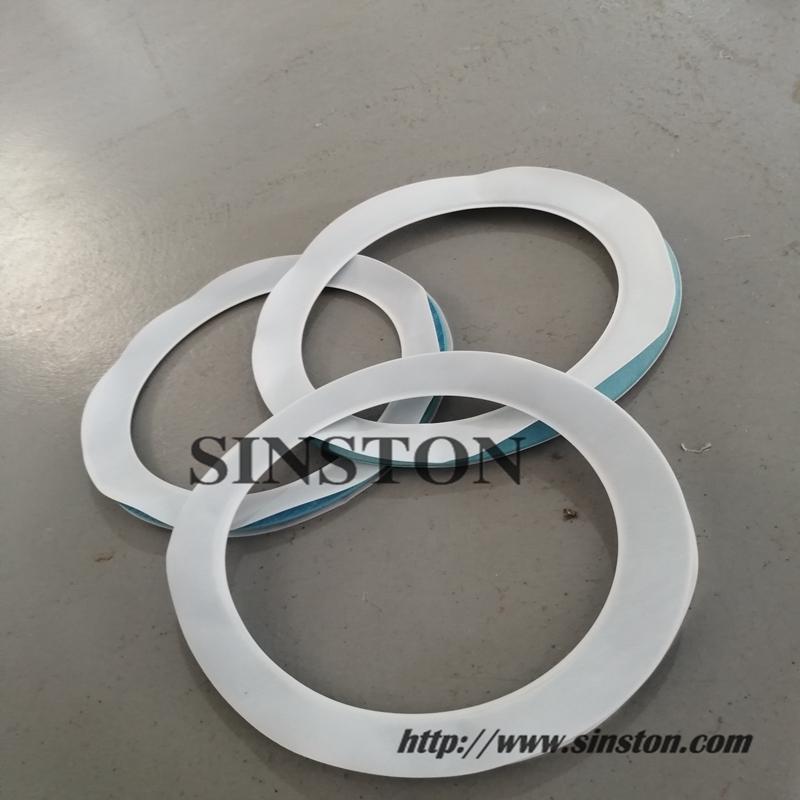

PTFE enveloped Non-asbestos gasket 3
Img 3
PTFE enveloped Non-asbestos gasket 4
Img 4
PTFE enveloped Non-asbestos gasket 5
Img 5
PTFE enveloped Non-asbestos gasket 6
Img 6
PTFE enveloped Non-asbestos gasket 7
Img 7
PTFE enveloped Non-asbestos gasket 8
Img 8
PTFE enveloped Non-asbestos gasket 9
Img 9
PTFE enveloped Non-asbestos gasket 10
Img 10
PTFE enveloped Non-asbestos gasket 11
Img 11
