| Model: | 6105AZLD |
|---|---|
| Brand: | WEIFANG |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Power & Generating Sets |
| Label: | mounting genset , trailer generator se , diesel generator CO. |
| Price: |
US $4500
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: | Last Online:06 Jul, 2016 |

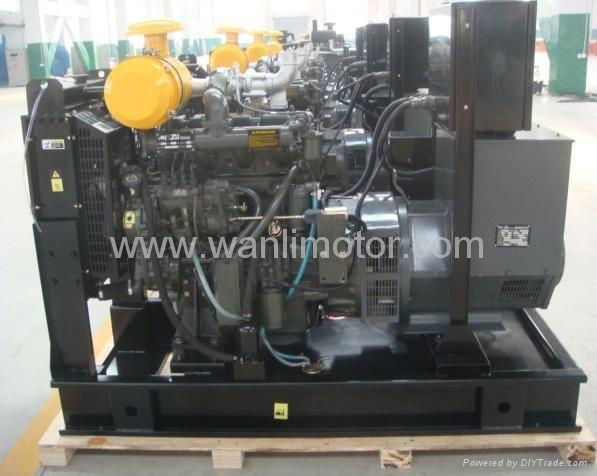

diesel generator
1.powered by weichai diesel engine
2.marathon alternator
3.CE certificate
4.AC three phase,50Hz,1500rpm
20kw--100kw Weichai brand diesel generator
diesel generator
1.powered by weichai diesel engine
2.marathon alternator
3.CE certificate
4.AC three phase,50Hz,1500rpm
| Diesel Generator specification | ||
| 1 | Model Number | PFGF |
| 2 | Output Type | AC Three Phase |
| 3 | Speed | 1500rpm |
| 4 | Frequency | 50hz |
| 5 | Rated Power | 20kw--100kw |
| 6 | Rated Voltage | 400/230v |
| 7 | Rated Current | 40A--200A |
| 8 | Certification | CE,ISO,GOST |
| 9 | Basic infornation | 230 / 400V AC, 0.8pF three-phase and four wires alternating current output |
| 10 | Color | Red,black,yellow,gray,blue |
| 11 | Protection Grade | IP21/23 |
| 12 | Insulation Grade | H/H |
| 13 | Regulator | AVR |
| 14 | Frequency at stable state: | <0.5% |
| 15 | Frequency deviation at instantaneous state: | ≤+10% |
| 16 | Frequency return time: | ≤3s |
| 17 | Voltage deviation at stable state: | ≤±1% |
| 18 | Voltage deviation at instantaneous state: | ≤+20% |
| 19 | Voltage return time: | ≤4s |
| 20 | Voltage modulation: | ≤0.3% |
| 21 | Short circuit protection: | MCCB air switch |
| 22 | Filter system: | oil, fuel and air filter |
| 23 | Delivery time: | 7--30 days |
| 24 | Warranty: | 1000hours/ 1 year |
| 25 | Package: | Plastic wrapping(FREE)/plywood case |
| Engine and Alternator specification | ||
| 1 | Engine | Weichai |
| 2 | Engine type: | in line four-stoke, wet cylinde liner, direct injection |
| 3 | Cooling system | water cooling |
| 4 | Start | Electric start |
| 5 | Alternator | Marathon,stamford,engga, |
| 6 | Alternator type | brushless, self-excitation,50Hz, 1500rpm |
| 7 | Excitation | self-excitation |
Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) CHNT air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
| Payment Terms: | BY T/T or L/C at sight. please contact with us for the detail |
|---|---|
