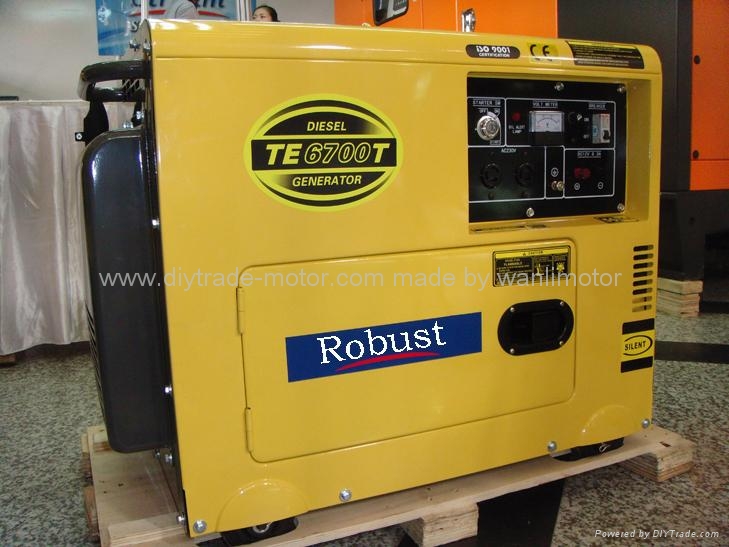

portable air cooled diesel generator

Silent Portable generator set consists of well-known diesel engine and generator, it is well designed by introducing international advanced technology. They possess the advantages of advanced design, compact costruction, low noise, easy maintenance, etc. They are applicable for using in many places such as telecom, bank, mantion, airport where noise pollution are prohibited,which has following features:
1.Top air-cooled,4-stroke,direct injection diesel engine are built to meet the demanding stress of every day operation.
2.The super silencer and high efficient inwrought material, nonlinear enclosure reduced the operation noise and vibration to minimum
3.Emergency low oil shutdown.
4.Convenient operation
-No fuse circuit breakers protection.
-Condenser voltage regulator ensures  stable voltage.
-Various model of voltage output for choice:
-Single voltage:230v
-Large fuel tank ensures more than 10 hours of continuous operation with fuel level monitoring.
New, reliable brushless alternator without brush maintenance.
Full rubber mounts reduce vibration and ensure greater protection.

Features:
1) Rated output: 4.2kW
2) Voltage: 110V / 220V / 230V / 240V / 380V / 400V
3) Single phase or three phase or two voltage according to customers' needs
4) Engine model: 186F
5) Brushless alternator
6) Engine type: single-cylinder, 4-stroke, air-cooled diesel engine
7) Displacement: 406ml
8) Engine output: 9HP
9) Fuel tank capacity: 16L
10) Continuous operating hours: 12hrs
11) Oil capacity: 1.65L
12) Operating noise level (7m): 70dB
13) Starting system: electric starting
14) Dimensions: 1,000 x 550 x 810mm

Packing:
In Carton firmly to the export  standard
