Reinforced Graphite Gasket

Model:SINSTON ZR-200T
Brand:SINSTON
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Sealing & Gaskets
Label:graphitegasket , graphitetape , graphitesheet
Price: US $2 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Cixi Sinston Sealing Material Co.,Ltd.

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:15 Dec, 2018

Product Description

Name: REINFORCED GRAPHITE GASKET
Model: SINSTON  ZR-200T
Description:It is made from graphite as homogeneous, reinforced by metal mesh, foil or tanged metal. It offers excellent sealing capabilities such as thermal stability, self-lubrication, corrosion resistance, without being brittle and aging etc., under extreme conditions with a longer life and less maintenance.

 Graphite Gasket

Gasket Style

ZR-200T

ZR-200TP

ZR-200TT

ZR-200TM

Without eyelet

ZR-200T

ZR-200TP

ZR-200TT

ZR-200TM

With inner eyelet

ZR-200T IR

ZR-200TP IR

ZR-200TT IR

ZR-200TM IR

With outer eyelet

ZR-200T CR

ZR-200TP CR

ZR-200TT CR

ZR-200TM CR

With I & O eyelets

ZR-200T IC

ZR-200TP IC

ZR-200TT IC

ZR-200TM IC

Insert material

None

SS304、316 etc

SS304、316、CS

CS、304/316

Foil

Tanged

Mesh

0.05mm

0.1mm,0.25mm-CS

0.1mm



APPLICATION & PROPERTIES:



Various shapes are available, used in petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges etc. Suitable for steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

Sheet Style

ZR-200T

ZR-200TP

ZR-200TT

ZR-200TM

Compressibility

30%

15~35%

15~35%

15~35%

Recovery

≥10%

≥20%

≥20%

≥20%

Pressure

40bar

200bar

300bar

200bar

Density g/cm3

0.7; 1.0

1.0

1.0

1.0

Temperature0C

-240~550

-240~550

-240~550

-240~550

PH

0~14

0~14

0~14

0~14



Graphite properties:

Item

Tolerance of density

C≥%

Tensile strength

Sulphur content

Chlorine content

Stress relaxation

Ignition

loss

Industrial

±0.06 g/cm3

98

4 Mpa

<1000ppm

<50ppm

10%

2.0≤%

Nuclear

±0.05 g/cm3

99.5

5 Mpa

<700ppm

<35ppm

10%

0.5≤%


If you are interested in our products , please feel free to contact us : E-mail: Sales@sinston.com

Payment Terms:TT

Product Image

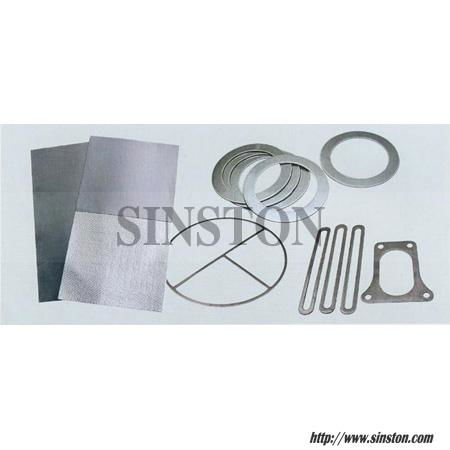

Reinforced Graphite Gasket 1
