T partition ribs kammprofile gasket with grahite tape coated

Model:ZR-KF710
Brand:SINSTON
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Sealing & Gaskets
Label:kammprofile gasket , serrated gasket , graphite gasket
Price: ¥18 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Cixi Sinston Sealing Material Factory

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:18 May, 2021

Product Description

Description:

Kammprofile Gasket (Serrated Metallic Gasket) consist of a metal core, generally stainless steel with concentric grooves on both sides. A sealing layer is usually applied on either side and depending on the service duty the material for this layer can be expanded graphite, PTFE, Asbestos free gasket sheeting materials or some soft metal. It can be used without sealing layers to provide an excellent sealing but there is a risk of flange surface damage especially at high seating pressure.

SINSTON ZR-KF710 Basic Type Kammprofile Gasket

SINSTON ZR-KF710 JR Kammprofile Gasket with integral Outer Ring

SINSTON ZR-KF710 SJ Kammprofile Gasket with Loose Outer Ring



Depending on centering ring with cheaper material (Normal: CS) and thinner thickness (Normal: 1.5mm) for Style ZR-KF710 SJ, maybe it is more economical than ZR-KF710JR.



APPLICATION:



Kammprofile gasket is the preferred gasket when improved performance at low seating stresses is required. It features excellent anti-blow-out properties linked with the reliably of a solid metal-to-metal seal combined with a soft sealing face to provide a tighter joint.  It is particularly suitable for applications where high temperature, pressures and fluctuating conditions are encountered. Non-metal cover layers ensure that flanges are not damaged, even at extreme loads. This gasket is an ideal replacement for problem applications associated with jacketed gaskets, for heat exchangers, vessels and reactors and various flange connections. Pressure: (6.4~25Mpa)
MATERIAL:


Metal material

Din

Material No.

Hardness

HB

Temp.

 ℃

Density

g/cm3

Thick.

mm

CS/Soft Iron 1.1003/1.0038 90~120 -60~500 7.85

2

3

4

SS304, SS304L 1.4301/1.4306 130~180 -250~550 7.9
SS316, SS316L 1.4401/1.4404 130~180 -250~550 7.9

Other special metal is also available on request.
Materials for the faces:
Flexible Graphite, PTFE, Non-asb, etc
Normal with thickness 0.5 mm


Product Image

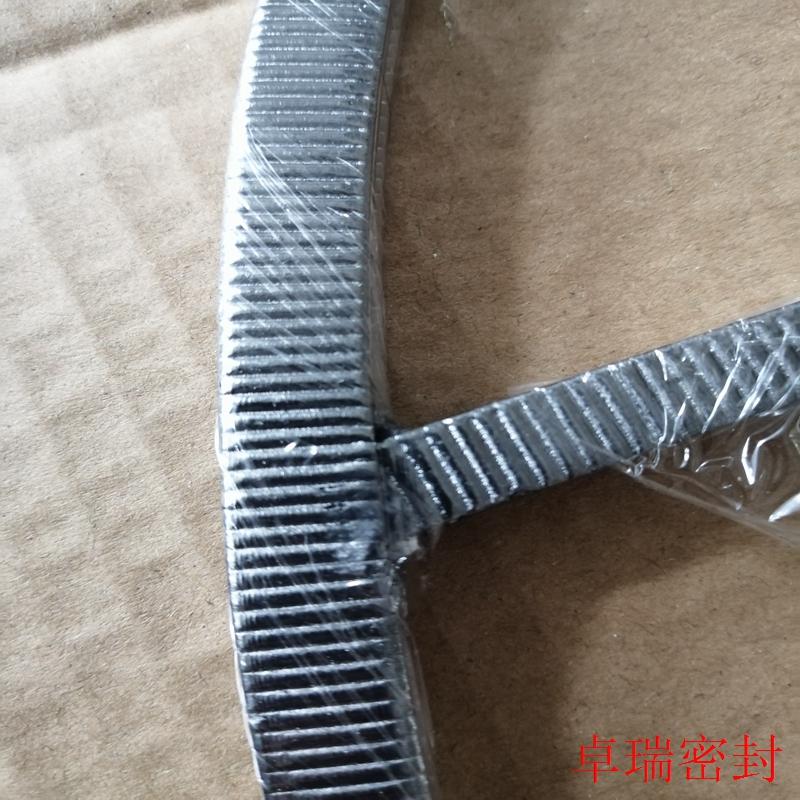

T partition ribs kammprofile gasket with grahite tape coated 1
Img 1
T partition ribs kammprofile gasket with grahite tape coated 2
Img 2
T partition ribs kammprofile gasket with grahite tape coated 3
Img 3
T partition ribs kammprofile gasket with grahite tape coated 4
Img 4
