PULSO Programming Card for Brushless motor speed controller
Product Description
PULSO Electronic speed controller for Brushless motor
Progcard---Programming functions:
(Note: some functions can only be programmed by using PULSO Programming card)
1. Battery Type:
ACCU Li-XX (Li-Polymer or Li-Ion.) (Factory Default setting)
ACCU Ni-XX (NICD or NIMH)
2. Cell number of Li-XX battery:
Auto (factory default setting) / 2 / 3 / 4
3. Brake Mode:
Off (factory default setting) / On
4. Cut-Off voltage:
Low—0.7V/cell for Ni-CD & Ni-MH; 2.7V/cell for Li-ion/Li-polymer. (factory default setting)
High—0.9V/cell for Ni-CD & Ni-MH; 3.0V/cell for Li-ion/Li-polymer.
5. Cut-Off Mode:
Slow down—the motor turns off gradually by power reduction when the voltage drops. (factory default setting)
Hard—the motor is fully off immediately as the voltage drops to the cut-off voltage.
6. Timing Mode:
High (hard timing 25℃)—for 6 and more pole outrunner motors, it gives highest Rpm and current. (factory default setting)
Low (soft timing 0℃)—for 2, 4, 6 pole motors, it gives maximum efficiency.
7. Throttle Curve:
Linear---soft throttle curve. When the throttle at the mid-position, RPM=60% of Max RPM. (Be suitable for F3A, 3D models, etc.) (factory default setting)
Logarithm---sensible throttle curve. When the throttle at the mid-position, RPM=80% of Max RPM. (Be suitable for Racer, Glider models, boat, Car, etc.)
8. Start Type:
Normal (factory default setting) / Soft
9. Motor Rotation Direction:
Left (factory default setting) / Right
Product Image

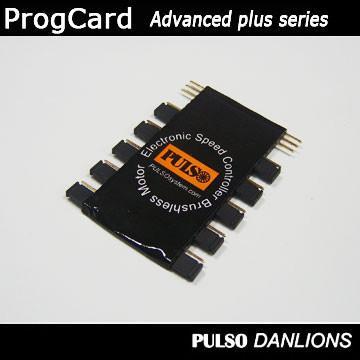

Img 1

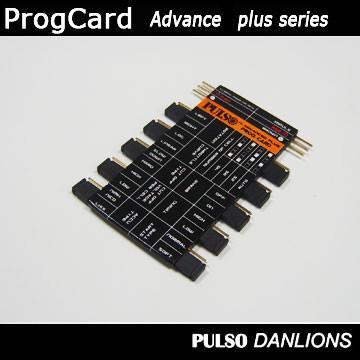

Img 2
