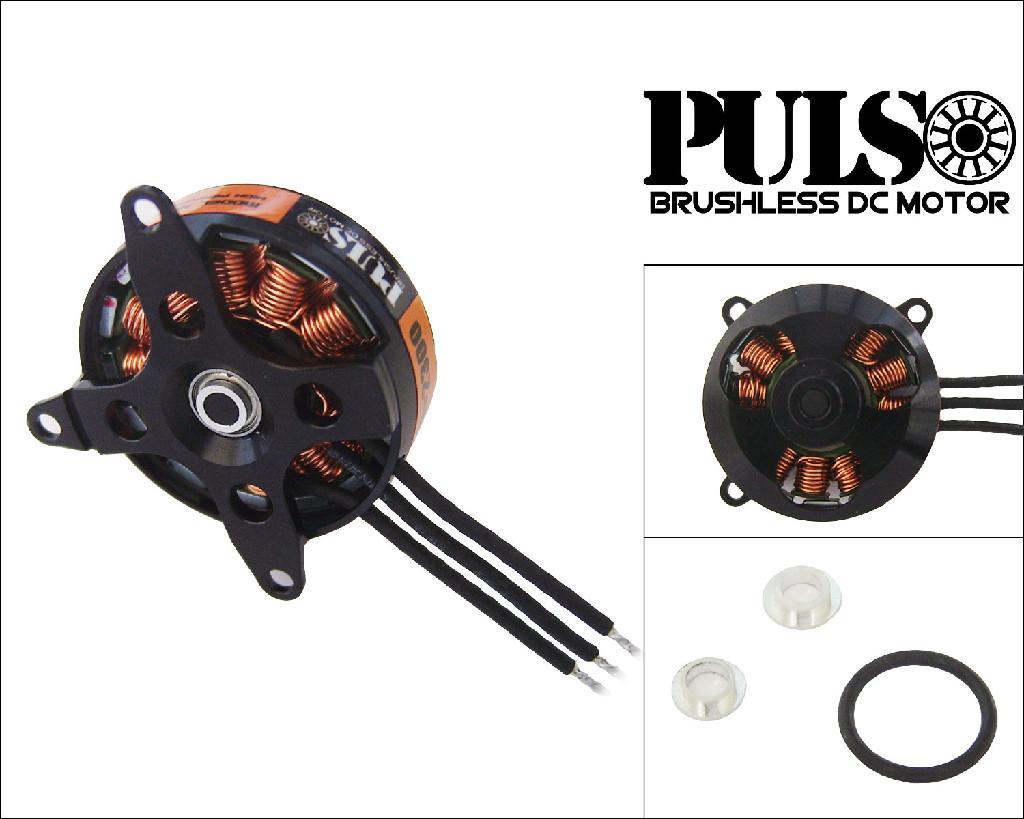

Outrunner brushless Motor 2203 series for indoor kits

Outrunner brushless Motor 2203 series for indoor kits 1

Model:	2203/34
Brand:	PULSO
Origin:	Made In China
Category:	Toys / Remote Control Toys
Label:	brushless motor , model motor , DC motor
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Danlions Electric Industrial Co., Ltd.

Free MemberShang Hai - China

Live Chat:

Last Online:08 Jul, 2014

Product Description

Parameters of 2203 Weight with wires:Only 18.4g

	WEIGHT(g) OF MODEL	LIPO	CURRENT MAX	PULSO ESC	PROPELLER
X2203/34
AEROBATIC	170	2S	9.2A/30S	DL11A	7x3.5
X2203/46
AEROBATIC	220	2S	8.5A/30S	DL11A	8x4.3
3D	160	2S	8.5A/30S	DL11A	8x4.3
X2203/52
TRAINER	260	2S	7A/30S	DL11A	8x3.8
AEROBATIC	190	2S	7A/30S	DL11A	8x4.3
3D	150	2S	7A/30S	DL11A	8x4.3

X2203/34 Max. efficiency:75% KV=2300
No. of lipo cells	2cells
Max. efficiency current	3-7.5A(>70%)
Current capacity	9.2A(30S)
No load current	0.6A
Internal resistance	156mΩ
X2203/46 Max. efficiency:75% KV=1720
No. of lipo cells	2cells
Max. efficiency current	2.5-7A(>70%)
Current capacity	8.5A(30S)
No load current	0.5A
Internal resistance	275mΩ
X2203/52 Max. efficiency:75% KV=1525
No. of lipo cells	2cells
Max. efficiency current	2-5.5A(>70%)
Current capacity	7A(30S)
No load current	0.4A
Internal resistance	360mΩ
