Servo registering Cylinder screen printing machine

Model:PS-100SL
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:screen printer , servo printer , silk printer
Price: US $8750 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:01 Mar, 2021

Product Description

PS-100SL Servo cylinder screen printing machine//Structure

Location

Fixture, Light sensor

Working table

Cylinder workbench/The elliptical cylinder workbench/Flat workbench

Actions

Up-down of screen plate

To be printed

  • Round diameter:100mm;
  • Cylindroid Height: 160mm;

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision liner guide rail

PS-100SL Servo screen printing machine//Usage and characters



Guide

  • Suitable for Round objects withour registering point
  • Overprint;

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

PS-100SL Servo screen printing Machine //Parameters



Technical parameters

  • The max printing thickness: 200 MM;
  • Air consumption: 85 Lit/Min;
  • The max printing area : 200×250MM;
  • Dimension of working table: 250mm×300mm;
  • Max printing speed: 1300Pc/H;
  • Max frame dimension: 410×350mm;
  • Stroke of Squeegee: 250mm;
  • Stroke of Table cylinder: 100mm;
  • Max Diameter of Products: 75mm’
  • Max length of Products: 300mm

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Package parameters

  • Package dimension:990mm×830mm×1630mm
  • Gross weight: 249kg
  • CBM: 1.26

H.S.CODE

8443198000

Certificate

CE

PS-100SL Servo cylinder  screen printing Machine//Advantage



Function

  • Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
  • Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
  • High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
  • High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
  • Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
  • Microcomputer control program operations, set up a variety of modes;
  • Four counts digital LED count, high degree of automation;
  • Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
  • Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick

Product Image

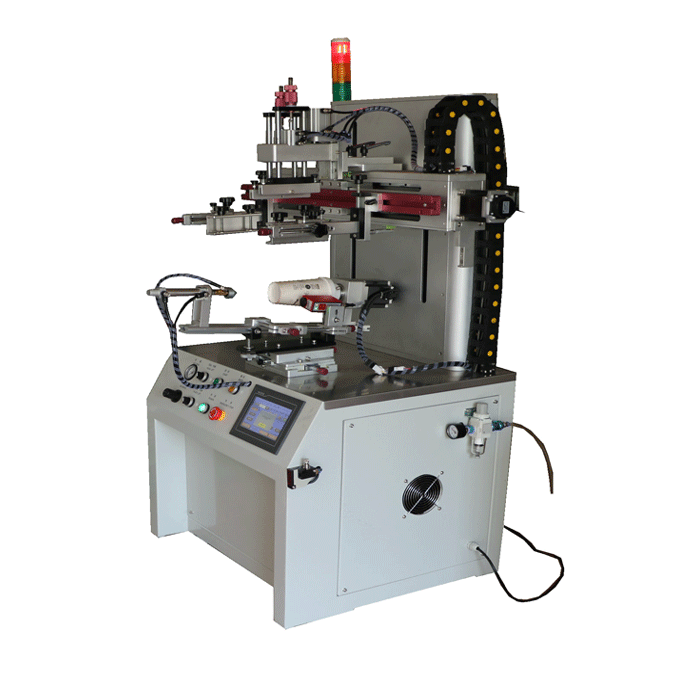

Servo registering Cylinder screen printing machine 1
Img 1

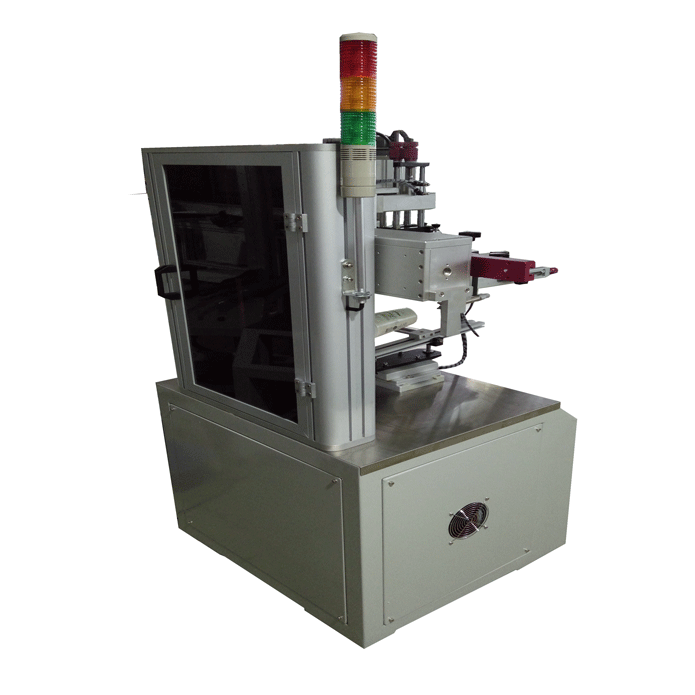

Servo registering Cylinder screen printing machine 2
Img 2

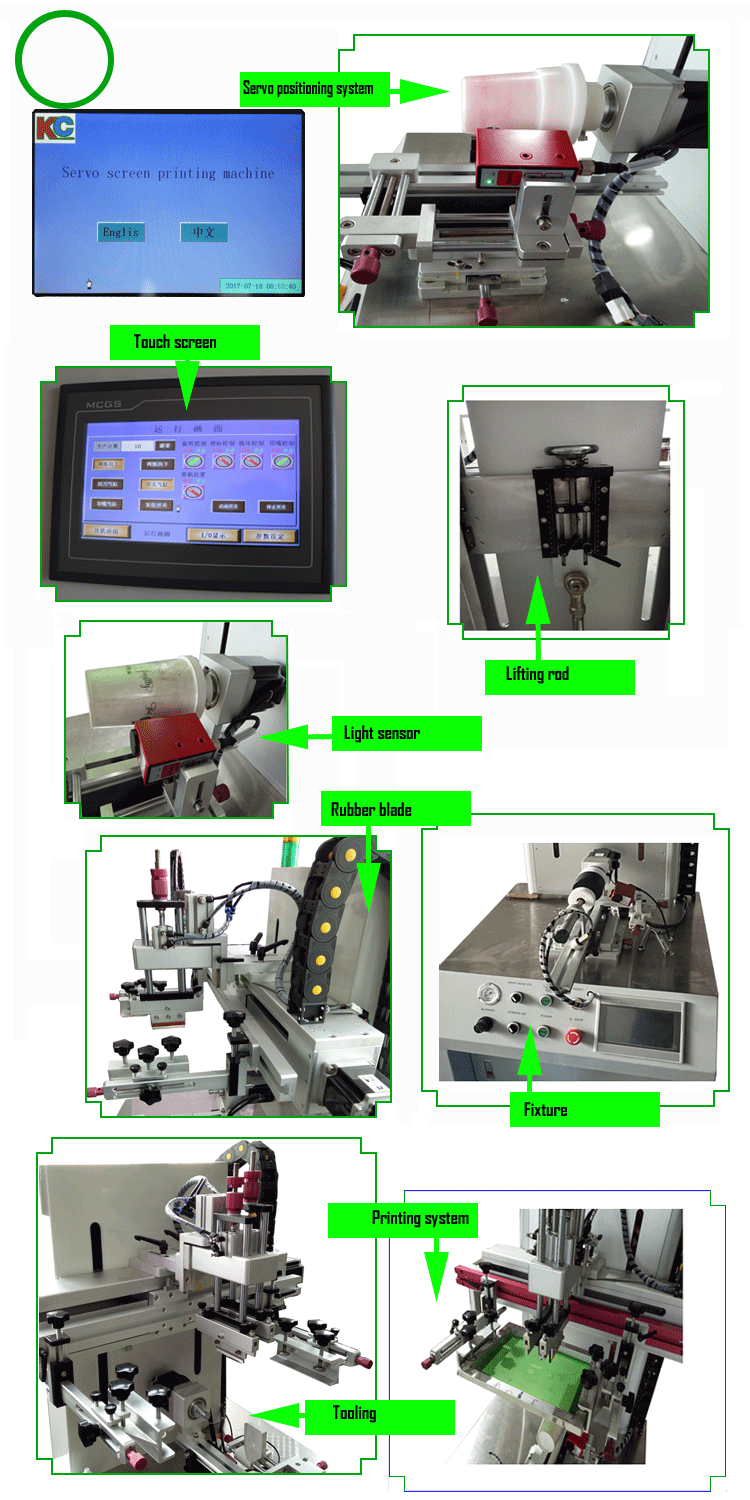

Servo registering Cylinder screen printing machine 3
Img 3

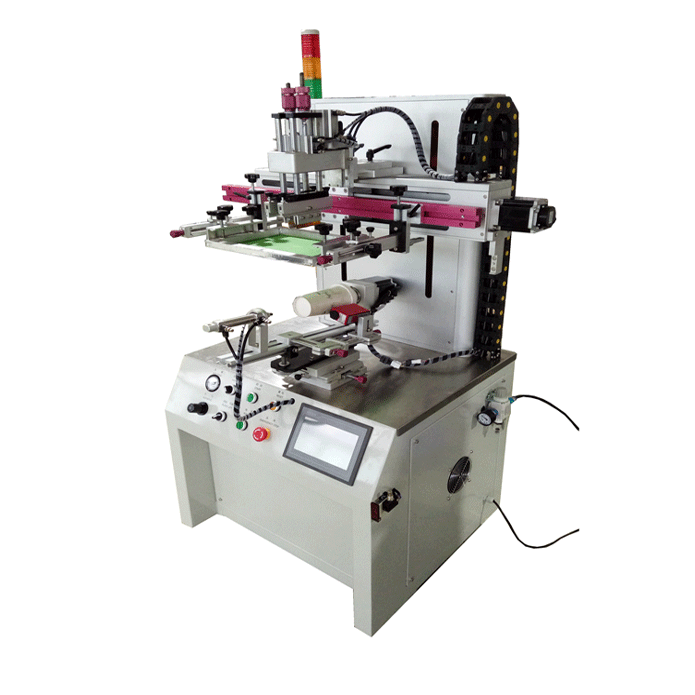

Servo registering Cylinder screen printing machine 4
Img 4

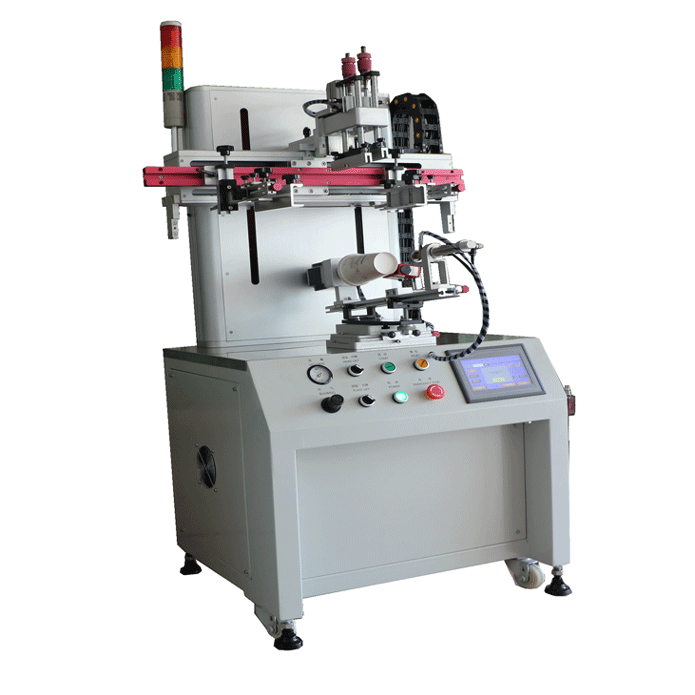

Servo registering Cylinder screen printing machine 5
Img 5
