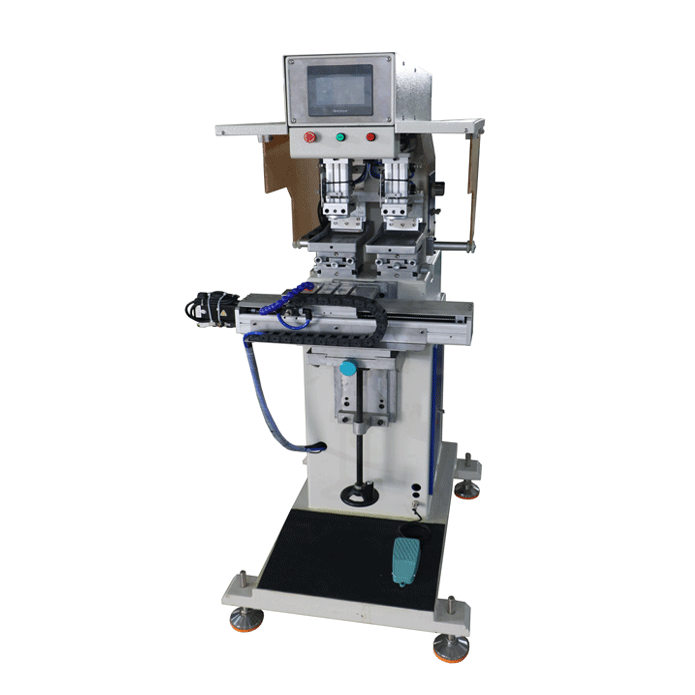

Two colors independent pressing  pad printer with servo shuttle//Structure

Working table

Two stations servo Shuttle-type working table

Shuttle stroke

125mm

Ink supply system

Open-type inkwell system

Plate type

10mm Thick steel plate.

Pad dropping control

Double-cylinder , independent pressing

Ink drying

Heat air

Two colors independent pressing open pad printer with servo workbench // Usage and Characters

Guide

• Servo Shuttle workbench, printing more precision, a fixture a product printing;
• Suitable for small  product double pad printing;
• Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
• Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
• Automatically balanced scraping ink technology, scraping ink clean and easy to change;
• Shuttle stroke for 125 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
• Electromagnetic valve and cylinder with the German and Taiwan products
• PLC and touch screen operation system.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors independent pressing pad printer with servo shuttle//Parameter

Technical parameters

P2-404DS

• Max. plate size: 100×100 mm；
• Max. worktable area: 125×200mm；
• Max. printing area: 85×85mm；
• Max. printing speed: 1000pcs/hr；
• Printable colour :2;
• Stroke of table shuttle: 125mm.

P2-406DS

P2-408DS

• Max. plate size: 100×150mm；
• Max. worktable area: 125×200mm；
• Max. printing area: 85×130mm；
• Max. printing speed: 900pcs/hr；
• Printable colors:2;
• Stroke of table shuttle: 125mm.

• Max. plate size: 100×200 mm；
• Max. worktable area: 125x200mm；
• Max. printing area:85×170mm；
• Max. printing speed: 800pcs/h；
• Printable colour :2；
• Stroke of table shuttle: 125mm.

Works supply

• 110V-220VPower supply；
• 5-7Bar Compress air；

Package list

• Outer dimension:0.74×0.47×1.35m
• Gross weight:125KG

• Package dimension:0.85×0.58×1.46m
• Gross weight:157KG
• CBM: 0.71978

H.S.Code

8443198000

Certicate

CE

Two colors independent pressing pad printer with servo shuttle//Advantage

Function

• PLC and touch screen program controlling operating technique ;
• Streamline design ensure dexterous Appearance impressions;
• Coin aluminum structure frame coated Gross-Green color paint;
• Servo Shuttle working table installed to get more precision overprint;
• Independency pressure adjustment of pad press-printing and picking up ink;
• Either testing or running mode to operate ;
• Opened inkwell to store and coating ink , easily adjust the character of pad ink.
• Automatism digital count function;
• Double colors pad printing with drying through blowing hot air:
• Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
• The function of blade only move front to back for mixing ink ;
• Automatics balance blade to remove the ink completely.
• Independent rubber pad controlling system.
