Cap hot stamping machine(H-TC50K)

Model:H-TC50K
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:hot stamping machine , bronzing machine , gild press
Price: US $1735 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:01 Mar, 2021

Product Description

H-TC50K Pneumatic Flat-cylinder  hot stamping Machine//Structure

Working table

Shuttle working table, Max stamping diameter: 50mm

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of Stamping head

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Stamping plate size

100*150mm.

H-TC50K Pneumatic cylinder hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic,
  • Flat-object stamping machine , Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package,  Electron products;
  • Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Pneumatic drive,;
  • Suitable for bottle, cosmetic case cap.

Application fields

  • Paper Gilding, Leather Impression,
  • Plastics Bronzing
  • Leather bronzing and Molding;
  • Small diameter cylinder

H-TC50K Pneumatic cylinder hot stamping Machine //Parameter

Technical parameters

  • Size of stamping plate: 80 x 150 mm;
  • Wattage: 370W;
  • Stamping height adjustable range =100 mm;
  • Max. stamping diameter: For whole circle: 50mm For partial circle: 150mm;
  • Stamping temperature adjustable range: 0 - 400oC;
  • Stroke of stamping plate: 60 mm;
  • Max. stamping pressure: 140 kgf (7bar);
  • Max. stamping speed: 900 pcs/h;
  • Air consumption: 50 litre/min;
  • Dimensions: 550 x 470 x 620 mm;
  • Net Weight: 66 Kg;
  • Size of working table: 120*157mm.

Works supply

  • 110V-220VPower supply;
  • 5-7Bar compress air

Package list

  •  Package size:0.75×0.6×0.85M;
  • Gross weight: 115KG;
  • CBM: 0.3825



H.S.Code

8443198000

Certificate

CE

H-TC50K Pneumatic cylinder hot stamping machine //Advantage

Function

  • Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
  • Relays for process control, stable operation, easy maintenance;
  • The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
  • leveraged cylinder pressure, the pressure is uniform and strong;
  • The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
  • Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
  • Using high strength steel, gilt plate and table, has a very high flatness;
  • Heating tube for heating, heat supply is stable, easy to replace;
  • Safe protection device installed;
  • The stamping head height adjustable;
  • Shuttle stable shift ensure stamping cylindrical workpiece;
  • Stamping flat workpiece while uninstall the shuttle;

Application:It is slower to use a semi-automatic curved surface hot stamping machine for round products, but it is also a good way for small batch products. The hot stamping process of the curved hot stamping machine is as follows: the hot plate is pressed down to keep it in contact with the product, and the product rotates under the push of the shuttle cylinder, and the graphic area on the hot plate will form a hot stamping pattern on the product.

Product Image

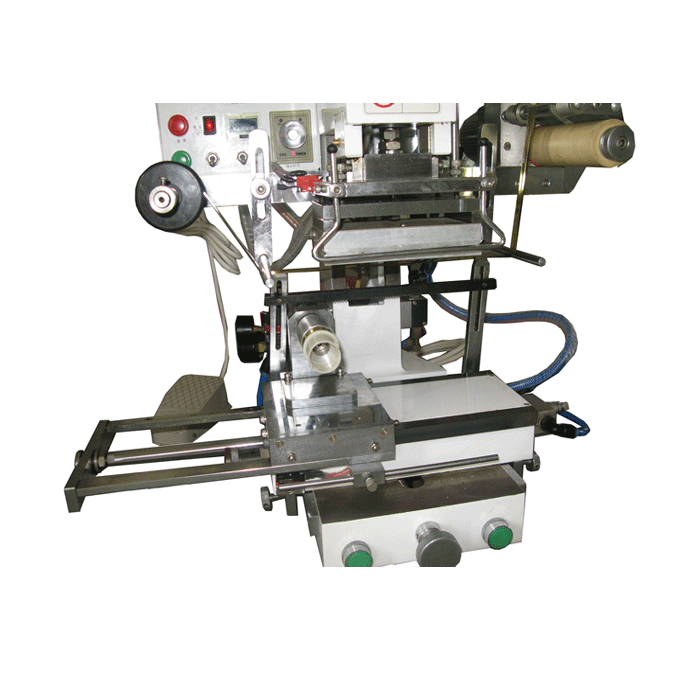

Cap hot stamping machine(H-TC50K) 1
Img 1
Cap hot stamping machine(H-TC50K) 2
Img 2
Cap hot stamping machine(H-TC50K) 3
Img 3
Cap hot stamping machine(H-TC50K) 4
Img 4
Cap hot stamping machine(H-TC50K) 5
Img 5
