Hydraulic hot stamping machine(HH-TC3040LP)

Model:HH-TC3040LP
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:gidling machine , hot stamping machine , Bronzing machine
Price: US $4853 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Company Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:20 Jul, 2018

Product Description

Hydraulic embossing stamping Machine //Structure

Working table

High strength Steel plate , size: 480*600mm.

Stamping Head drive

Hydraulic drive

Foil collecting method

 Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Max Pressure

20T

Hydraulic embossing stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Hydraulic drive, pressure more large.

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  • Graduated disc of clock bronzing.
  • Die-cutting.

Hydraulic embossing stamping Machine //Parameter

Technical parameters

HH-TC3040LP

HH-TC4040LP

  • Hot plate area:300 ×400 mm
  • Working table area:480 ×600mm
  • Max printing pressure:20,000 Kg
  • Up and down distance:100mm
  • Heat wattage: 6×500W
  •  Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC 。
  • Hot plate area:400 × 400 mm
  • Working table area:480 ×600mm
  • Max printing pressure:20,000 Kg
  • Up and down distance:100mm
  • Heat wattage: 6×500W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC 。

Works supply

  • 110V-220VPower supply;
  • 46# Hydraulic oil

Package list

  • Size: 1.06*1.03*1.80m
  • Gross weight: 650kg;
  • CBM: 1.96524
  • Size:0.75*0.55*0.83m
  • Gross weight: 85kg;
  • CBM: 0.342375

H.S.Code

8443198000

Certificate

CE

Hydraulic embossing stamping machine //Advantage

Function

  • Bench made ​​ofhigh strength cast steel forging, has a very high flatness and stability;

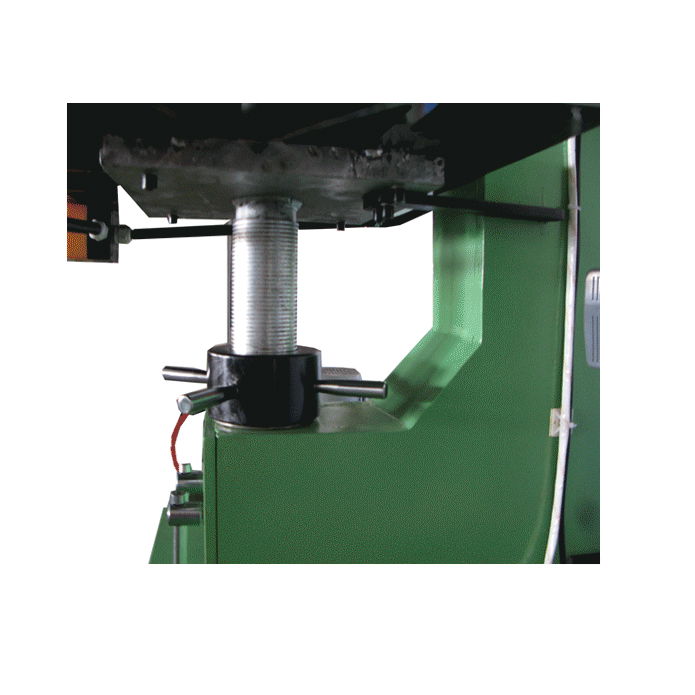

  • Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
  • Relay control program is running, easy operation, easy maintenance;
  • Pairs of buttons control the stamping head up and down, security is greatly enhanced;
  • Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
  • Heating pipe heating, rapid heating, replacement is simple and convenient;
  • Heating plate can be removed to facilitate installation and replacement gilt template;
  • Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
  • Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
  • Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
  • Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of ​​freedom.

Product Image

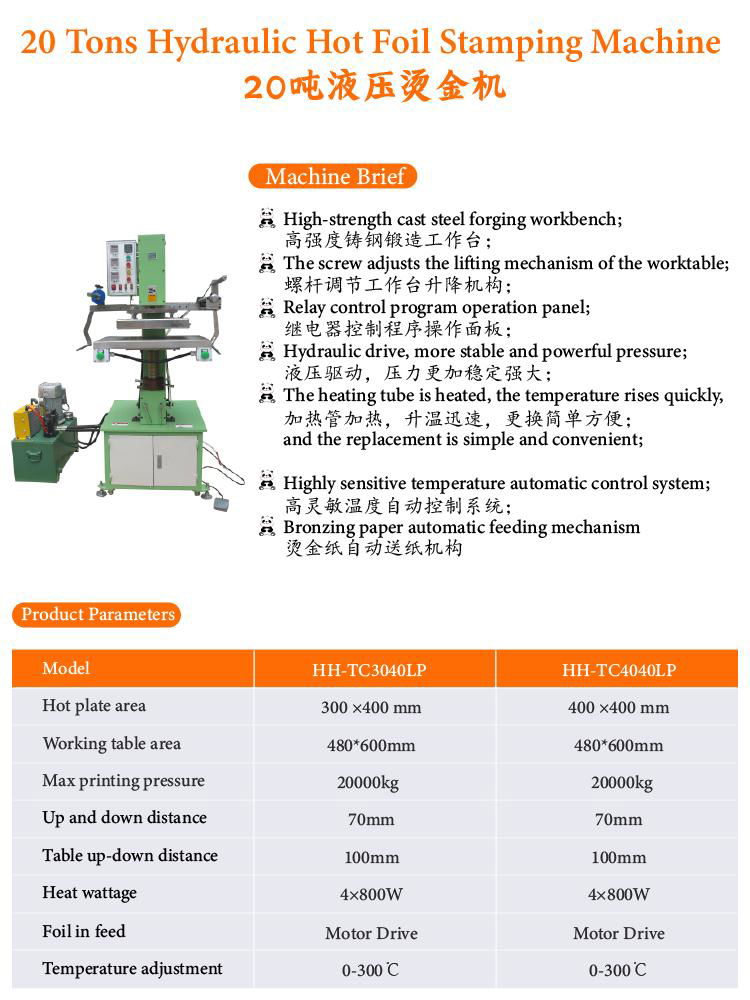

Hydraulic hot stamping machine(HH-TC3040LP) 1
Img 1
Hydraulic hot stamping machine(HH-TC3040LP) 2
Img 2
Hydraulic hot stamping machine(HH-TC3040LP) 3
Img 3
Hydraulic hot stamping machine(HH-TC3040LP) 4
Img 4
Hydraulic hot stamping machine(HH-TC3040LP) 5
Img 5
Hydraulic hot stamping machine(HH-TC3040LP) 6
Img 6
