Description: BY-GLTV3 reed switch type water fuel level sensor, it is done by sealed reed switches positioned inside the main shaft of the sensor. A float with built-in magnets then triggers the reed switch relays, generating a potential-signal with resistance, current, or voltage value that increases or decreases according to the fluid level, then give the signal to the gauge via wires, which shows the right level reading by pointer. In the whole reed switch level sensors, the float is the only moving part of the sensor, thereby minimizing potential mechanical failures to get the precision measurement.

Applications: Suitable for truck, generators, bus and marine field; Widely used in fuel, water, kerosene and chemical tanks OEM quality, widely used on automotive and marine OEM;

Features: Reed switch, Continuous and steady output signal ;Simple and strong structure, Advanced corrosion resistance; long service life, anti-vibration, anti-explosion; High quality fuel level sender Economical level sensing solution; Without limitation of environment, length can be customized; Assembled with O-ring, easy for installation

Material: SUS316 or SUS304 stainless steel;Length range: 100 to 2,000mm for standard (can be customized);

Various types of flanges are available for fitting fuel tank if necessary;Connector: Brand Delphi,Tyco or others is available according to customer’s Requirement;Supply voltages: 10 to 32V,Rated current for alarm switch: 500mA

Output signal:

 ♦Resistance range: 0 to 190Ω

 ♦Current range: 0 to 20mA or 4 to 20mA

 ♦Voltage range: 0.5 to 4.5V or 0 to 5V (can be customized)

Resolution range: 10 to 40mm; Operating temperatures: - 40 to 85°C; Protection rank: Ip67; Option: high/low alarm

Characteristics:

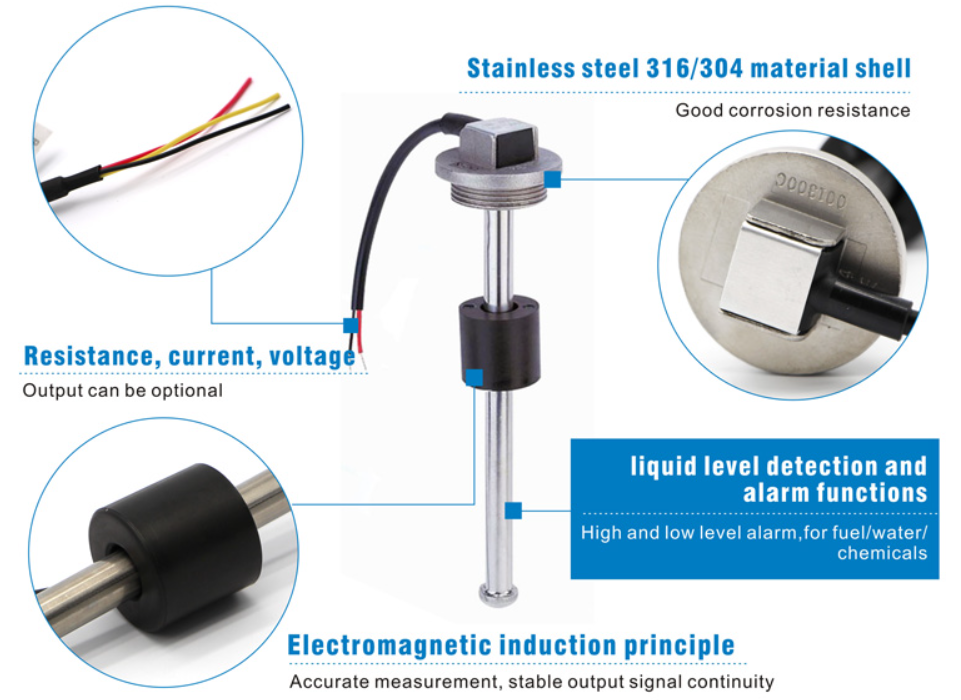

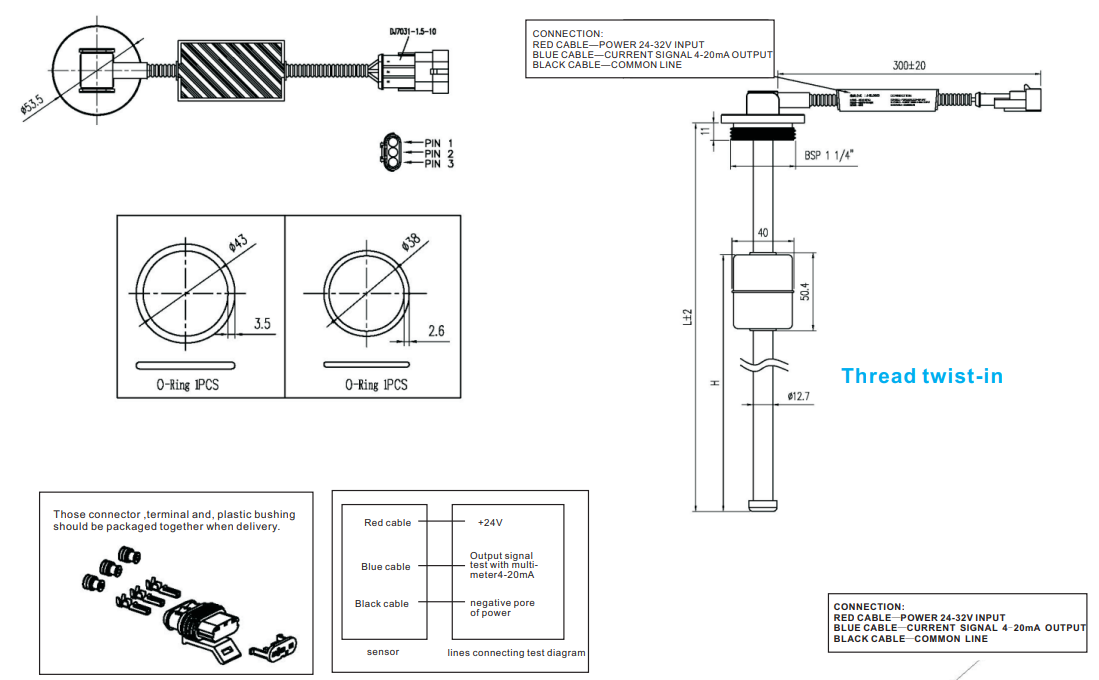

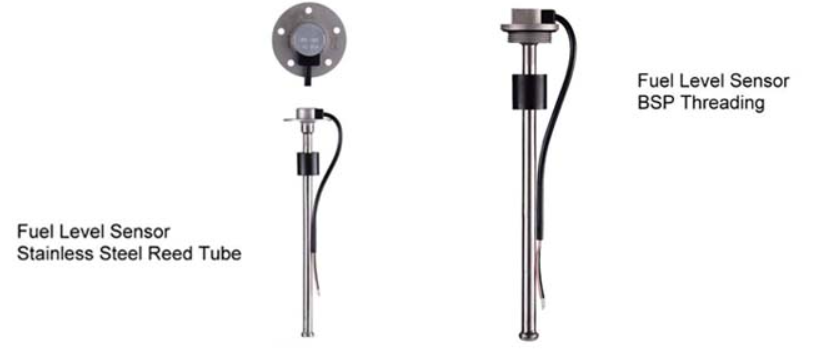

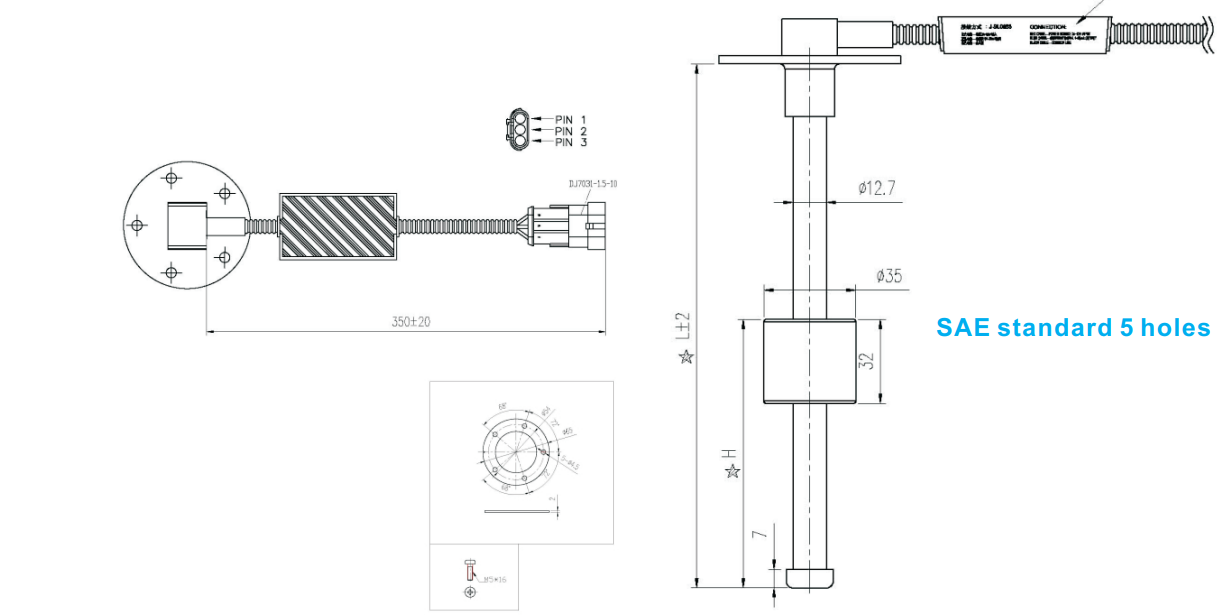

Product Drawing:

Wiring Schematic Diagram:

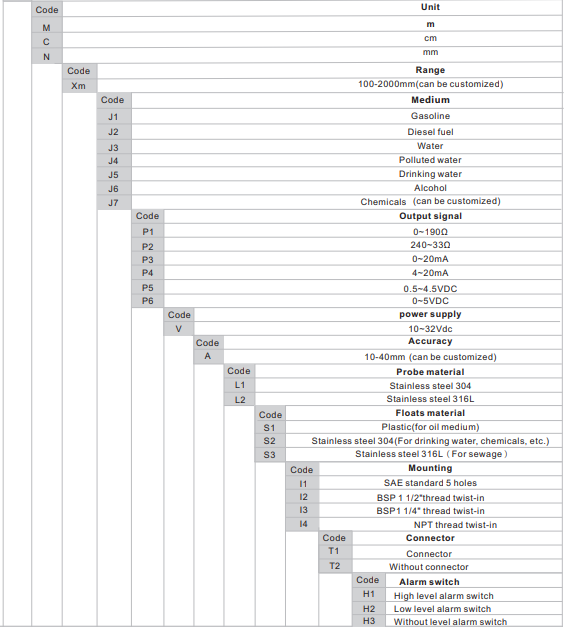

Type Select:

For example: complete P/N: BY-GLTV3/N/Xm/J3/P1/V/A/L2/S1/I2/T1/H1
