| Model: | BY-GLT560 |
|---|---|
| Brand: | Beyondoor |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Automation & Control System |
| Label: | Submersible water le , sensors , sensor |
| Price: |
-
|
| Min. Order: | - |
| Last Online:03 Jul, 2025 |
Description: BY-GLT560 Submersible water level sensor adopts the diffused silicon piezoresistive pressure sensor as a measuring element, can directly measure the depth of the liquid level by into the water, and then puts the signal conditioning circuit converted into standard (current or voltage) signal output; It has high accuracy, small volume, plus resistance to abrasion, oil, acid&alkai and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements. Such as, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.
Applications: It is widely used in sewage, river and lakes treatment as well as water\oil tanks ,channel, large rivers, l reservoirs and coastline monitoring.
Features: Diffused silicon piezoresistive sensor; Probe into the liquid level measurement, installation is simple and convenient; Multi protection structure design, high protection ability; LCD optional; Acceptable OEM custom

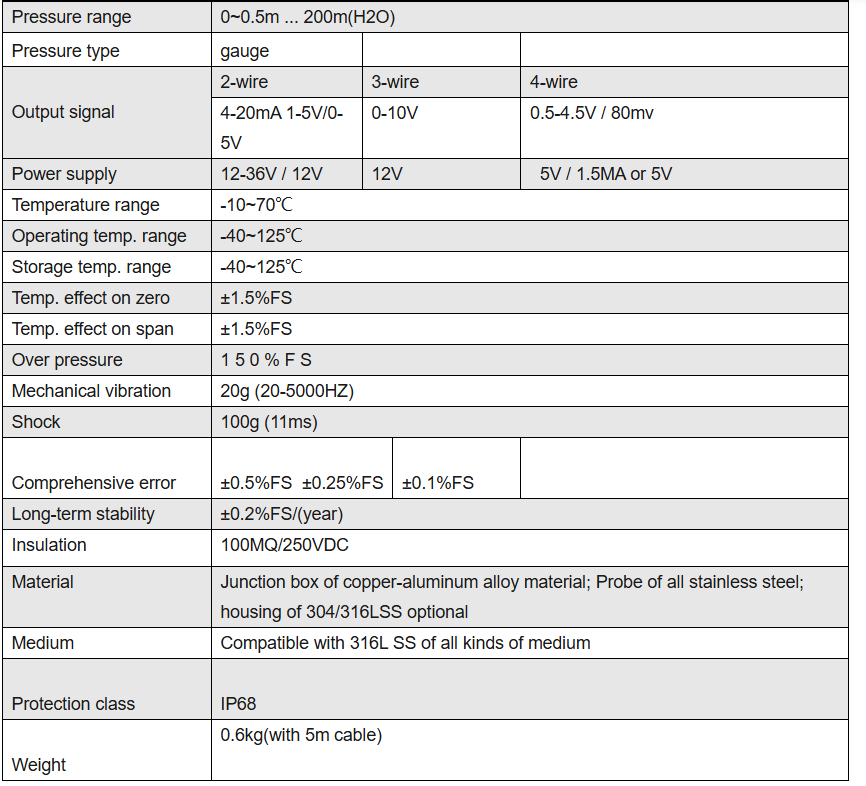

Characteristics:

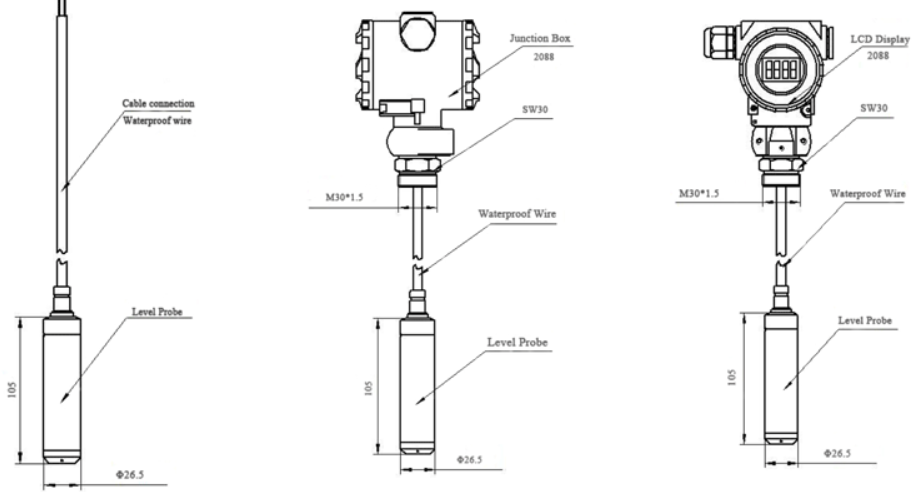

Product Drawing:

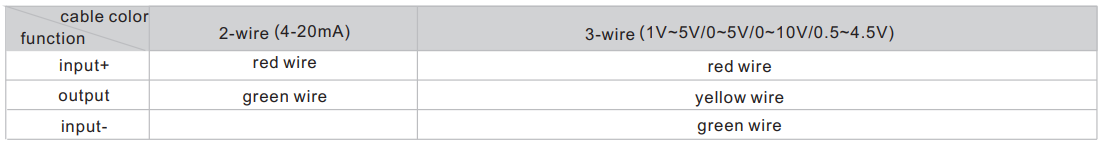

Wiring Schematic Diagram:

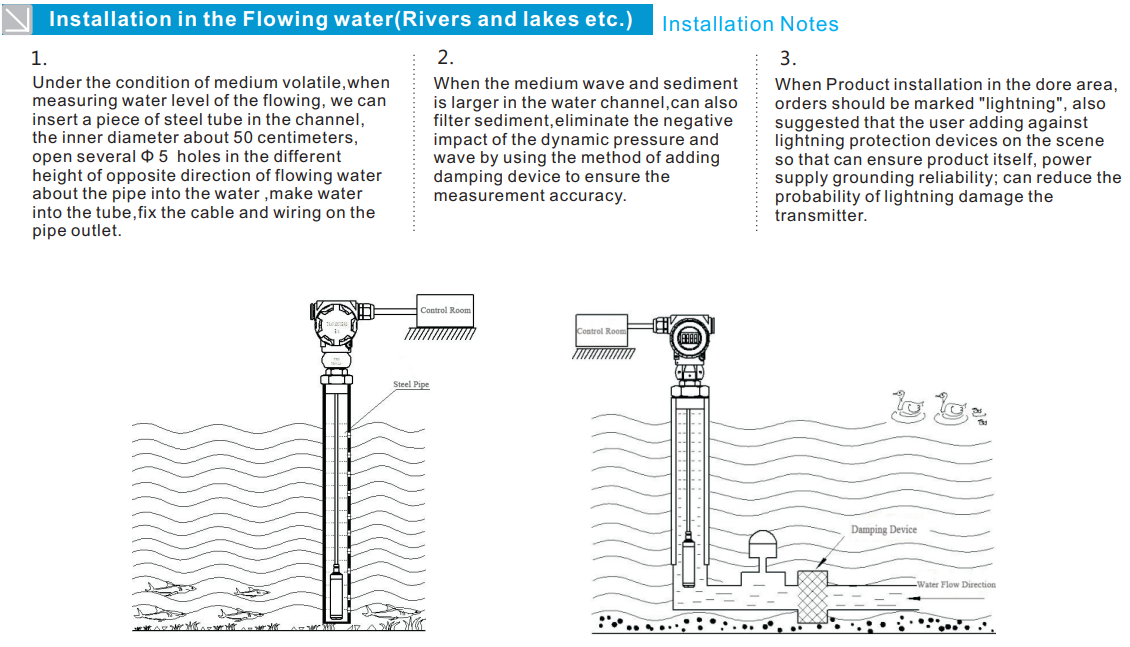

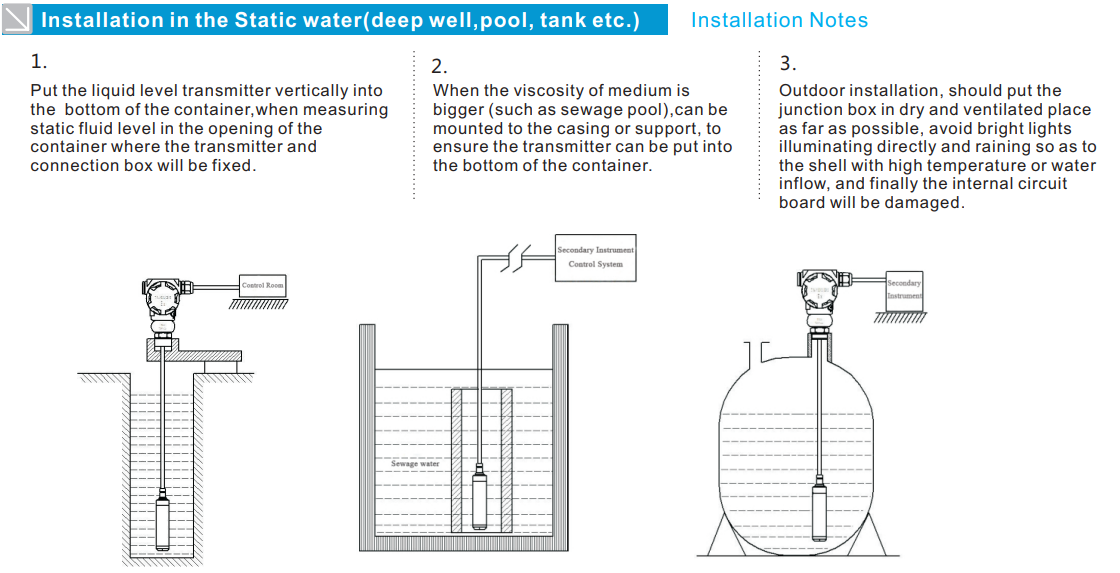

Installation Methods:

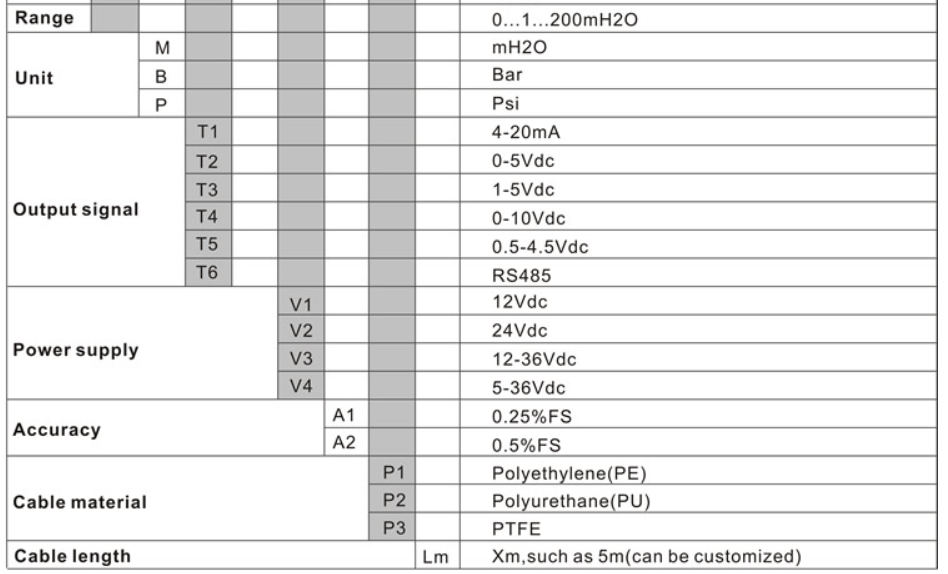

Type Select:
For example: complete P/N: BY-GLT500/1mH2O/M/ T2/V3/A2/P1/3m
