Muti-function QM-230

Model:QM-230
Brand:QM medical
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label: -
Price: US $3500 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Zhengzhou QM Medical Co., Ltd.

Free MemberHe Nan - China
Last Online:27 Jun, 2025

Product Description

Multifunction carbon 4 in 1 q switched nd yag laser machines rf face skin opt ipl hair removal diode laser hair removal machine
Model: QM-230

Applications


- Laser hair removal
- Acne treatment
- Photo rejuvenation
- Skin whitening
- Spider vein treatment
- Pigmentation treatment
- Tattoo removal
- Carbon peeling
- Wrinkle removal
- Body lifting

Specialty of QM-230

Independent power supply for each system. This well ensures each system has strong and stable energy.Inside structure is very reasonable and every line is clear. All the spare parts are fixed to metal shelf.
* 3000W power supply for diode laser system
* 2000W power supply for E-light (IPL E-light) system
* 500W power supply for ND yag laser system
* 100W power supply for RF system

Spare parts we use


* UK lamp, US laser bars
* 8L big water tank with water level monitor
* 2 Korea imported water filters
* 4 Japan imported big fans + 2 big radiator
* Latest brushless DC water pump with lift 15m
* Pulse water switch to monitor water flow
* Stainless steel board between connector and internal

Intelligent Diode Laser : 20 Million shots, US Coherent Laser Source

Both 808nm and Triple Wave available

* Classical spot size 15*15mm
* Extra cooling head 25*25mm
* Cooling system: air + water + TEC + Sapphire
* Super good cooling effect, truly painless

CIA™ Technology- Cooling In Advance
It uses 25mm * 25mm TEC cooling tips to cool the skin before, during and after treatments. It can protect the epidemis from hurt, reduce the pain during hair removal, and increase the comfort for patients.

ICE™ Technology - Simultaneous contact cooling
It is an advanced technology that cools the skin continuously during treatments. It minimizes the risk of burns on the epidermis while maintaining heat to penetrate dermis where hair follicles are

 ND Yag Laser Handle : 3 Million Shots, UK Lamp


* Super long life of 3 million shots, at least 5-10 times longer than others!
* UK xenon lamp + Φ6 rod
* Big and round spot size, very uniform energy output

We offer 3 tips to cover all customer needs.
532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color
1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.
1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal.

E-light Handle : Super 1 Million Shots, UK Lamp


* UK imported xenon lamp
* TWO EXTRA Korea imported water filters
* Unbelievable lifespan of 1,000,000 shots, at least 5 times longer than others!

We offer 5 filters for this Elight handle. So that this handle can cover all below functions:
480nm~1200nm: acne treatment
530nm~1200nm: skin rejuvenation
590nm~1200nm: skin whitening, pigment treatment, spider vein treatment
640nm~1200nm: hair removal for fair to yellow skin
690nm~1200nm: hair removal for dark skin

RF Handle : Unlimitted Shots


3 Treatment tips for different area:
Small (21mm): for eye round treatment
Middle (27mm): for face treatment
Big (36mm): for body treatment

RF-lifting skin tightening is a modern treatment based on radio waves. It's a safe and effective and
does not require downtime. Patients can see skin tightening immediately after treatment. With proper skin care, results can last
for two to three years.

Technical Specification

Specification

Diode Laser

E-light IPL OPT

Nd: Yag Laser

RF

Power supply

2000W

2000W

500W

/

Laser power

500w-800w

/

15W

/

Energy/max

1-166J/cm2

1-50J/cm2

1000mJ

1-100W

Wavelength

808nm or Mixed Wavelengths

480/530/590/640/690nm

532/1064/1320nm

/

Spot size

15*15mm

15*50mm(12*30mm optional)

6mm

20/28/35mm

Pulse duration

10-400ms

1-12ms

10ns-20ns

/

Pulse interval

/

/

/

0-3000ms

Frequency

1-10Hz

Cooling Level

1-5 level

Cooling System

Air + Water + Wind + TEC + Sapphire sking contact cooling

Operation

10"TFT True Color Touch Screen

Electrical input

90-130V, 50/60HZ or 200-260V, 50HZ

Before & After

Features

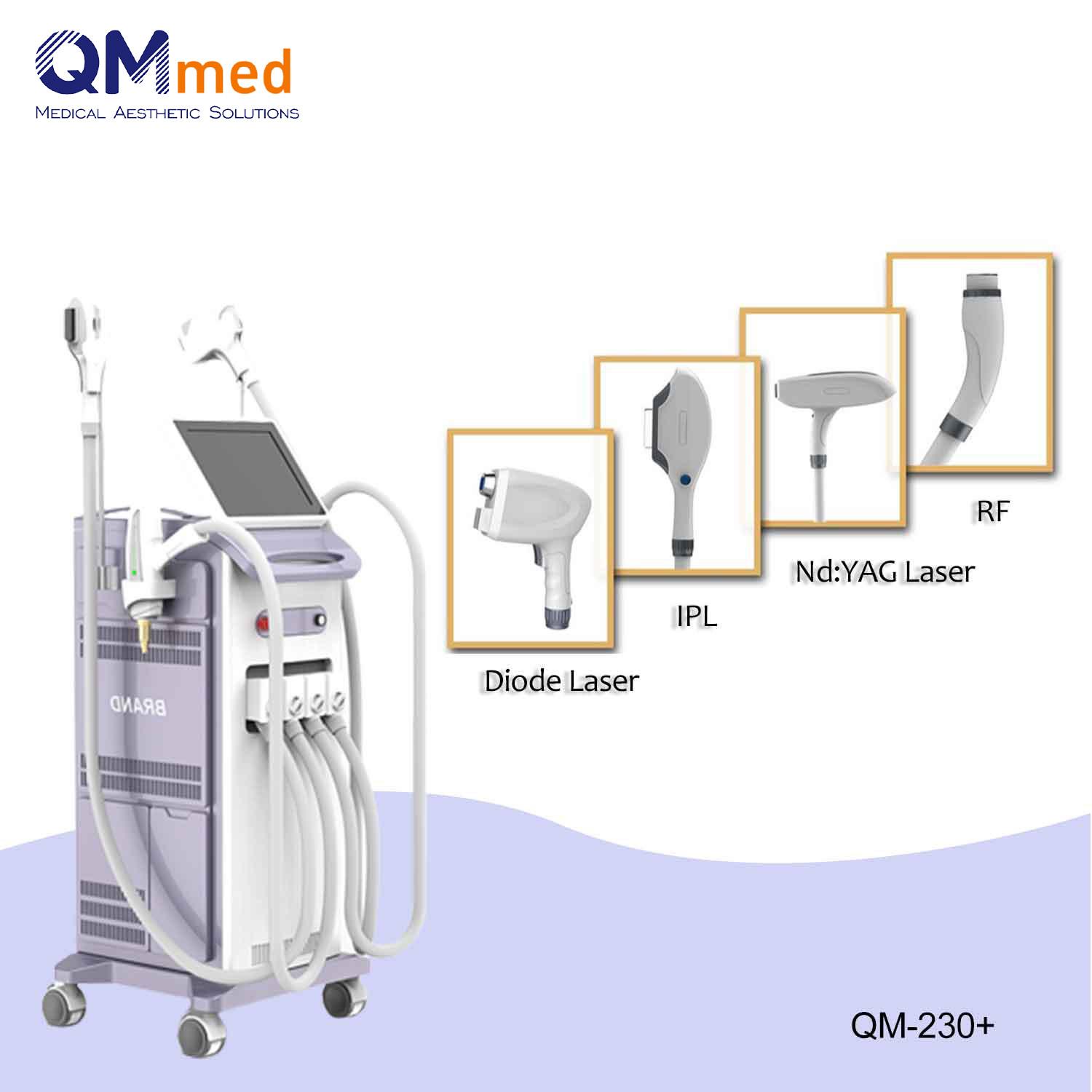

  • Multifunctional Laser Platform, 2 in 1, 3 in 1 or 4 in 1 system for your option

Functions you can choose from:Diode Laser, IPL, SHR, E-light, Nd:YAG Laser,RF.

  • Independent power supply for each system. This well ensures each system has strong and stable energy. Inside structure is very
    reasonable and every line is clear.
  • Smart and Intelligent Operation software
  • Top quality Spare parts we adopt.

Product Image

Muti-function QM-230 1
Img 1
Muti-function QM-230 2
Img 2
Muti-function QM-230 3
Img 3
Muti-function QM-230 4
Img 4
Muti-function QM-230 5
Img 5
