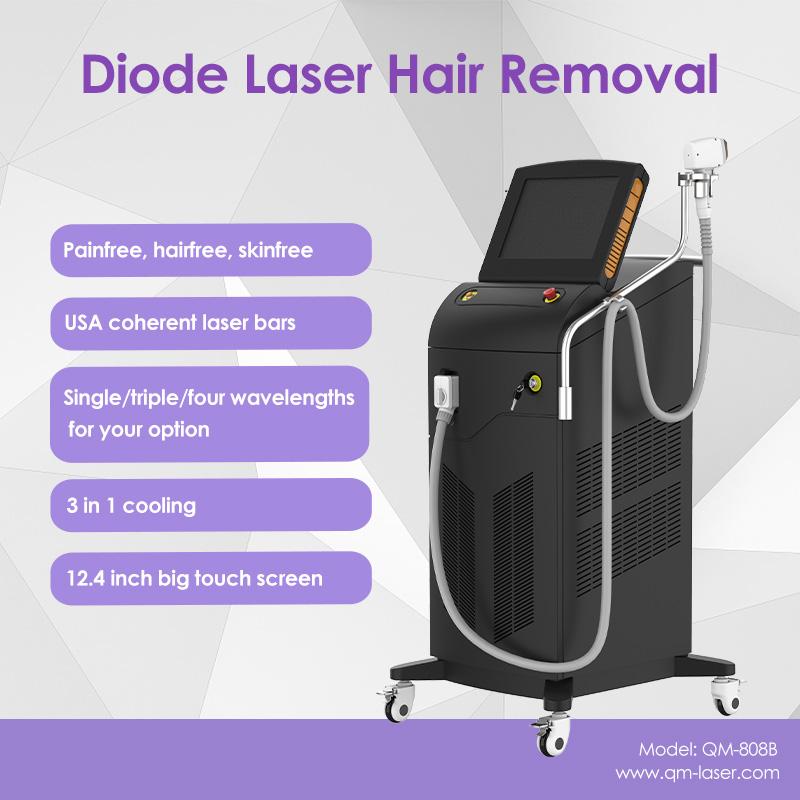

Model: QM-808B
professional Diode Laser Diode Hair Removal 808nm Diode Laser Hair Removal Machine electrolysis hair removal machine
Features:
Genuine USA imported laser bar
-5ºC Sapphire cooling
40 million shots lifetime
Superior Semi-conductor cooling, 24 hours continuous working.
High cost performance equipment, available for 10 years use
808nm and Triple wavelengths(755nm+808nm+1064nm) for your option!
-------------------------------------------
808nm or 755nm+808nm+1064nm for your option.
Professional choice for dermatologist
Applications:
For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini, legs and etc.
(including light, blond and thin hairs)
Working Principle:
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue. Slight pain, easy operation, the most safe, technology for permanent hair removal now.
It is performed using gold standard 808nm or Triple-wavelength(755nm+808nm+1064nm) diode laser technology, with energy penetrates deep into the dermis with high average power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair follicle, rather than destroy the oxygen organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire tip can eliminate the heat effect attributed to optical energy, greatly improving both the treatment performance and safety.
Specialty of QM-808B:
** It adopts High Quality spare parts, also standard with TEC semi-conductor cooling,
** German DILAS Laser Emitter achieve fantastic result and last long lifetime!
* Different spot size handles for your option:
** Handpiece Specification:
Technical Specifications:
|
Laser Type |
Diode Laser |
|
Laser Stacks Power |
1000-1600W for option |
|
Wavelength (Spectrum) |
808nm/Triple-wavelength-755nm+808nm+1064nm |
|
Energy Density (Fluence) |
1-100J/cm² (Continuously adjustable) |
|
Spot Size |
12*20 mm² (standard),12*35 mm² (for option) |
|
Pulse Repetition Rate |
1-10Hz |
|
Pulse Duration |
10-300ms |
|
Pulses |
Single |
|
Cooling |
Continuous Sapphire contact cooling(-5ºC~1ºC)
|
|
Stand-by Working |
Continuously for 20 hours |
|
Display |
10.4" True Color LCD Touch Screen |
|
Electrical Requirements |
110/230VAC, 15/20A max., 50/60Hz |
|
Net Weight |
65kgs |
|
Dimensions (WxDxH) |
400*620*1100 mn |
Before & After:
Advantages：
1. Jonte second-generation filter
not only filters impurities larger than 50μm, but also filters metal ions efficiently to avoid bar corrosion.
2. TEC refrigeration system
adjust the system temperature to ensure continuous and stable work, reduce the daily damage of laser bar.
3. Constant current source system
balance current peak, avoid current instability and damage to bar.
