Direct Square Tube Mill Machine

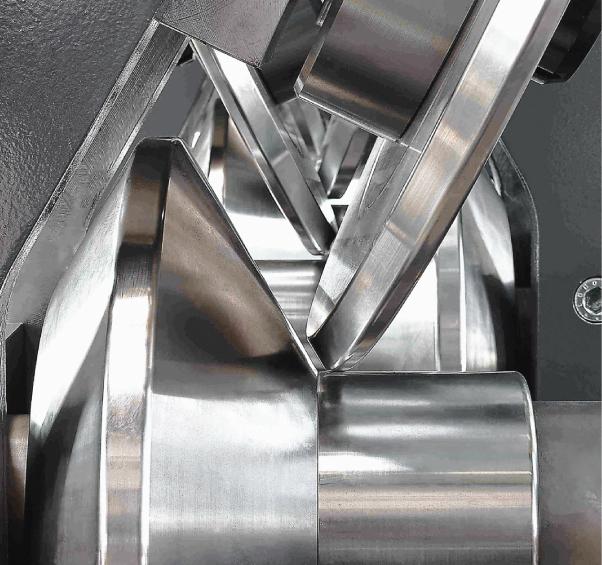

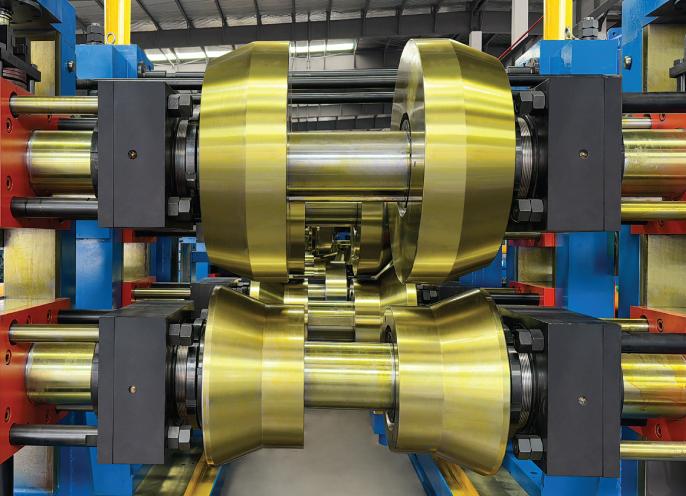

Direct Forming Technology for Square and Rectangular Tube Mill is an advanced production process for producing square and rectangular tubes. It uses a set of combined rollers to produce all available sizes without changing any roller on one mill. It shapes the strip sheet into the tubes by directly rolling the four corners. Through the process of 1st forming of small side, 2nd forming of large side and Fin Pass, it successively achieves the tube formation which will be forwarded for high frequency welding, sizing and straightening.

The advanced features of the direct forming technology

• Only 1 set of combined rollers to carry out all the different and available sizes on one mill without changing any single roller, which saves roller cost around 60% than process of “Rounf to Square”.
• It does not require to change any roller or stand for changing tube size production, only require to adjust the rollers’ position automatically by motor drive, which can save roller setting-up time ≥85%.
• It reduces the rolling load during production, which can save ≥30% energy consumption than process of “Round to Square”.
• It can save 2~3% of raw material for same size than process of “Round to Square”.
• Based on the Ethernet and RPCS system (Rollers Position Control System), it can realize automatically flexible adjustment of roller position for whole production line when changing the production sizes. It also largely saves the labor and reduces working power.

Technical parameters for direct square tube mill

VZHF Type Direct Forming Technology Tube Mill Specifications for Big Sizes

VZHJ Type Direct Forming Technology Tube Mill Specifications for Small Sizes

VZHJ Type Direct Forming Technology Tube Mill Specifications for Rectangular
