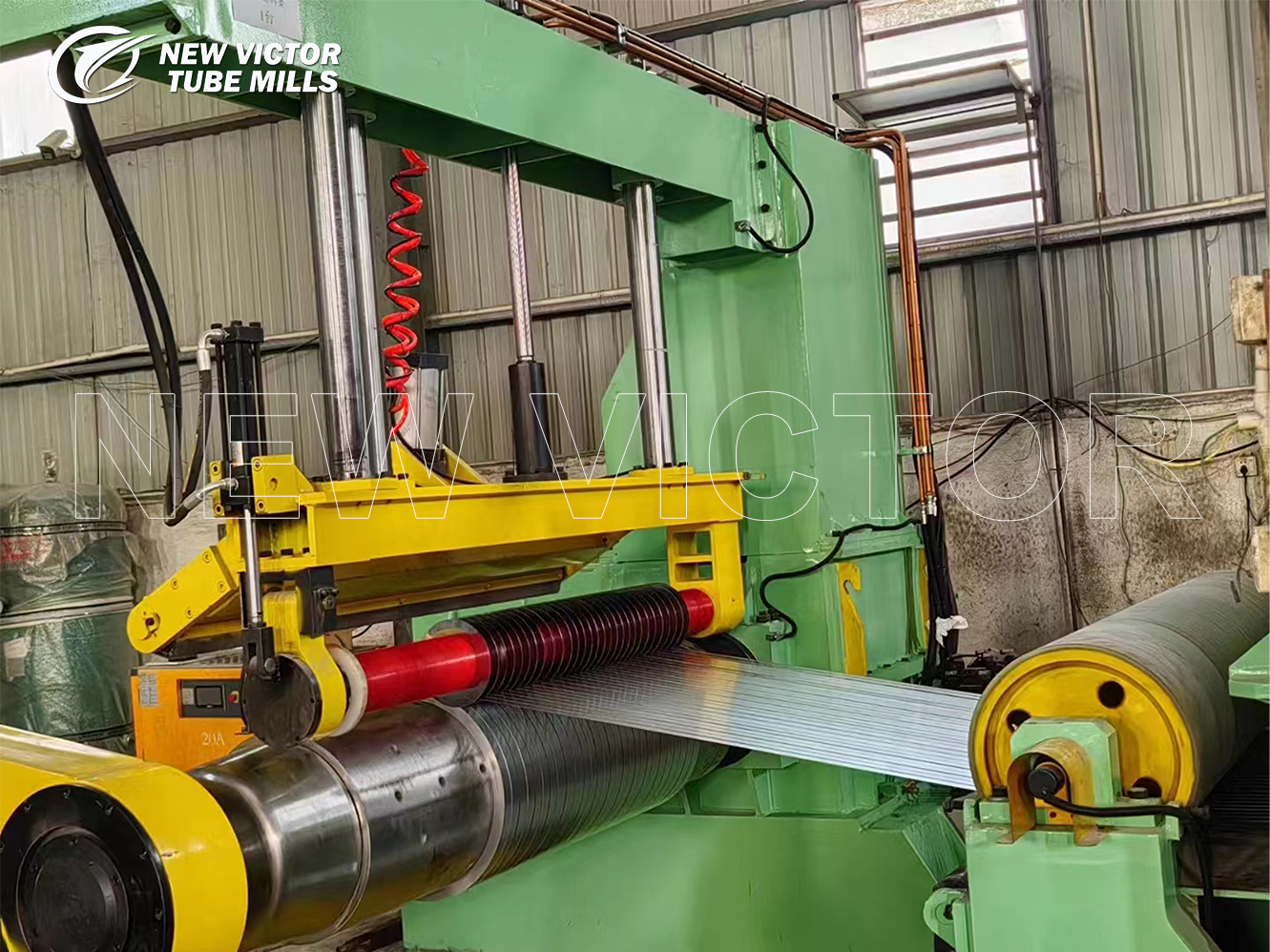

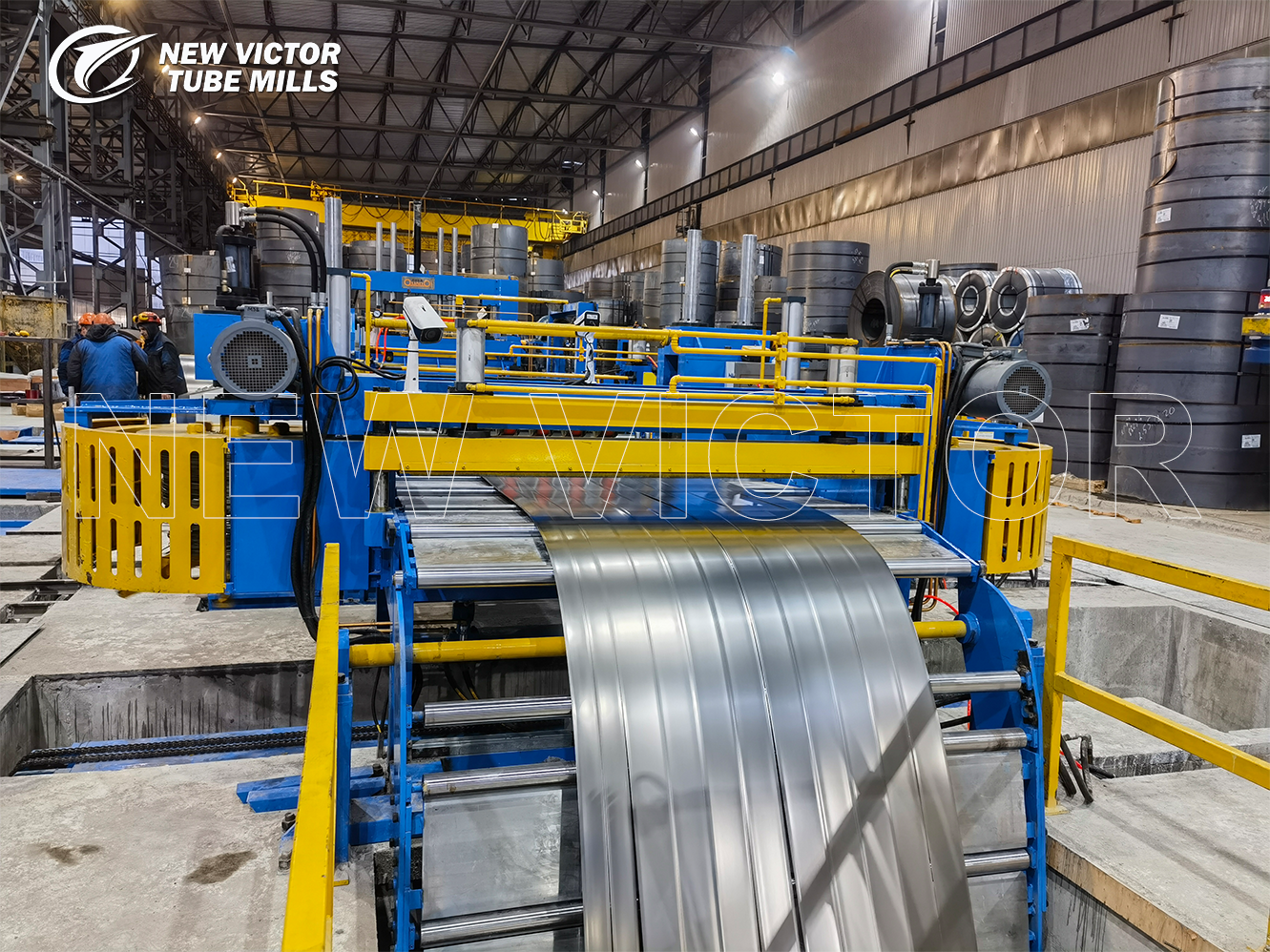

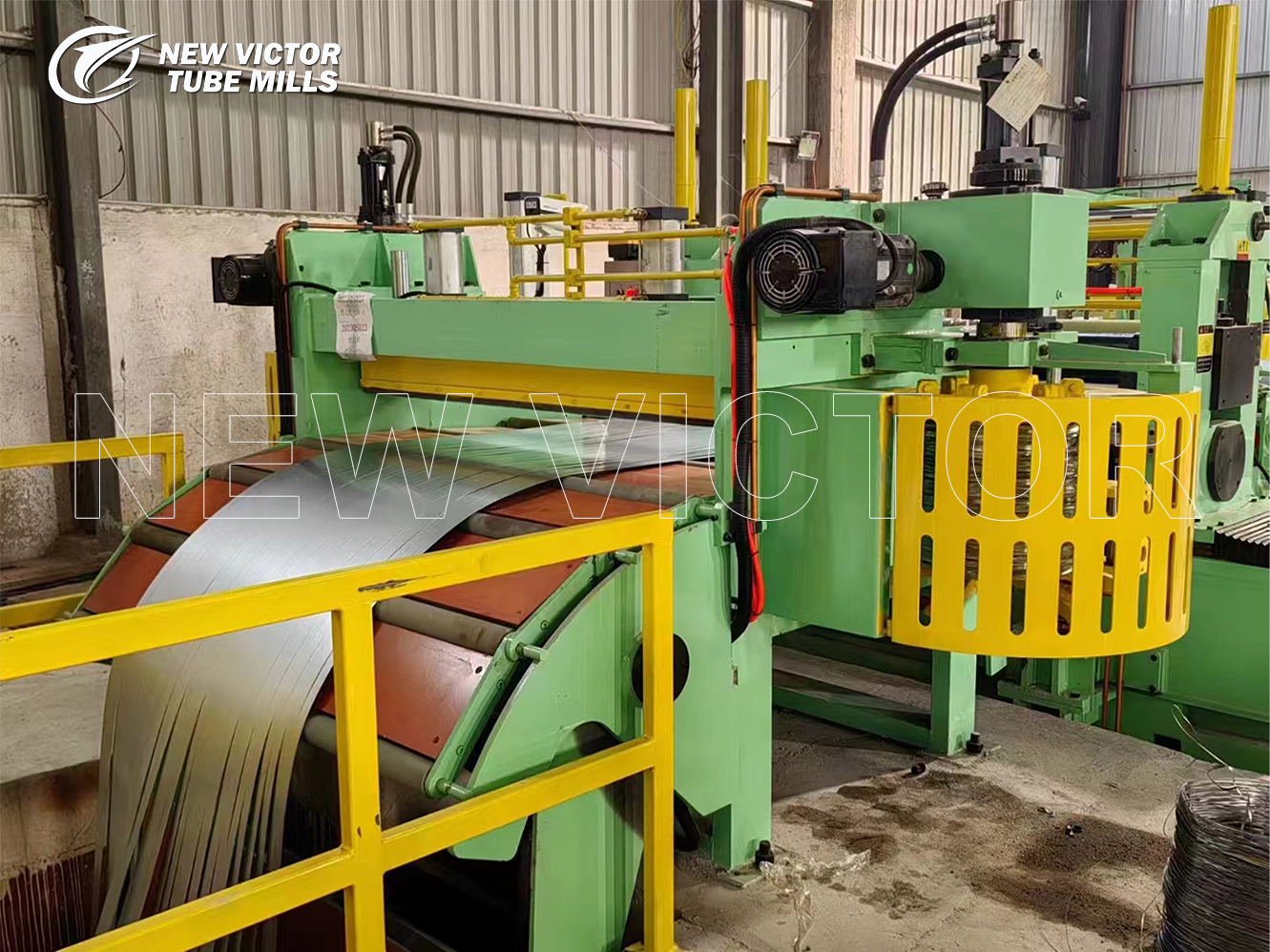

Slitter Machine Steel Coil Slitting Machine
Slitting machine is a kind of efficient processing equipment to slit wide-width coils (such as steel coil, stainless steel coil, aluminum coil, etc.) into multiple narrow-width strips according to predetermined specifications.
It is widely used in metal processing, welded pipe production, automobile manufacturing, construction materials and other industries.
Features
| our | others | |
| Raw material choosing | Bao steel plate | small steel factory defective steel plate |
| Coil car surranding safety protection | equipment with protection cover to anti-fall | have big pit, operator fall if carelessness or wrong walking |
| One key auto feeding coil to decoiler shaft | sensor in decoiler arm | no sensor in decoiler |
| Decoiler structure and gear box | use heavy frame, and gear box type transmission | use chain type transmission and light frame |
| Decoiler auto greasing system | has separate auto pump greasing for decoiler | not have |
| Decoiler main shaft and 4 PCS leaves | 35CrMo 4 PCS leaves: #55 steel, both are forged cast steel | 40Cr, 4 PCS leaves: #45 steel, both are normal casting material, no forged |
| Decoiler main shaft copper paste | paste copper plate on the sliding wedge area to acheive longer life and less wear | don't paste any copper on the sliding wedge area |
| Decoiler main shaft and seamless drum | all forged cast steel include wedge, fix copper plate on
moving area, drum are seamless to protect thin material no mark |
weld wedge, no copper in touch area, drum are big gap easy to bring mark for thin material |
| Decoiler drum wedge support | for 1250/1300 line, we have 5 set of support wedge, For 1500/1600 line we have 6 sets of support wedge | for 1250/1300 line, have 3 set of support wedge, For 1500/1600 line we have 4 sets of support wedge |
| First loop bridge | use lift type table, the table cover with bakelite plate and Dynamically balanced rubber wheel, if strips head fall down, just lift the table, all strips are coming up, no need risk of labors come down to the pit | use cylinder type, the table cover with steel roller and no Dynamically balanced, if strips head fall down, need operator going down to the pit to take out manualy, very risky of this jobwork |
| Slitter shaft | Forged 42CrMo, slit bearing only NSK brand | 40Cr or 42CrMo, slit bearing use Chinese brand mostly |
| Slitter side houser | T600 cast steel body, Very good for high duty running and high thickness material | normal steel(Q235) welding. strength not stable and durable for high speed running (More than 100m/min) |
| Slitter strips support rack | has strips support rack, help feeding strip to slitter head | does not, need manually feeding strip to slitter head |
| Slitter rail cover,
transimision |
has rail cover to protect rail scratch or damage Shaft housing out by motor, no need worry about oil leakage if by hydro cylinder | use manual or hydro cylinder type, hdyro cylinder worry about cylinder bar damage or scratch, also leakage will stop the line running |
| Slitter shaft housing | use full body casting T600 material, it is more stable and stronger in high speed to ache ive less burr and less shaft run-out |
use weld type, the frame strength much more weaker than casting type. in high speed running, big vibration , big burr, and high run-out |
| Slitter lift device | use specical gear bar and copper gear | use steel bar and steel gear, strength is much lower than copper gear, heavy duty machine must use copper |
| Scrap winder | baller type and suspension type, Baller type easy winding even edge broken down, it can works well without stop line. Suspension type save space, also far away from operator working area, safe for their working | use chain type, week body and need operator remove edge coil out by hands, scrape are sharp, easy to get hurt |
| Tensioner | use heavy frame with first support lift, press arm lift, another two are separate shaft, four roller together easy for feeding, for wider line(width above 1600mm) we use 3 sets of hydro cylinder to give heavier strength and average pressure | use weak frame, feeding take long time due to less roller sets, operator have to stand in the loop bridge to feeding multi-strips by hands, dangers
and risky |
| Recoiler | use 6 grade gear box ratio, have bigger start power and good protect the gearbox working life, gears through Gear grinding, gear hobbing, nitriding, working smooth and low noise | use 3 or 4 grade gear, need very higher motor drive, also has weak power, gear only through grinding, no other good heat treatment, big working noise |
| Recoiler main shaft and 4 PCS leaves | cast 35CrMo, 4 PCS leaves: #55 cast steel, both are forged cast steel | 40Cr, 4 PCS leaves: #45 steel, both material not cast material |
| Recoiler main shaft copper paste | paste copper plate on the sliding wedge area to acheive
longer life and less wear |
don't paste any copper on the sliding wedge area |
| Recoiler separate rack/arm | use frame type separate device, has heavier strength and more stable for high speed running separating | use cheap arm type, body are small square pipe weld frame, easy to deviation |
| Recoiler support arm | use full close swing type, has stronger frame, stable working and anti-vibration in high speed running | use light frame, some are lift type, some are close type, but only one side weld, strength not for durable working |
| Electric system | 1, One key for auto feeding coil to decoiler main shaft from coil saddle with laser sensor detecting support 2, use real-time monitoring control system, boss can see working condition from his laptop, set special screen for monitoring only 3, Full cabinet wire out from one interface 4, full line has 3 or 4 sets of camera to provide details to monitoring system 5, parts protection level is IP 54 |
1, manual hold the remote controller to feeding to decoiler main shaft
2, not has 3, lots of wire out from cabinet,if some one problem,they have to take long time to find out that broken wire 4, no camera support 5, parts protection level is IP 52 |
